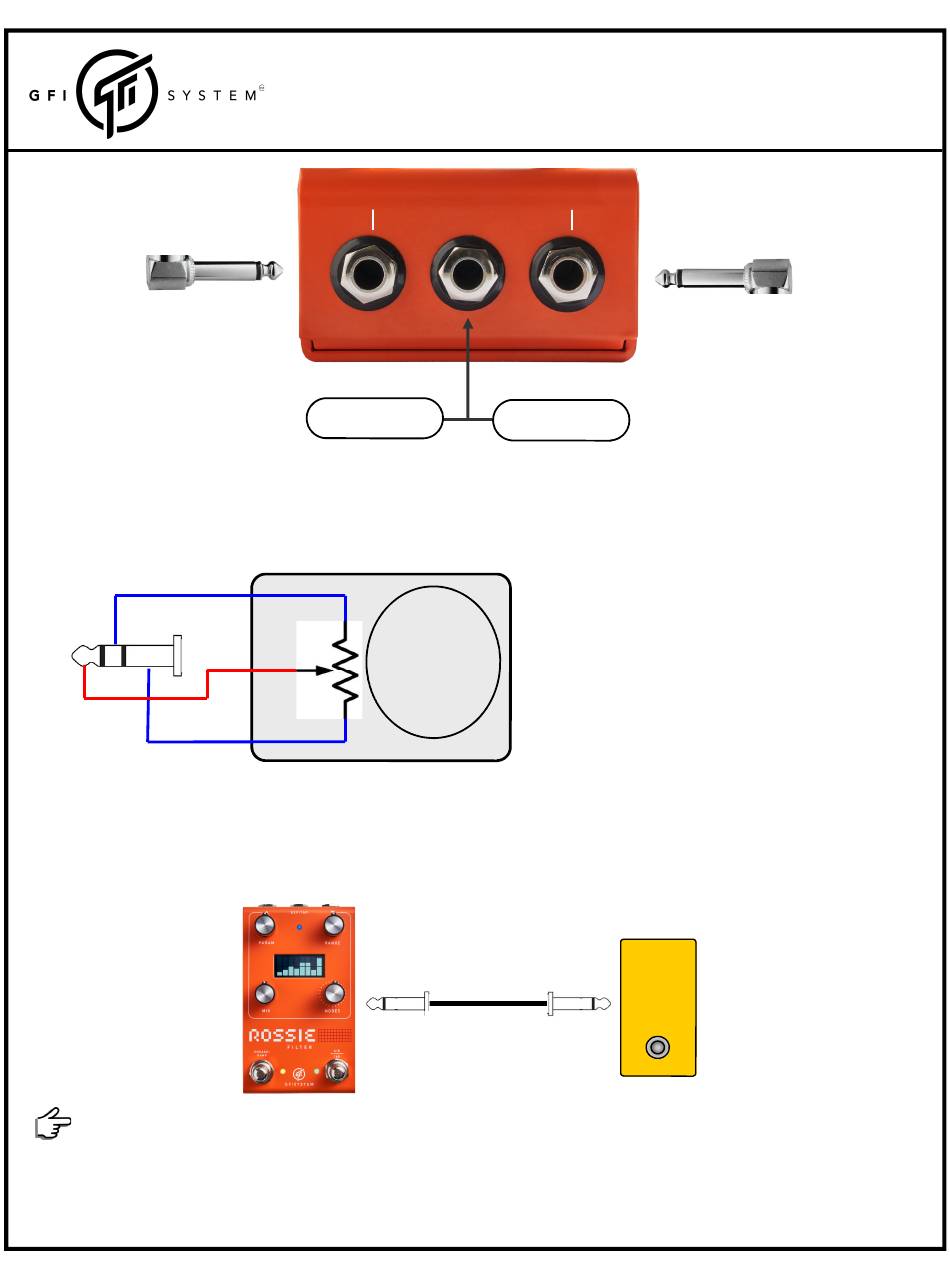

3. Expression Input

An expression pedal may be used to control any one of the primary parameters, alternatively a tap
tempo pedal may be used to remotely send tap tempo signal to the pedal.
Ring
Tip
4. Tap Tempo Input
A tap-tempo pedal may be connected to the EXP/TAP input to remotely tap in the tempo. The
switch contact must be 'Normally-Opened' (NO) type.
Auto detection
Upon power up Rossie will automatically detect the presence (or absence) of an expression
pedal or a tap-tempo pedal. Therefore, after plugging/unplugging the external gear you need
to recycle power to the Rossie to let it detect the changes.
U S E R M A N U A L
INPUT
TAP TEMPO
Resistance value
wiper
10K Ohm
to
20K Ohm
TS cable & plug
OUTPUT
EXPRESSION
Expression Pedal requirement.
Some expression pedal on the market has its
wiper connected to the Ring instead, this will
not work with Rossie. Make sure you get the
suitable type : Wiper-to-Tip.
Wiper resistance value should be 10 to 20
KOhm.
TAP
PEDAL
