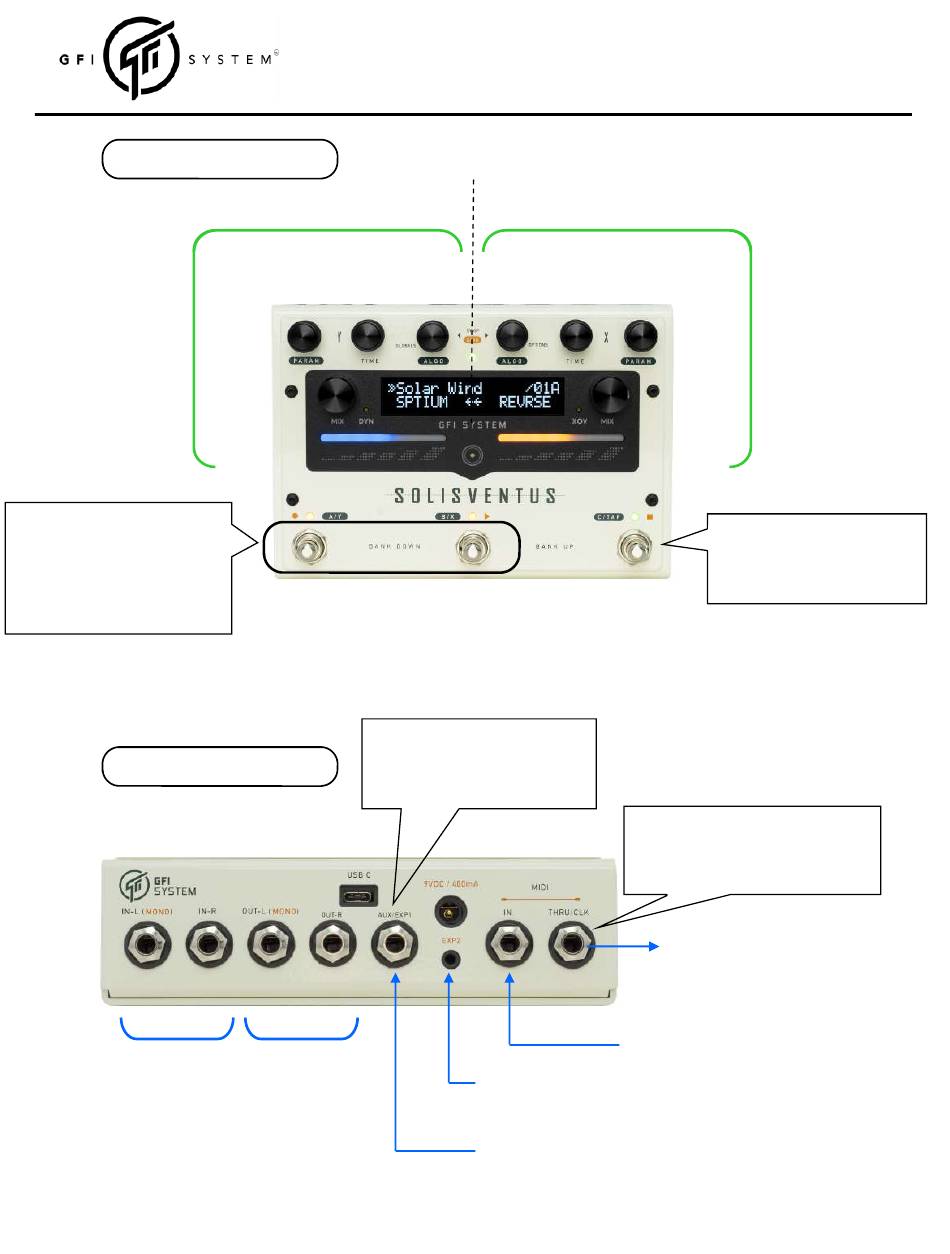

Controls overview
In Preset Mode these buttons are
used to call Patch A or Patch B.
In StompBox Mode these buttons
are used for individual control of
DSP-Y and DSP-X.
I/O and Interconnects
Inputs
(TS plug)
unbalanced
Controls for DSP-Y
Param
Time
Wet/Dry
Mix
Patch A /
DSP-Y
You can configure this port for use
with external switches (default) or
with an expression pedal. This is
done in Global Settings menu.
Outputs
(TS plug)
unbalanced
Q U I C K S TA R T
G U I D E
Controls for DSP-X
Algo
Algo
Time
Selector
Selector
Patch B /
DSP-X
Expression pedal (10K pot resistance, Tip-to-Wiper).
Control Voltage (5V or 10V range).
Expression pedal (10K pot resistance, Tip-to-Wiper)
Aux switches (1, 2, or 3 buttons), Normally-Opened, Momentary.
1
SOLIS VENTUS
Param
Wet/Dry
Mix
You can configure this button for
Patch C call or for Tap Tempo.
This is done in the Global Settings
menu.
Patch C /
Tap-Tempo
You can configure the MIDI output as a
MIDI Thru (default) or as a MIDI Clock
source. This is done in Global Settings
menu.
To other MIDI (receiving) device.
From other MIDI (transmitting) device.
