PRODUCT NO.
BASE MODEL NO.
FRS28ZRGD2
FRS28ZRG
FRS28ZRGD3
FRS28ZRG
FRS28ZRGW2
FRS28ZRG
FRS28ZRGW3
FRS28ZRG
MARKET
North America
WIRING DIAGRAM - # 218875901
OWNER'S GUIDE - # 218854700
SERVICE DATA SHEET - # 218877000
101 Masters Blvd.
Anderson, SC 29624

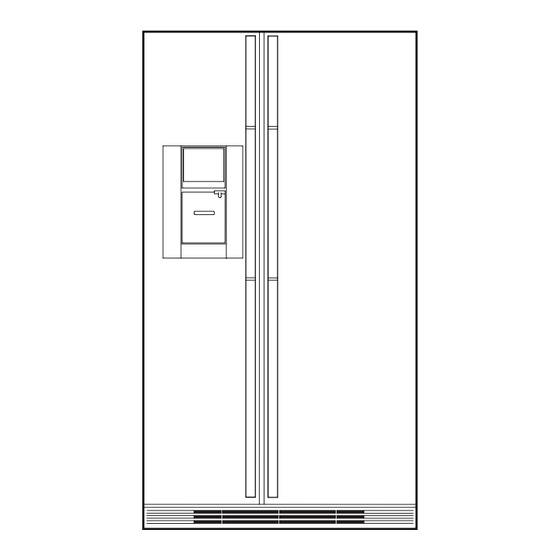

FACTORY PARTS CATALOG
SERIES
COLOR
R134a
almond
R134a
almond
R134a
white
R134a
white
Publication No.
5995320081
990324
-EN/SERVICE /ECL
357

SIDE BY SIDE

REFRIGERATOR
VOLTS
115
115
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS28ZRG
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS28ZRG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS28ZRG

Summary of Contents for Frigidaire FRS28ZRG

  • Page 1: Side By Side

    PRODUCT NO. BASE MODEL NO. FRS28ZRGD2 FRS28ZRG FRS28ZRGD3 FRS28ZRG FRS28ZRGW2 FRS28ZRG FRS28ZRGW3 FRS28ZRG MARKET North America WIRING DIAGRAM - # 218875901 OWNER’S GUIDE - # 218854700 SERVICE DATA SHEET - # 218877000 101 Masters Blvd. Anderson, SC 29624 FACTORY PARTS CATALOG...

  • Page 2: Freezer Door

    Publication No. FRS26WGH 5995318861 FREEZER DOOR 03/99...
  • Page 3 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 37A* 37A* 37A* # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG FREEZER DOOR PART NO DESCRIPTION 215734315 A B - -...

  • Page 4: Refrigerator Door

    Publication No. FRS28ZRG 5995320081 REFRIGERATOR DOOR 03/99...
  • Page 5 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 37A* 37A* 37A* # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG REFRIGERATOR DOOR PART NO DESCRIPTION 215734316 A B - -...
  • Page 6 Publication No. FRS28ZRG 5995320081 CABINET 03/99...
  • Page 7 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 30A* 101* 101* # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG CABINET PART NO DESCRIPTION 5303300811 A B C D Cover-air duct...
  • Page 8 Publication No. FRS28ZRG 5995320081 SHELVES 03/99...
  • Page 9 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 100A 100B # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG SHELVES PART NO DESCRIPTION 5303298147 A B C D Trim-basket 218298003...
  • Page 10 Publication No. 5995320081 CONTROLS - REF. 83 78 03/99 FRS28ZRG CONTROLS CONTROLS - FREEZER CONTROLS - FREEZER P58T0017...
  • Page 11 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 13 # 20A* 21 # 23 # 114# # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG CONTROLS PART NO DESCRIPTION 215028605...
  • Page 12 Publication No. FRS28ZRG 5995320081 SYSTEM 03/99...
  • Page 13 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 13 # 14 # 15 # 21 # 29 # 30 # 55 # 60 # # = Fast-moving Parts * = Non-Illustrated Parts...
  • Page 14 Publication No. FRS28ZRG 5995320081 DISPENSER 03/99...
  • Page 15 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 17A* 33 # 35 # 38A# 38B# # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG DISPENSER PART NO DESCRIPTION 5318582501 A B C D Tube-water inlet,93"...

  • Page 16: Ice Container

    Publication No. FRS28ZRG 5995320081 ICE CONTAINER 03/99...
  • Page 17 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 18 # 45 # # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG ICE CONTAINER PART NO DESCRIPTION 5304404344 A B C D...

  • Page 18: Ice Maker

    Publication No. FRS28ZRG 5995320081 ICE MAKER 03/99...
  • Page 19 A = FRS28ZRG (FRS28ZRGW2) B = FRS28ZRG (FRS28ZRGW3) C = FRS28ZRG (FRS28ZRGD2) D = FRS28ZRG (FRS28ZRGD3) POS. NO 11 # 12 # 13 # 15 # 17 # 141# # = Fast-moving Parts * = Non-Illustrated Parts FRS28ZRG ICE MAKER...

  • Page 20: Wiring Schematic

    Publication No. FRS28ZRG 5995320081 WIRING SCHEMATIC 03/99...

  • Page 21: Wiring Diagram

    FRS28ZRG Publication No. 5995320081 WIRING DIAGRAM # = Fast-moving Parts 03/99 * = Non-Illustrated Parts...
