Frigidaire FRS26ZNH Factory Parts Catalog
  1. Manuals
  2. Brands
  3. Frigidaire Manuals
  4. Refrigerator
  5. FRS26ZNH
  6. Factory parts catalog

Frigidaire FRS26ZNH Factory Parts Catalog

Side by side
Hide thumbs Also See for FRS26ZNH:

Advertisement

Table of Contents

PRODUCT NO.
BASE MODEL NO.
FRS26ZNHB3
FRS26ZNH
FRS26ZNHD3
FRS26ZNH
FRS26ZNHQ3
FRS26ZNH
FRS26ZNHW3
FRS26ZNH
MARKET
North America
WIRING DIAGRAM - # 218903201
OWNER'S GUIDE - # 218954000
SERVICE DATA SHEET - # 218909400
101 Masters Blvd.
Anderson, SC 29624
FACTORY PARTS CATALOG
SERIES
COLOR
R134a
black
R134a
almond
R134a
bisque
R134a
white
Publication No.
5995338091
000518
-EN/SERVICE /DJH
357

SIDE BY SIDE

REFRIGERATOR
VOLTS
115
115
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26ZNH
©2000 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS26ZNH and is the answer not in the manual?

Questions and answers

Related Manuals for Frigidaire FRS26ZNH

Summary of Contents for Frigidaire FRS26ZNH

  • Page 1: Side By Side

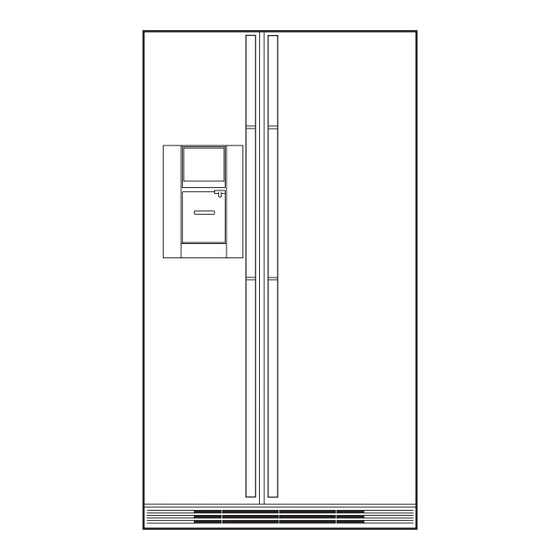

    FACTORY PARTS CATALOG SIDE BY SIDE REFRIGERATOR PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRS26ZNHB3 FRS26ZNH R134a black FRS26ZNHD3 FRS26ZNH R134a almond FRS26ZNHQ3 FRS26ZNH R134a bisque FRS26ZNHW3 FRS26ZNH R134a white MARKET North America WIRING DIAGRAM - # 218903201 OWNER’S GUIDE - # 218954000 SERVICE DATA SHEET - # 218909400 SIDE BY SIDE REFRIGERATOR...

  • Page 2: Freezer Door

    Publication No. FRS26ZNH 5995338091 FREEZER DOOR 5/00...
  • Page 3 FRS26ZNH Publication No. 5995338091 FREEZER DOOR A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 215734313 A B - D Gasket-frzr door,white ,magnetic 215734323 - - C - Gasket-frzr door,black ,magnetic 5303288950 A B C D...

  • Page 4: Refrigerator Door

    Publication No. FRS26ZNH 5995338091 REFRIGERATOR DOOR 5/00...
  • Page 5 FRS26ZNH Publication No. 5995338091 REFRIGERATOR DOOR A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 215734314 A B - D Gasket-refr door,white ,magnetic 215734324 - - C - Gasket-refr door,black ,magnetic 215403201 A B C D...
  • Page 6 Publication No. FRS26ZNH 5995338091 CABINET 5/00...
  • Page 7 FRS26ZNH Publication No. 5995338091 CABINET A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 215637602 A B C D Cover-air duct 5303209814 A B C D Nut,"U" type ,8-15A ,fan mtr mtg 215637401 A B C D Cover-evap coil,lower...
  • Page 8 Publication No. FRS26ZNH 5995338091 CABINET 5/00...
  • Page 9 FRS26ZNH Publication No. 5995338091 CABINET A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 215022602 A B C D Seal-foam 5303322647 A B C D Tape-foam 218770000 A B C D Deflector-air,air duct cover 5303001479 A B C D...
  • Page 10 Publication No. FRS26ZNH 5995338091 SHELVES 5/00...
  • Page 11 FRS26ZNH Publication No. 5995338091 SHELVES A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 5303298147 A B C D Trim-basket 218298003 A B C D Shelf-freezer,sliding ,wire 218159700 A B C D Spacer-shelf 5304405879...
  • Page 12 Publication No. FRS26ZNH 5995338091 CONTROLS 5/00...
  • Page 13 FRS26ZNH Publication No. 5995338091 CONTROLS A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 215028605 A B C D Knob-damper control 5308000010 A B C D Fan Blade,red 5308000124 A B C D Ring-fan orifice...
  • Page 14 Publication No. FRS26ZNH 5995338091 SYSTEM 5/00...
  • Page 15 FRS26ZNH Publication No. 5995338091 SYSTEM A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 218787900 A B C D Condenser 5303208866 A B C D Spacer-cond tube,black 5303289026 A B C D Spacer-tube 5304406721...
  • Page 16 Publication No. FRS26ZNH 5995338091 DISPENSER 5/00...
  • Page 17 FRS26ZNH Publication No. 5995338091 DISPENSER A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 5308010366 A B C D Tube-water inlet,0.25 OD x 93" ,plastic 218832301 A B C D Tube-water inlet,inlet valve ,to filter 218859901 A B C D...

  • Page 18: Ice Container

    Publication No. FRS26ZNH 5995338091 ICE CONTAINER 5/00...
  • Page 19 FRS26ZNH Publication No. 5995338091 ICE CONTAINER A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 5304404344 A B C D Auger-ice 5304404343 A B C D Cam-drive 218815300 A B C D Container-ice 5304404346...

  • Page 20: Ice Maker

    Publication No. FRS26ZNH 5995338091 ICE MAKER 5/00...
  • Page 21 FRS26ZNH Publication No. 5995338091 ICE MAKER A = FRS26ZNH (FRS26ZNHW3) B = FRS26ZNH (FRS26ZNHD3) C = FRS26ZNH (FRS26ZNHB3) D = FRS26ZNH (FRS26ZNHQ3) POS. NO PART NO DESCRIPTION 5308010366 A B C D Tube-water inlet,0.25 OD x 93" ,plastic 218832301 A B C D Tube-water inlet,inlet valve ,to filter 218859901 A B C D...

  • Page 22: Wiring Schematic

    Publication No. FRS26ZNH 5995338091 WIRING SCHEMATIC 5/00...

  • Page 23: Wiring Diagram

    FRS26ZNH Publication No. 5995338091 WIRING DIAGRAM # = Fast-moving Parts 5/00 * = Non-Illustrated Parts...
