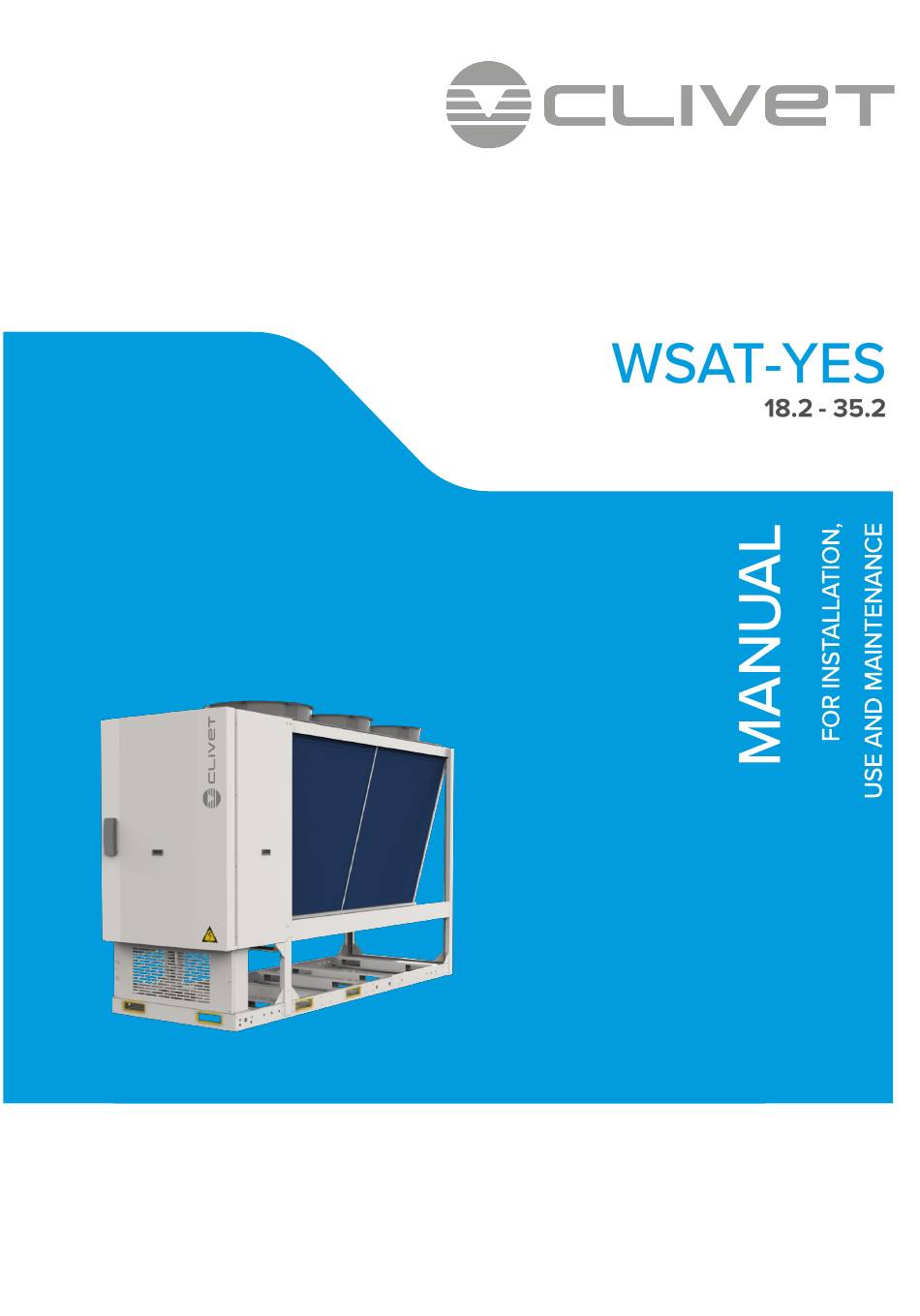

  • Page 1 M0SF00004-02 - 07/2021...
  • Page 2 Best regards and have a nice reading ! CLIVET Spa The data contained in this manual is not binding and may be changed by the manufacturer without prior notice. All reproduction, even partial, is prohibited. © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia...

  • Page 4: Safety Considerations

    1 SAFETY CONSIDERATION S Saftey Operate in compliance with safety regulations in force . Use single protection devices: gloves, glasses, helmet etc. Manual Pay particular attention to: The manual provides correct unit installation, use and maintenance.  warnings / prohibitions / danger indicating particularly important It is advisable to read it carefully so you will save time during operations or information, operations...

  • Page 5: User Training

    Modification All unit modifications will end the warranty coverage and the manufacturer responsibility. Breakdown/Malfunction Disable the unit immediately in case of breakdown or malfunction. Contact a certified service agent. Use original spares parts only. Using the unit in case of breakdown or malfunction: voids the warranty ...

  • Page 6: Unit Identification

    Unit identification The serial number label is positioned on the unit and allows to indentify all the unit features. The matriculation plate shows the indications foreseen by the standards, in particular: unit type  serial number (12 characters)  year of manufacture ...

  • Page 7: Before Installation

    2 BEFORE INSTALLATION Reception Before any work read: You have to check before accepting the delivery:  Chapter. MAINTENANCE SAFETY That the unit hasn’t been damaged during transport  WARNINGS FOR OPERATIONS ON That the materials delivered correspond with that indicated on ...
  • Page 8 3 HANDLING Do not get on the unit  Check that all handling equipment complies with local safety regulations (cran, forklifts, ropes, hooks, etc.).  Provide personnel with personal protective equipment suitable for the situation, such as helmet, gloves, accident-prevention shoes, etc.
  • Page 9 4 SCELTA DEL LUOGO DI INSTALLAZIONE 3 SELECTING THE INSTAL LATION SITE Positioning  Installation must be in accordance with local regulations. If they do not exist, follow EN378 . During positioning consider these elements: customer approval  unit weight and bearing point capacity ...
  • Page 10 Avoid therefore: obstacles to the airflow  exchange difficulties  leaves or other foreign bodies that can obstruct the exchange  batteries winds that hinder or favour the airflow  heat or pollution sources close to the unit (chimneys,  extractors etc) stratification (cold air that stagnates at the bottom) ...

  • Page 11: Anti-Vibration Mounts

    Anti-vibration mounts Option Size 18.2 - 20.2 25.2 - 35.2 support points Configuration standard with storage tank standard with storage tank KIT PE PESM00003 PESM00004 PEST00003 PEST00004 W1 (code) PAF 11 SPEC PAF 13 SPEC PAF 14 SPEC PAF 22 SPEC PAF 11 SPEC PAF 13 SPEC PAF 90 SPEC...
  • Page 12 Protection grilles Option PESM00007 PESM00008...

  • Page 13: Water Connection

    5 WATER CONNECTION Hydraulic system The pipes must be designed and manufactured to limit pressure drops as much as possible, i.e. optimise performance of the system. Keep the following to a minimum: overall length  The warranty does not cover damages caused by limestone number of bends ...

  • Page 14: Water Flow-Rate

    Minimum water flow Water flow-rate The design water flow-rate must be:  inside the exchanger operating limits guaranteed also with variable system conditions (for example,  in systems where some circuits are bypassed in particular situations) If the system capacity is below the minimum flow, bypass the system as indicated in the diagram.

  • Page 15: Water Filter

    Risk of freeze If the unit or the relative water connections can be subject to temperatures close to 0°C: Mix water with ethylene glycol, or  The unit must always be protected Safeguard the pipes with heating cables placed under the ...

  • Page 16: Standard Unit

    User side connection Standard unit Unit + pump Unit + storage tank 9 pressure relief valve 1 exchanger 10 storage tank 2 antifreeze heater 11 shut-off valves 3 water temperature probe 12 filter 4 drain 13 flexible couplings 5 water flow switch 14 piping supports 6 vent 15 exchanger chemical cleaning bypass...

  • Page 17: Water Connections

    (diagram on previous page) fill and drain the system several times. A+B: fornito da Clivet - Clivet supplied 4 Apply additives to prevent corrosion, fouling, formation of A + B :...
  • Page 18 Unit in modular configuration Maximum 16 total units.  Maximum 4 units in the same water branch.  The modular system is controlled by the MASTER unit  (address=0), → Electrical connections All units must be electrically connected to each other con ...
  • Page 19 Spacers Option A + A , A + B B + B Togliere le cornici di protezione gialle Usare i 4 fori predisposti per il sollevamento e usare i 4 fori per per fissare il distanziale fissare il distanziale Use prepared holes Remove yellow lift frame and use holes to fix spacer to fix spacer...

  • Page 20: Electrical Connections

    6 ELECTRICAL CONNECTIO NS The characteristics of the electrical lines must be determined by specialized personnel able to design electrical installations; moreover, the lines must be in conformity with regulations in force. The protection devices of the unit power line must be able to stop the presumed short circuit current, whose value must be determined in function of system features.

  • Page 21: Power Input

    Signals / data lines Do not overpass the maximum power allowed, which varies, according to the type of signal. Lay the cables far from power cables or cables having a different tension and that are able to emit electromagnetic disturbances. Do not lay the cable near devices which can generate electromagnetic interferences.
  • Page 23 Remote control of the unit (without PEND00017 Remote interface module for REMAUX auxiliary controls) With S5_3 ON, the unit is controlled remotely. Wired controller disabled. ON/OFF state: controlled by the On/Off input input ON = unit ON With the units in modular configuration, remote control must be applied to the master unit, which transmits it to the slave units.
  • Page 24 Modular configuration - Controller wiring...
  • Page 25 MODBUS The modbus in reading is always enabled. It is possible to read 1 register at a time. To enable it for writing: Function code set register 138 to 1, or reading set on the controller Project Menu → Controller select → Modbus = Yes single register writing Communication spec: RS-485 multiple register writing...
  • Page 26 Unit in modular configuration Reading register Adress function note 240+(Address)*100 Running mode 1 shutdown , 2 cooling 241+(Address)*100 SILENT mode 1 Standard, 2 Silent, 3 Super silent 242+(Address)*100 Setpoint 1℃ 243+(Address)*100 Setpoint B 1℃ 244+(Address)*100 Unit inlet water temperature Twi 1℃...
  • Page 27 Status query register Register Address Dati Note Compressor status Fan status Pump status reserved reserved reserved Defrosting Antifreeze electric heater Remote control SILENT mode Standard, silent, super silent reserved Alarm signals Unit group status 1: modular unit 0: single unit...
  • Page 28 NeIn the BMS reading, register 272, 273 displays one of the follow “error codes” in decimal format, only considering the BYTE LOW. Only consider the last two alphanumeric digits of the code. Fault Code Fault Number (dec) Fault Code Fault Number (dec) Fault Code Fault Number (dec) Fault Code...
  • Page 29 7 START-UP General The electrical, water connections and the other system works are by the installer. Agree upon in advance the start-up data with the service centre. Agree upon in advance the star-up data with the service centre. For details, refer to the various chapters in the manual. Before checking, please verify the following: the unit should be installed properly and in conformity with ...

  • Page 30: Preliminary Checks

    Preliminary checks Unit OFF power supply Yes / No safe access suitable frame to withstand unit weight + people weight functional clearances air flow: correct return and supply (no bypass, no stratification) considered level to be reachable by snow considered main winds lack of chimneys/corrosive atmospheres/pollutants structure integrity fans run freely...

  • Page 31: Start-Up Sequence

    Start-up sequence Unit power supply ON Before powering the unit carry out a leak test with suitable instrumentation Yes / No compressor carter resistances operating at least since 8 hours off-load voltage measure phase sequence check pump manual start-up and flow check refrigeration circuit shut-off valves opening (if applicable) unit ON load voltage measure...

  • Page 32: Cooling Circuit

    Cooling circuit 1 Visually inspect the refrigerating circuit: the presence of oil stains can by a symptom of leakage (caused e.g. by transportation, handling or other). 2 Verify that the refrigerating circuit is in pressure: Using the unit manometers, if present, or service manometers. 3 Make sure that all the service outlets are closed with proper caps;...

  • Page 33: Remote Controls

    Compressor casing resistances Connect the compressor oil heating resistances at least 8 hours before the compressor is to be started: at the first unit start-up  after each prolonged period of inactivity  1 Power the heaters. 2 Check the power consumption of the resistances to make sure that they are functioning.
  • Page 34 Check evaporator water flow rate Check that the difference between the temperature of exchanger return and supply water corresponds to power according to this formula: unit cooling power (kW) x 860 = Dt (°C) x flow rate (L/h). The cooling power is shown in the table of the GENERAL TECHNICAL DATA included in this manual, referred to specific conditions, or in the tables on cooling PERFORMANCE in the TECHNICAL BULLETIN referred to various...

  • Page 35: Start-Up Report

    If the compressor breaks down due to operating in the above- mentioned conditions, the warranty shall no longer be valid and CLIVET spa shall not accept any liability. Periodically check the average operating times and frequency of compressor start-ups: indicatively the minimum thermal load must be such as to require a compressor to operate for at least ten minutes.
  • Page 36 8 CONTROL UNLOCK To lockout / unlock. To modify current setpoint ▲▼ MENU To open the various menus from the HOME screen. To move the cursor, change the selection or change the set value. ▲▼ ◄ ► The parameter can be quickly changed with a long press. To confirm an operation.
  • Page 37 Mode : cooling Controller off Weekly timer active Compressor use value Compressor in operation. Fan use value Fan in operation Pump in operation Auxiliary electric heater in operation. Manual antifreeze or defrosting in operation Remote control: the unit is set from the keypad to be controlled by a remote terminal or by a remote switch SILENT Mode.
  • Page 38 In general: to adjust the values, scroll through the lists ▲▼ Press to select ◄ ► Press Press OK to go to the next menu Press BACK to go to the previous menu Unlock/lock To lockout the screen, press UNLOCK for 3 sec. Switch-on/off Press ON/OFF to switch-on/off Set MODE and TEMPERATURE...
  • Page 39 USER MENU - QUERY Only if multiple units are connected to the network Per visualizzare dati delle unità in rete: Press MENU Press to select QUERY ▲▼ Press to select the unit’s address ▲▼ Press OK If STATE QUERY is selected: the unit’s address is shown at top right (only for units in modular configuration) If STATE QUERY is selected: USER MENU - TIMER...
  • Page 40 TIMER menu - DAILY TIMER Press ON/OFF when the cursor is over the word ACT Press to select the starting time, the end time and the ◄ ► mode Press to set the time, mode, temperature. ▲▼ Press OK to confirm If two time bands overlap by mistake, the last one in the list is activated (OFF in the figure) TIMER menu - WEEKLY TIMER...
  • Page 41 USER menu - DOPPIO SETPOINT Press to ENABLE or DISABLE. ▲▼ Abilitare il doppio setpoint Press to select the setpoint mode ◄ ► Press to adjust the parameters ▲▼ The 2nd setpoint is activated only if the “temp-switch” input on the terminal block XT2 is closed USER menu - TEMPERATURE COMPENSATION The water temperature is adjusted based on the outdoor tempe-...

  • Page 42: Troubleshooting

    9 TROUBLESHOOTING 11 compressor inverter malfunction Alarm reset: turn off and on the unit..  12 fan motor protection Before resetting an alarm identify and remove its cause. 13 water return high temperature, in cooling  Repeated resets can cause irreversible damage 14 low pressure antifreeze protection ...
  • Page 43 Error code Description troubleshooting Only the master unit controls the sensor fault, the slave unit does not control it. When the number of units in line is 2 or more, check if “Total” outlet water temperature probe Tw fault the Tw sensor is faulty or is not required. (only for master unit) When the number of units in line is 1, Tw = Two by default;...
  • Page 44 Error code Description troubleshooting At start-up the low pressure switch is bypassed for 3 minutes. low pressure If the protection intervenes 10 times in 150 minutes, turn the power off to reset it. If there is a remote control, turn the power off to reset it. total condenser output high temperature Tz Absorption is not controlled during the first 10 seconds after the compressor has started.
  • Page 45 Error code Descsription troubleshooting valve A error valve B error valve C error IPM module transmission error IPM module transmission error Se la protezione interviene 3 volte in 240 minuti, per insufficient overheating resettare è necessario togliere tensione. Fan A transmission error Fan B transmission error Fan C transmission error protection L0 or L1 intervention 3 times in 60...
  • Page 46 STATUSES DISPLAY Press UP on the main sheet Standby: unit address (88 to the left) + online number (88 to the right) DSP1 On: frequency DSP2 0.xx unit address 1.xx high pressure 2.xx number of units 3.xx T4 correction 4.xx Mode (8: Off;...
  • Page 47 34.xx DC voltage A (reserved) 35.xx DC voltage B (reserved) frequency limit (0 = None; 1 = T4 ; 2 = pressure; 3 = drain; 4 = low pressure ratio; 5 = Real-time ; 6 = Current frequency ; 7: = voltage ; 8: Adjustment of energy 36.xx requirement of pressure ratio ;...

  • Page 48: Maintenance

    10 MAINTENANCE SAFETY WARNINGS FOR OPERATIONS ON UNITS CONTAINING R32 Area checks Before working on systems containing flammable refrigerants, perform safety checks to reduce the risk of combustion to the minimum. Before performing any reparation operations on the cooling system, comply with the following warnings.
  • Page 49 containing refrigerant, unless they are manufactured with material intrinsically resistant to corrosion or suitably protected against corrosion. Electrical device checks The reparation and maintenance of electric components must include initial safety checks and component inspection procedures. In case of a fault that compromises safety, do not perform any electrical connection to the circuit until said fault is suitably resolved.
  • Page 50 Leak detection fluids are suitable for most refrigerants, although using detergents containing chlorine should be avoided as this substance may react with the refrigerant and corrode copper pipes. If a leak is suspected, all open flames must be removed or switched off. If a leak is identified that requires brazing, all the refrigerant must be recovered from the system or isolated (using interception valves) in a section of the system far away from the leak.
  • Page 51 The recovery equipment and tanks comply with suitable standards.  If possible, pump the cooling system.  If it is not possible to obtain a vacuum, make sure that a collector removes the refrigerant from various  parts of the system. Before proceeding with the recovery, check that the tank is located on the scales.
  • Page 52 Saftey Operate in compliance with safety regulations in force . Use single protection devices: gloves, glasses, helmet etc. usare dispositivi di protezione: guanti, occhiali, elmetto ecc. General Maintenance must be performed by authorized centres or by qualified personnel The maintenance allows to: maintaining the unit efficient ...
  • Page 53 intervention frequency (months) Presence of corrosions Panel fixing Fan fixing coil cleaning Water filter cleaning water: quality, pH, glycol concentration check exchanger efficiency circulation pump Check of the fixing and the insulation of the power lead 10 earth cable check 11 Electric panel cleaning 12 power remote controls status 13 clamp closure, cable isolation integrity...

  • Page 54: Standby Mode

    Unit booklet Foresee a unit schedule to keep trace of the interventions made on the unit. In this way, it will be easier to adequately schedule the various interventions and facilitate any troubleshooting. On the schedule note: date  intervention description ...
  • Page 55 Compressor casing heater Check: closure  Operation  Water side heat exchanger The exchanger must to be able to provide the maximum thermal exchange, therefore it is essential for the inner surfaces to be clean of dirt and build-up. Periodically check the difference between the temperature of the supply water and the condensation temperature: if the difference is greater than 8°C–10°C it is advisable to clean the exchanger.
  • Page 56 Air coil  Accidental contact with the exchanger fins can cause cuts: wear protective gloves. The coil must allow maximum thermal exchange, therefore, the surface must be clear from dirt and scaling. It is recommended a quarterly cleaning of the coils, as the minimum.

  • Page 57: Safety Valve

    Safety valve The pressure relief valve must be replaced : if it has intervened  if there is oxidation  based on the date of manufacture, in compliance with local  regulations. Valve replacing The 3-piece joint allows the valve replacement. ...
  • Page 58 Exchanger replacement Compressor replacement Pump replacement...
  • Page 59 11 DECOMMISSIONING Disconnection WARNIN G  Before performing any operation, read the warnings found in the Maintenance chapter. Avoid leak or spills into the environment. Warning: Before disconnecting the unit, the following must be recovered, if present: Fire hazard  refrigerant gas Flammable materials ...

  • Page 60: Residual Risks

    12 RESIDUAL RISKS General In this section the most common situations are indicated,as these cannot be controlled by the manufacturer and could be a source of risk situations for people or things. Danger zone This is an area in which only an authorised operator may work. The danger zone is the area inside the unit which is accessible only with the deliberate removal of protections or parts thereof.
  • Page 61 If there is a fire the temperature of the refrigerant could reach values that in-crease the pressure to beyond the safety valve with the consequent possible projection of the refrigerant itself or explosion of the circuit parts that remain isolated by the closure of the tap. Do not remain in the vicinity of the safety valve and never leave the refriger-ating system taps closed.

  • Page 62: General Technical Data

    General technical data Performance SIZE 18.2 20.2 25.2 30.2 35.2 Radiant panels Cooling Cooling capacity (EN 14511:2018) kW 1/4 61,7 72,1 88,1 94,5 EER (EN 14511:2018) 4,30 3,96 4,44 4,28 4,02 Water flow-rate 2,95 3,44 4,21 4,51 5,14 User side exchanger pressure drops 33,4 44,7 65,2...
  • Page 63 General technical data Construction SIZE 18.2 20.2 25.2 30.2 35.2 Compressor Compressor type ROTARY INVERTER SCROLL INVERTER Refrigerant N° compressor Oil charge Refrigerant charge N° circuits User side exchanger Type of internal exchanger BPHE Water content External Section Fans Fans type BRUSHLESS DC MOTOR N°...

  • Page 64: Sound Levels

    General technical data Sound levels Standard mode Sound levels refer to units with nominal test Sound power level Sound Sound conditions. The sound pressure level refers to a distance of 1 pressure power meter from the outer surface of the unit operating in level level Size...
  • Page 65 General technical data Operating range - Cooling Size 18.2 - 20.2 - 25.2 - 30.2 - 35.2 Twu [°C] = Leaving exchanger water temperature Tae [°C] = External exchanger inlet air temperature Normal operating range Operating range where the use of ethylene glycol is mandatory in relation to the temperature of the water at the outlet of the user side exchanger Overload and control device calibrations Open...

  • Page 66: Dimensional Drawings

    Dimensional drawings Size 18.2 - 20.2 DAASF0001_REV00 Data/Date 01/04/2021 Compressor compartment Electrical panel Control keypad Power input Water inlet 2” Victaulic Water outlet 2” Victaulic Water tank** Pump** Isolating switch** Functional spaces **Optional SIZE 18.2 20.2 Lenght 2364 2364 Depth 1130 1130 Height...
  • Page 67 Dimensional drawings Size 25.2 - 30.2 - 35.2 DAASF0002_REV01 Data/Date 01/04/2021 Compressor compartment Electrical panel Control keypad Power input Water inlet 2” Victaulic Water outlet 2” Victaulic Water tank** Pump** Isolating switch** Functional spaces **Optional SIZE 25.2 30.2 35.2 Lenght 3220 3220 3220...
  • Page 68 Via Camp Lonc 25, Z.I. Villapaiera 32032 Feltre (BL) - Italy Tel. +39 0439 3131 - Fax +39 0439 313300 info@clivet.it...
