CLIVET WSAN-XIN Series Installation And Operating Manual

Air cooled heat pump for external installation
Hide thumbs
Table of Contents

Advertisement

Quick Links

operating manual
WSAN-XIN 18.2 - 45.2
Air cooled heat pump for external installation
M0M140L15-01
22-03-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSAN-XIN Series and is the answer not in the manual?

Questions and answers

Related Manuals for CLIVET WSAN-XIN Series

Summary of Contents for CLIVET WSAN-XIN Series

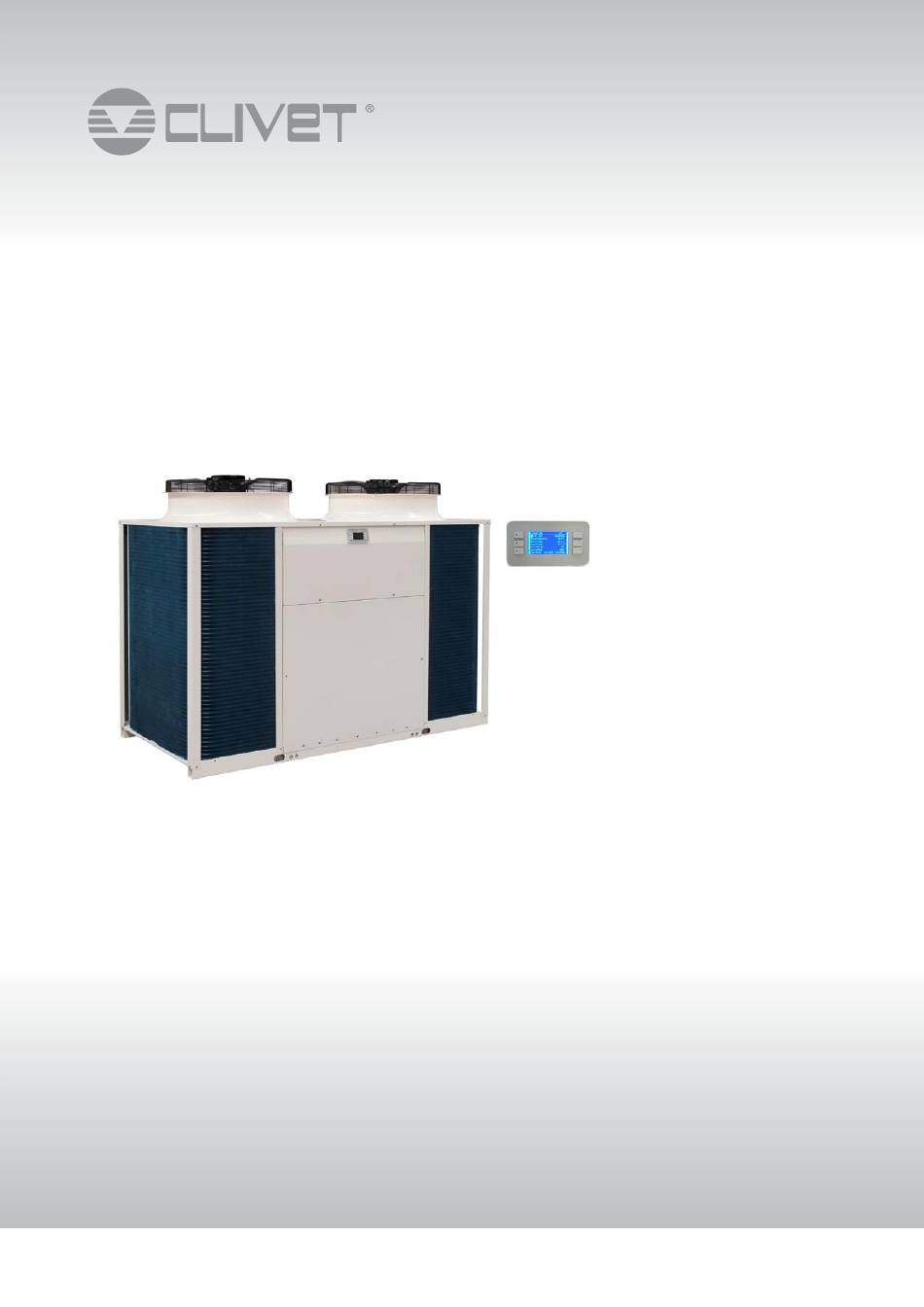

  • Page 1 Installation and operating manual WSAN-XIN 18.2 - 45.2 Air cooled heat pump for external installation M0M140L15-01 22-03-16...
  • Page 2 Yours faithfully. CLIVET Spa The data contained in this manual is not binding and may be changed by the manufacturer without prior notice. Reproduction, even is part, is FORBIDDEN © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia...

  • Page 3: Table Of Contents

    Index of contents General description Reception Positioning Water connections Electrical connections Start-up Control Maintenance Accessories Decommissioning Residual risks Technical information Dimensional drawings M0M140L15-01 WSAN-XIN 18.2-45.2...

  • Page 4: General Description

    General description 1.1 Manual The manual provides correct unit installation, use and maintenance. Pay particular attention to: Warning, identifies particularly important operations or information. Prohibited operations that must not be carried out, that compromise the operating of the unit or may cause damage to persons or things. It is advisable to read it carefully so you will save time during operations.

  • Page 5: Serial Number

    1.9 User training The installer has to train the user on: Start-up/shutdown Set points change Standby mode Maintenance What to do / what not to do in case of breakdown 1.10 Data update Continual product improvements may imply manual data changes. Visit manufacturer web site for updated data.

  • Page 6: Reception

    Reception You have to check before accepting the delivery: That the unit hasn’t been damaged during transport That the materials delivered correspond with that indicated on the transport document comparing the data with the identification label positioned on the packaging. In case of damage or anomaly: Write down on the transport document the damage you found and quote this sentence: “Conditional acceptance clear evidence of deficiencies/damages during transport”...
  • Page 7 2.3 Packaging removing Be careful not to damage the unit. Keep packing material out of children’s reach it may be dangerous. Recycle and dispose of the packaging material in conformity with local regulations. Supports for handling: remove after the handling. Remove the coil protective mesh before the start-up M0M140L15-01 WSAN-XIN 18.2-45.2...

  • Page 8: Positioning

    Positioning During positioning consider these elements: Technical spaces requested by the unit Electrical connections Water connections Spaces for air exhaust and intake 3.1 Functional spaces Functional spaces are designed to: guarantee good unit operation carry out maintenance operations protect authorized operators and exposed people Respect all functional spaces indicated in the DIMENSIONS section.

  • Page 9: Condensate Water

    3.4 AxiTop Click ! 3.5 Anti-vibration mount support For details see: 9 Accessories p. 43 3.6 Condensate water When a heat pump is running it produces a considerable amount of water due to the defrosting cycles of the external coil. The condensate must be disposed in order to avoid damages to people and things. M0M140L15-01 WSAN-XIN 18.2-45.2...

  • Page 10: Water Connections

    Water connections 4.1 Water quality Water features confirming to local regulations total hardness < 14°fr within the limits indicated by table The water quality must be checked by qualified personnel. Water with inadequate characteristics can cause: pressure drop increase reduces energy efficiency increased corrosion potential Acceptable water quality values: 7,5 ÷9,0...

  • Page 11: Hydraulic Connections

    4.6 Hydraulic connections take away the supplied connection union by acting on the connection joint weld the union to the installation pipe perform the connection between the installation pipe and the evaporator, using the joint Retirer le joint de connexion avant de souder le tuyau de l’installation. The rubber gasket might be irreparably damaged.
  • Page 12 4.10 Operation sequence Close all vent valves in the high points of the unit hydraulic circuit Close all drain valves in the low points of the unit hydraulic circuit: Heat exchangers Pumps collectors storage tank free-cooling coil Carefully wash the system with clean water: fill and drain the system several times. Apply additives to prevent corrosion, fouling, formation of mud and algae.

  • Page 13: Electrical Connections

    Electrical connections The characteristics of the electrical lines must be determined by qualified electrica personnel able to design electrical installations; moreover, the lines must be in conformity with regulations in force. The protection devices of the unit power line must be able to stop all short circuit current, the value must be determined in accordance with system features.
  • Page 14 5.5 Connections performer by customer WSAN-XIN 18.2-45.2 M0M140L15-01...
  • Page 15 5.6 Computer connection Service keypad RJ45: standard connection P.C.-not supplied P.C. connection, shift RJ45 from T-HI to T-IP Configure P.C. connect P.C. and main module with LAN cable check in the taskbar that the connection is active open Control Panel and select Network and sharing center select Modify board setting select Local area connection (LAN) select Internet protocol version 4 (TPC) IPV4 and enter Property...

  • Page 16: Remote Control

    5.7 Remote control Option Distance up to 350 mt User interface Distance up to 700 mt B = B1 KNX bus, max 350 mt twisted pair with shield, ø 0,8 mm EIB/KNX cable marking recommende PSX - Mains power supply unit pwer supply unit N125/11 5WG1 125-1AB11 AC 120...230V, 50...60Hz KNX bus, max 350 mt...
  • Page 17 5.8 Modbus - RS485 Option LED BSP communication with AP1 module LED BUS communication with Modbus green communication ok green communication ok yellow software ok but communication with AP1 yellow startup / channel not communicating down flashing: software error communication down fixed: hardware error A.
  • Page 18 5.9 LonWorks Option LED BSP communication with AP1 module LED BUS communication with LonWorks green communication ok green ready for communication yellow software ok but communication with AP1 yellow startup down flashing: software error flashing: communicating not possible fixed: hardware error communication down 5.10 BACnet IP Option...

  • Page 19: Start-Up

    Start-up 6.1 General description The indicated operations should be done by qualified technician with specific training on the product. Upon request, the service centres performing the start-up. Agree upon in advance the star-up data with the service centre. The electrical, water connections and the other system works are by the installer. 6.2 Preliminary checks For details refer to the different manual sections.

  • Page 20: Refrigeration Circuit

    6.4 Refrigeration circuit Check carefully the refrigerating circuit: the presence of oil stains can mean leakage caused by transportation, movements or other). Verify that the refrigerating circuit is in pressure: Using the unit manometers, if present, or service manometers. Make sure that all the service outlets are closed with proper caps; if caps are not present a leak of refrigerant can be possible. Open the valves of the refrigerant circuit, if there are any.
  • Page 21 6.9 Voltages Check that the air and water temperatures are within in the operating limits. Start-up the unit. With unit operating in stable conditions, check: Voltage Total absorption of the unit Absorption of the single electric loads 6.10 Demand limit Menu accessible only after having entered the password.
  • Page 22 6.11 Climatic TExt Menu accessible only after having entered the password. Access reserved only to specifically trained personnel. The parameter modification can cause irreversible damages. The setpoint defined by the temperature curve is shown at status S0052: ActualUtSetp Only if P0036: EnCompExt ≠ 0 Path: Main Menu / Unit parameters / TExt Correction config Example Step Display...
  • Page 23 6.12 Water reset Menu accessible only after having entered the password. Access reserved only to specifically trained personnel. The parameter modification can cause irreversible damages. The water reset correction affects the setpoint defined by the Climate curve TExt (actual setpoint). The setpoint is shown at status S0052: ActualUtSetp Only if P0003: En WaterReset ≠...
  • Page 24 6.13 ECOSHARE function for the automatic management of a group of units Max 7 units Maximum length of the bus line: 700 m. Maximum distance between 2 units: 300 m Type of cable: shielded twisted pair cable Ø 0,8 mm. use an EIB/KNX cable Possible connections: Tree, star, in/out bus, mixed It is not possible to use a ring connection No end-of-line resistor or terminator required...
  • Page 25 If there are more units connected in a local network set the mode of operation. MODE A Every unit manages its own compressors according to the setpoint. Every unit optimizes its refrigeration circuits. Pumps always active, even with compressor stoped. P0658 = 0 P0657 >...
  • Page 26 The above-described operating conditions must be considered outside the operating limits. In the event of compressor breakdown, due to operating in the above-mentioned conditions, the guarantee will not be valid and Clivet spa declines any responsibility.

  • Page 27: Control

    Control 7.1 Led INFO Not used ALARM Blink / fixed = alarm present CANCEL not used currently Heat: Heating (not used) 7.2 Display Ref. Variable Description Date - Time ActualSetPoint Temperature setting T.InH2OUtilitySide Water inlet temperature utility side T.OutH2OUtilitySide Water outlet temperature utility side ActualState On / off / eco / pmp On Cool: water cooling...
  • Page 28 7.4 Change unit state Step Display Action Menu/Variable Keys Notes Press Main menu Select Cmd Local state OFF - ECO - ON - Pump On Confirm Exit * Local state ECO: recurrent pump ON-OFF; compressors keep water system at setpoint ECO Pmp ON: pump ON, compressor OFF 7.5 Change the mode Step Display...
  • Page 29 7.7 Scheduler It is possible to set 6 events (Off, Eco, On, Recirculating) for each week day. Step Display Action Menu/Variable Keys Notes Press Main menu Select Scheduler Scheduler Select Select Time Event time Confirm Select Value On/Eco.. Confirm Exit Enable Scheduler Step Display Action...
  • Page 30 SOURCE STATA GENERAL STATA CIRCUIT 1 STATA USER-SIDE STATA...
  • Page 31 DIGITAL INPUT ANALOGIC INPUT...
  • Page 32 OUTPUT ANALOGICI ANALOGIC OUTPUT...
  • Page 33 7.9 Keyboard settings Step Display Action Menu/Variable Keys Notes Press 3 sec. Press HMI Settings Select Press Press Select Local connections 7.10 Alarms Before resetting an alarm identify and remove its cause. Repeated resets can cause irreversible damage. Example: + eE0001: Phase monitor: Fault = active alarm - EE0003: Pum 1 faulty: Ok = resetted alarm Display of alarm: step 1-3 Reset allarm: step 4-10...
  • Page 34 7.11 General list of alarms ELECTRICAL CIRCUIT ALARMS Name Description Category eE0001 Phase monitor Phase monitor fault Central EE0003 Pump 1 faulty User side pump 1 overload protection GP Ut EE0004 Pump 2 faulty User side pump 2 overload protection GP Ut EE0005 Pump 3 faulty...
  • Page 35 ELECTRICAL CIRCUIT ALARMS Name Description Category ee0104 TimeOutModPOL965 POL965 module disconnected HW TimeOut ee0105 TimeOutModPOL94U POL94U module disconnected HW TimeOut ee0106 TimeOutModPOL94U_2 POL94U module disconnected HW TimeOut ee0107 TimeOutModPOL985 POL985 module disconnected HW TimeOut ee1001 T.Suction Gas Gas temperature probe 3 fault HW Circuit 1 ee1002 T.Suction Gas...
  • Page 36 ELECTRICAL CIRCUIT ALARMS Name Description Category ee1058 Alarm Inverter 2 Inverter 2 in alarm Inverter DFS ee1059 Alarm missing comunication inv2 Inverter 2 Modbus communication error Inverter DFS ee1060 Timeout comunication inv2 Inverter 2 communication timeout Inverter DFS ee1061 Alarm Inverter 3 Inverter 3 in alarm Inverter DFS ee1062...
  • Page 37 ELECTRICAL CIRCUIT ALARMS Name Description Category ee2043 Alarm Inverter 3 Inverter 3 in alarm Inverter APY ee2044 Alarm missing comunication inv3 Inverter 3 Modbus communication error Inverter APY ee2045 Timeout comunication inv3 Inverter 3 communication timeout Inverter APY EE2047 Alarm Envelop Comp1 Compressor 1 envelope alarm Circuit 2 EE2048...
  • Page 38 EFRIGERANT CIRCUIT ALARMS Name Description Category ff2005 Min overheating EEV1 Min Superheat value (user side) Circuit 2 ff2006 Min overheating EEV2 Min Superheat value (source) Circuit 2 fF2009 Low Pressure Alarm (DI) Low pressure Alarm (DI) Circuit 2 ff2010 Warning LP Cool Low pressure Pre Alarm CoolingMode Circuit 2 ff2011...

  • Page 39: Maintenance

    Maintenance 8.1 General description Maintenance must be done by authorized centres or by qualified personnel. The maintenance allows to: maintain the unit efficiency increase the life span of the equipment assemble information and data to understand the state of the unit efficiency and avoid possible damages Before checking, please verify the following: the electrical power supply line should be isolated at the beginning the unit isolator is open, locked and equipped with the suitable warning...

  • Page 40: Standby Mode

    8.3 Unit booklet It’s advisable to create a unit booklet to take notes of the unit interventions. In this way it will be easier to adequately note the various interventions and aid any troubleshooting. Report on the booklet: date intervention description carried out measures etc.

  • Page 41: Circulating Pumps

    8.6 Electric fans Check: the fans and the relative protection gridsare well fixed the fan bearings (evident by noise and anomalous vibrations) the terminal protection covers are closed and the cable holders are properly positioned 8.7 Water side exchanger It is very important for the exchanger to be able to provide the maximum thermal exchange, therefore it is essential for the inner surfaces to be clean of dirt and incrustations.
  • Page 42 8.13 Copeland scroll compressor Advanced Scroll Temperature Protection Compressor may stop Pumping With Motor Running Turn Off And Wait Until Cool May need More Than 1 Hour To Reset 8.14 Insulations Check the condition of the insulations: if necessary apply glue and and renew the seals. 8.15 System discharge evacuate the system evacuate the exchanger, use all the cocks presents...

  • Page 43: Accessories

    Accessories 9.1 Anti-vibration mount support M0M140L15-01 WSAN-XIN 18.2-45.2...
  • Page 44 9.2 PGFCX - Finned coil protection grill Grille kit Size Positioning Code PEM100003 18.2-20.2 1 - 2 2 x C22410042 4 - 5 2 x C22410043 3 - 6 2 x C22410044 PEM100004 25.2-30.2 1 - 2 2 x C22410045 4 - 5 2 x C22410062 3 - 6...
  • Page 45 9.3 VARYFLOW + 2 inverter pumps Water diagram EVPT2 = Plate evaporator 2 circuits R13 = Evaporator gropu heater user side BT1 = Probes of air return/entering water temperature BT2 = Probes of air supply/leaving water temperature VNR = Non return valves SPA1 = Differential pressure switch user water side PU = Pump user side (VARYFLOW +) VSU = Water safety valve...
  • Page 46 9.6 Unit with DHW switching valve (VACS) Water diagram EVPT2 = Plate evaporator 2 circuits R13 = Evaporator gropu heater user side BT1 = Probes of air return/entering water temperature BT2 = Probes of air supply/leaving water temperature SPA1 = Differential pressure switch user water side VSU = Water safety valve YWU = Motorized valve for DHW user side 9.7 Unit with DHW switching valve and VARYFLOW + (VACS+VARYP)
  • Page 47 9.9 Unit with DHW switching valve and two ON/OFF pumps (VACS+HYG2) Water diagram EVPT2 = Plate evaporator 2 circuits R13 = Evaporator gropu heater user side BT1 = Probes of air return/entering water temperature BT2 = Probes of air supply/leaving water temperature VNR = Non return valves SPA1 = Differential pressure switch user water side PU = Pump user side (2 ON/OFF pump)

  • Page 48: Decommissioning

    10 Decommissioning 10.1 Disconnecting Only authorised personnel must disconnect the unit. Avoid leak or spills into the environment. Before disconnecting the unit, the following must be recovered, if present: refrigerant gas anti-freeze solutions in the water circuit Awaiting dismantling and disposal, the unit can also be stored outdoors, if the electrical, cooling and water circuits of the unit have 100% integrity and are isolated, bad weather and rapid change in temperature will not result in any environmental impact.

  • Page 49: Residual Risks

    11 Residual risks General description Electric parts In this section the most common situations are indicated,as these cannot be An incomplete attachment line to the electric network or with incorrectly controlled by the manufacturer and could be a source of risk situations for sized cables and/or unsuitable protective devices can cause electric shocks, people or things.

  • Page 50: General Technical Data

    General technical data Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Cooling Cooling capacity 49,8 59,6 69,7 82,5 92,8 Compressor power input 14,5 18,1 20,5 25,6 30,4 35,0 42,2 Total power input 16,7 20,3 23,4 28,5 33,3 38,4 45,6 2,98 2,94 2,98 2,90...
  • Page 51 Technical data for specific applications Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Cooling (A35/W18) - Application: Radiant panels Cooling capacity (EN14511:2013) 67,3 79,6 92,6 Total power input (EN14511:2013) 18,4 22,5 25,6 31,9 37,1 42,6 50,8 EER (EN 14511:2013) 3,66 3,53 3,62 3,40...

  • Page 52: Sound Levels

    Sound levels Standard unit Sound power level (dB) Sound Sound pressure power level level Size Octave band (Hz) 1000 2000 4000 8000 dB(A) dB(A) 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Sound levels refer to units with full load under nominal test conditions. The sound pressure level refers to a distance of 1 meter from the outer surface of the unit operating in open field.
  • Page 53 1. Standard unit operating range at full load 2. Standard unit operating range with air flow automatic modulation 3. Unit operating range with automatic staging of the compressor capacity. Not compatible with Clivet integrated pumping unit (HYG1 - HYG2 - VARYP).

  • Page 54: Dimensional Drawings

    Dimensional drawings DABM118 2_20 2_0 Size18.2 - 20.2 23/11/2015 Water inlet user side Ø 2” Victaulic Water outlet user side Ø 2” Victaulic Water outlet DHW preparation Ø 2” Victaulic (optional) Water inlet recovery side Ø 1” 1/4 Victaulic (optional) Water outlet recovery side Ø...
  • Page 55 Dimensional drawings Size 25.2 - 30.2 DABM125 2_30 2_0 23/11/2015 Water inlet user side Ø 2” 1/2 Victaulic Water outlet user side Ø 2” 1/2 Victaulic Water outlet DHW preparation Ø 2” 1/2 Victaulic (optional) Water inlet recovery side Ø 1” 1/4 Victaulic (optional) Water outlet recovery side Ø...
  • Page 56 Dimensional drawings Size 35.2 - 45.2 DABM135.2_45 2_2 06/10/2015 Water inlet user side Ø 2” 1/2 Victaulic Water outlet user side Ø 2” 1/2 Victaulic Water outlet DHW preparation Ø 2” 1/2 Victaulic (optional) Water inlet recovery side Ø 1” 1/2 Victaulic (optional) Water outlet recovery side Ø...
  • Page 57 Page intentionally left blank...
  • Page 58 Tel. +34 91 6658280 - Fax +34 91 6657806 - info@clivet.es CLIVET GmbH Hummelsbütteler Steindamm 84, 22851 Norderstedt - Germany Tel. + 49 (0) 40 32 59 57-0 - Fax + 49 (0) 40 32 59 57-194 - info.de@clivet.com CLIVET RUSSIA Elektrozavodskaya st. 24, office 509 - 107023, Moscow, Russia Tel.
