Rudder Installation

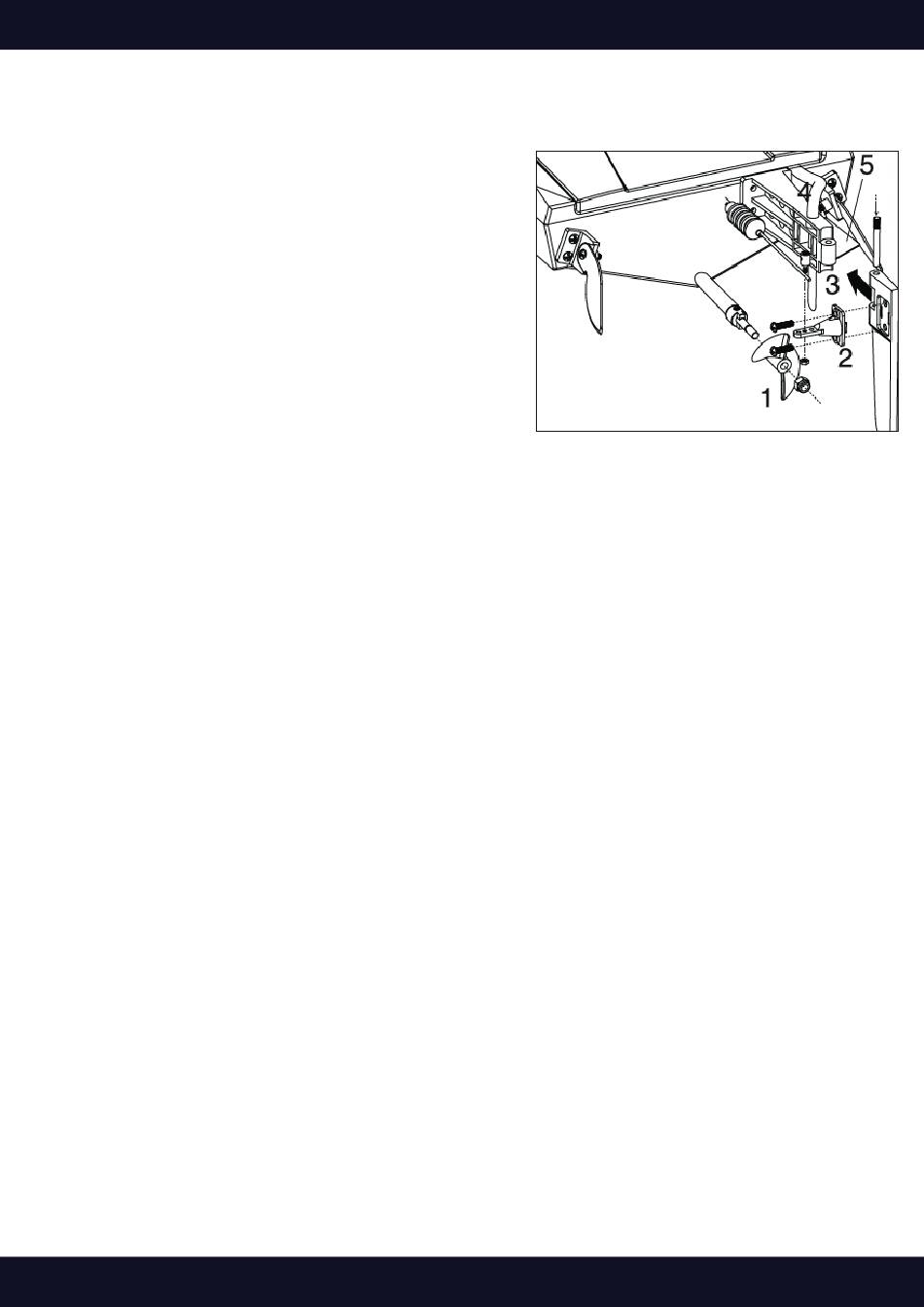

1. Align the propeller with the drive dog on the flex
shaft, then install the propeller using the included
locknut.
2. Install the rudder horn to the rudder by two screw.
3. Install the rudder to the rudder holder and fix it by
a bolt as shown in the graphic.
4. Connect the cooling line to the fitting on the top
of the rudder.
5. Ensure the trim tab panel is either perpendicular
or parallel to the bottom of the boat. If its needed
to switch the angle of the panel, tie or release the
screw which is touch the panel to switch the angle.

Check List

Before boating:
• Install fully charged batteries in your boat and transmitter.
• Connect the boat battery to ESC.
• Make sure the boat is bound to the transmitter (otherwiese use the binding instructions).
• Make sure all linkages move freely on the boat.
• Ensure the motor mount is secured to the hull so that the motor stays steady.
• Perform a Control Direction Test with the transmitter.
• Adjust the steering rate on your transmitter as needed.
• Find a safe and open boating area.
• Plan a safe boating route for the water and wind conditions.
After boating:
• Always turn off the receiver before the transmitter to maintain control and binding.
• Disconnect the battery from the receiver and remove the batteries from the boat.
• Fully dry the boat, including the water cooling lines and jackets around the motor and ESC.
Remove the hatch and radio box cover before storing your loat.
• Repair any damage or wear to the boat.
• Lubricate the shaft.
• Make note of lessons from the trimming of your boat, including water and wind conditions
• We dont recommend to use in salt water. If you do, please rins the boat with fresh water.
Tip: The hook and look strips in the boat retain water. To dry them press on them with a dry
clotch.
