Input setting current and select setting time after communication link is working correctly.
(Example: I =200A, Tr=60s,Isd=1000A,Tsd=0.1s,Ii=2000A),and tick on box in front of the setting
R
current or setting time which you want to adjust (see Fig. 8). Then click the "Settings" button on the
software interface, successful interface will emerge (see Fig. 9).
NDT2920002

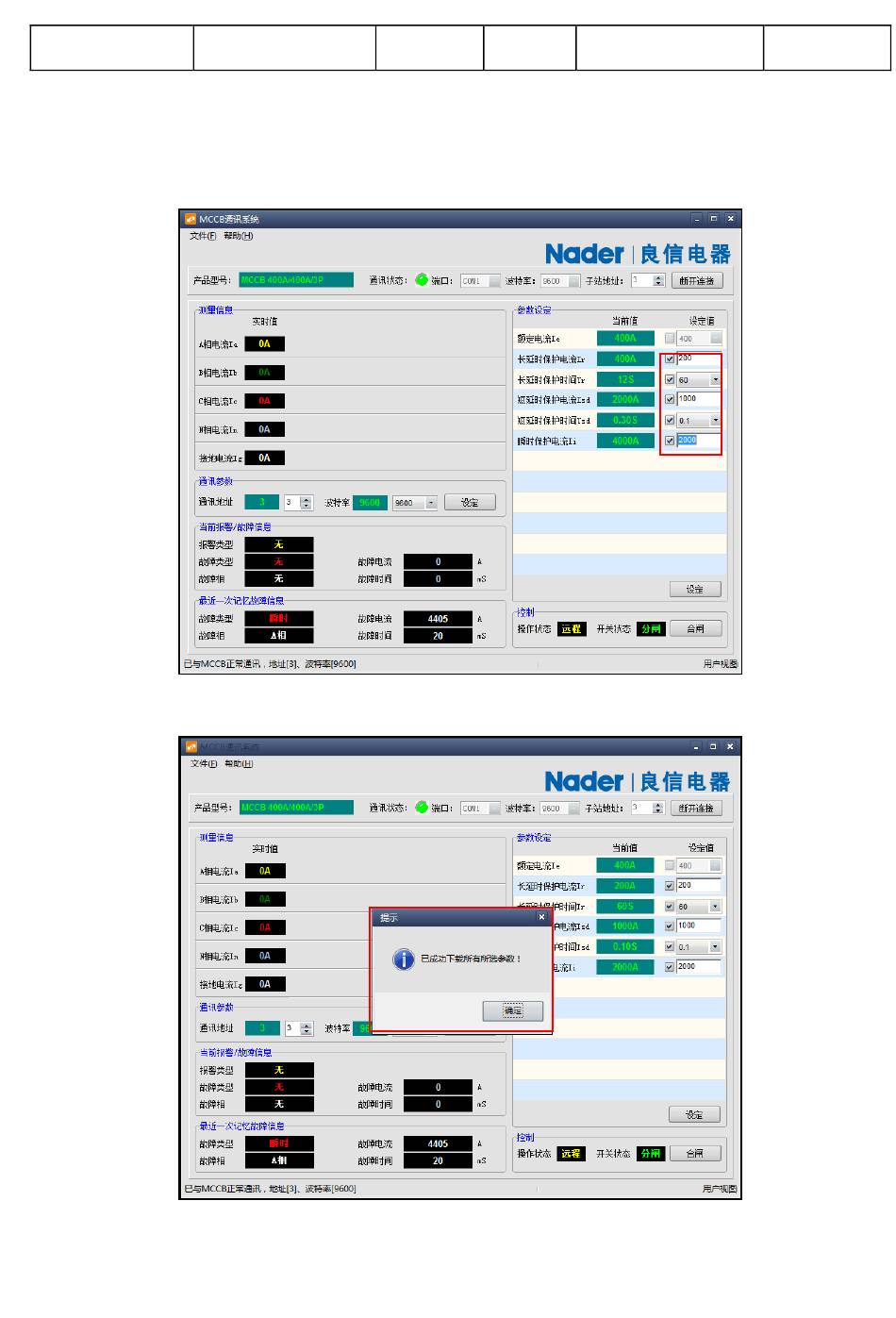

图 8：电流或时间调节界面
Fig. 8: Adjustment interface of current or time
图 9：电流或时间调节成功界面
Fig.9: Successful interface of current or time adjustment
