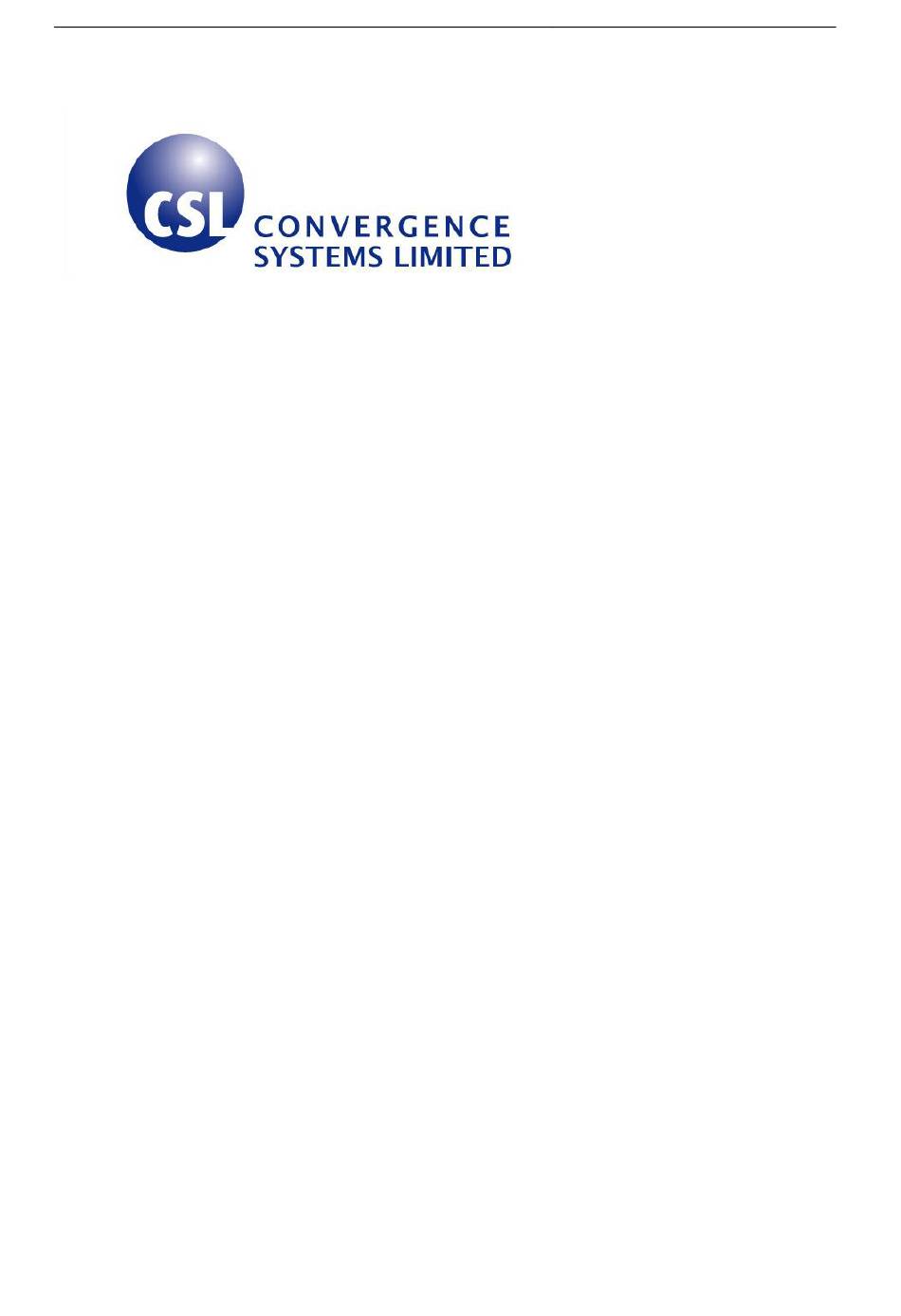

- Page 1 CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 CSL CS468-2 EPC Class 1 Gen 2 RFID Fixed Reader User’s Manual Version 1.0 CSL: The One-Stop-Shop for RFID Solutions Copyright © Convergence Systems Limited, All Rights Reserved...
-
Page 2: Table Of Contents
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Content CONTENT ............................... 2 FCC STATEMENT ............................3 INTRODUCTION ............................4 ..........................4 RODUCT ACKAGE 3.1.1 Basic Package Content ........................4 3.1.2 Product Specifications ........................5 INSTALLATION ............................ -
Page 3: Fcc Statement
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 FCC Statement FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. -
Page 4: Introduction
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Introduction Product Package 3.1.1 Basic Package Content The reader package contains: • Fixed reader • 16 port switch • RF cables (two cables to support two installation topologies) •... -
Page 5: 3.1.2 Product Specifications
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 3.1.2 Product Specifications Fig 1-1 CS468 Reader Features: ISO 18000-6C and EPCglobal Class 1 Gen 2 UHF RFID protocol compliant including • dense reader mode Ultra long read range – peak at 9 meters for UPM Dogbone RFID tag •... - Page 6 CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Specifications: Reader: Physical Characteristics: Length: 27 cm; Width: 16 cm; Height: 2.4 cm; Weight: 700g Switch: Length: 16cm; Width: 13.5; Height: 2cm; Weight:415g Operating Temp: -20...
-
Page 7: Installation
USER'S MANUAL, VERSION 1.0 Installation Devices 4.1.1 Reader The CSL CS468 fixed RFID Reader is an EPCglobal Class 1 Gen 2 reader product. Figure 4-1 CS468 Reader Top View Figure 4-2 CS468 Reader Side View Copyright © Convergence Systems Limited, All Rights Reserved... -
Page 8: Switch
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Figure 4-3 CS468 Reader Side View Figure 4-4 CS468 Reader Side View Switch 4.1.2 Figure 4-5 CS468 Switch Top View Copyright © Convergence Systems Limited, All Rights Reserved... - Page 9 CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Antenna Control Figure 4-6 CS468 Switch Side View Figure 4-7 CS468 Switch Side View Copyright © Convergence Systems Limited, All Rights Reserved...
-
Page 10: Operating Setup
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Operating Setup CS468-2 has two power up modes: POE mode and 12V adaptor mode. RF cable Antenna control cable RF measurement cable cable enabled power source Figure 2-5 POE mode Setup The reader is connected to POE enabled power source’s output port via the cable provided in... - Page 11 CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 RF cable Antenna control cable 12V power adaptor LAN cable to RF measurement host PC cable Figure 2-6 12V power adaptor mode Setup The reader is directly connected to a host computer via the cable provided in the package.
-
Page 12: Regulatory Information
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Regulatory Information Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 13: Appendix A. Rfid Basics
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Appendix A. RFID Basics Passive tag RFID technology involves the reader, the antenna and the tag. The reader sends out energy in the relevant frequency band to the antenna via RF cables, and the antenna radiates the energy out. -
Page 14: Appendix B. Operation Profiles
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Appendix B. Operation Profiles Region 2: FCC Profile R-T Modulation DSB-ASK DSB-ASK PR-ASK PR-ASK DSB-ASK PR-ASK Tari (μs) 25.00 12.50 25.00 25.00 6.25 25.00 R-T speed (kbps) 40 1.5:1... -
Page 15: Appendix C. Rf Channels
CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0 Appendix C. RF channels Region 2: FCC Channel Frequency Channel Frequency Channel Frequency number (MHz) number (MHz) number (MHz) 902.75 911.25 919.75 903.25 911.75 920.25 903.75 912.25...
