- Page 1 CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 CSL CS468-2INT EPC Class 1 Gen 2 RFID Fixed Reader User’s Manual Version 1.0.3 CSL: The One-Stop-Shop for RFID Solutions Copyright © Convergence Systems Limited, All Rights Reserved...
-
Page 2: Table Of Contents
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Content CONTENT ............................... 2 FCC STATEMENT ............................3 INTRODUCTION ............................4 ..........................4 RODUCT ACKAGE 3.1.1 Basic Package Content ........................4 3.1.2 Product Specifications ........................5 INSTALLATION ............................ -
Page 3: Fcc Statement
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 FCC Statement FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the... -
Page 4: Introduction
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Introduction Product Package 3.1.1 Basic Package Content The reader package contains: • Fixed reader with 16 RF ports • USB cable • GPIO cable • 12V switching power supply •... -
Page 5: 3.1.2 Product Specifications

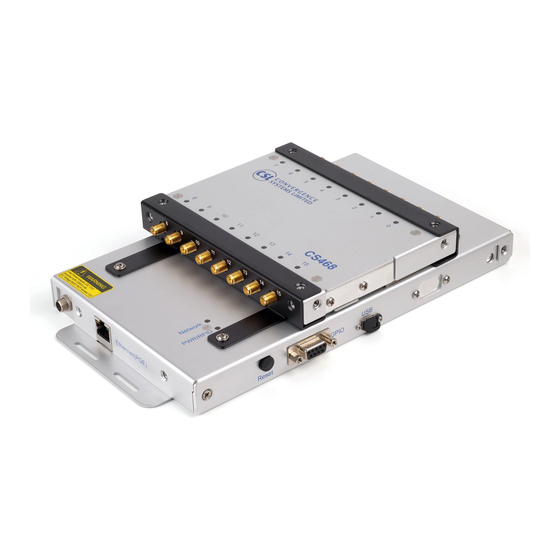

CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 3.1.2 Product Specifications Fig 3-1 CS468-2INT Reader Features: ISO 18000-6C and EPCglobal Class 1 Gen 2 UHF RFID protocol compliant including • dense reader mode Ultra long read range – peak at 9 meters for UPM Dogbone RFID tag •... - Page 6 CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Specifications: Reader: Physical Characteristics: Length: 27 cm; Width: 16 cm; Height: 2.4 cm; Weight: 700g Switch: Length: 16cm; Width: 13.5; Height: 2cm; Weight:415g Environment: Operating Temp: -20...
-
Page 7: Installation
Installation Devices 4.1.1 Reader The CSL CS468-2INT fixed RFID Reader is an EPCglobal Class 1 Gen 2 reader product. Figure 4-1 CS468-2INT Reader Top View GPIO Figure 4-2 CS468-2INT Reader Side View Copyright © Convergence Systems Limited, All Rights Reserved... - Page 8 CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 12VDC Ethernet Figure 4-3 CS468-2INT Reader Side View Copyright © Convergence Systems Limited, All Rights Reserved...
-
Page 9: Operating Setup
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Operating Setup CS468-2INT has two power up modes: POE mode and 12V adaptor mode. PoE Adaptor or Ethernet Switch with PoE output port CS771S-2 Ethernet Cable 1... - Page 10 CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 AC/DC Adaptor CS771S-2 Antenna or AC100~240V DC12V Test Equipment with 50R Input port Ethernet Cable RF Cable CS468-2INT RF Output: SMA RP Jack Figure 4-5 12V power adaptor mode Setup The reader is directly connected to a host computer via the cable provided in the package.
-
Page 11: Regulatory Information
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Regulatory Information Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 12 USER'S MANUAL, VERSION 1.0.3 6 Antenna Setup CS468-2INT is a 16 port reader where the ports are switched on in time one by one. At any time only 1 port is switched on and the RF power comes out only at that port. The rest of the ports are turned off so that no energy comes out from the other ports.
- Page 13 CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 The Antenna should be set up 0.5 meter apart is shown as below: 0.5 meter Antenna 16 ……… Antenna 1 Antenna 2 Energy coming out of 1 antenna (note that...
- Page 14 CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 CS771S Ant-1 CS771S Ant-2 CS468-2INT CS771S Ant-3 Reader CS771S Ant-4 CS771S Ant-5 CS771S Ant-6 CS771S Ant-7 CS771S Ant-8 CS771S Ant-9 CS771S Ant-10 CS771S Ant-11 CS771S Ant-12...
-
Page 15: Appendix A. Rfid Basics
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Appendix A. RFID Basics Passive tag RFID technology involves the reader, the antenna and the tag. The reader sends out energy in the relevant frequency band to the antenna via RF cables, and the antenna radiates the energy out. -
Page 16: Appendix B. Operation Profiles
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Appendix B. Operation Profiles Region 2: FCC Profile R-T Modulation DSB-ASK DSB-ASK PR-ASK PR-ASK DSB-ASK PR-ASK Tari (µs) 25.00 12.50 25.00 25.00 6.25 25.00 R-T speed (kbps) 40 1.5:1... -
Page 17: Appendix C. Rf Channels
CSL CS468-2INT EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0.3 Appendix C. RF channels Region 2: FCC Channel Frequency Channel Frequency Channel Frequency number (MHz) number (MHz) number (MHz) 902.75 911.25 919.75 903.25 911.75 920.25 903.75 912.25...
