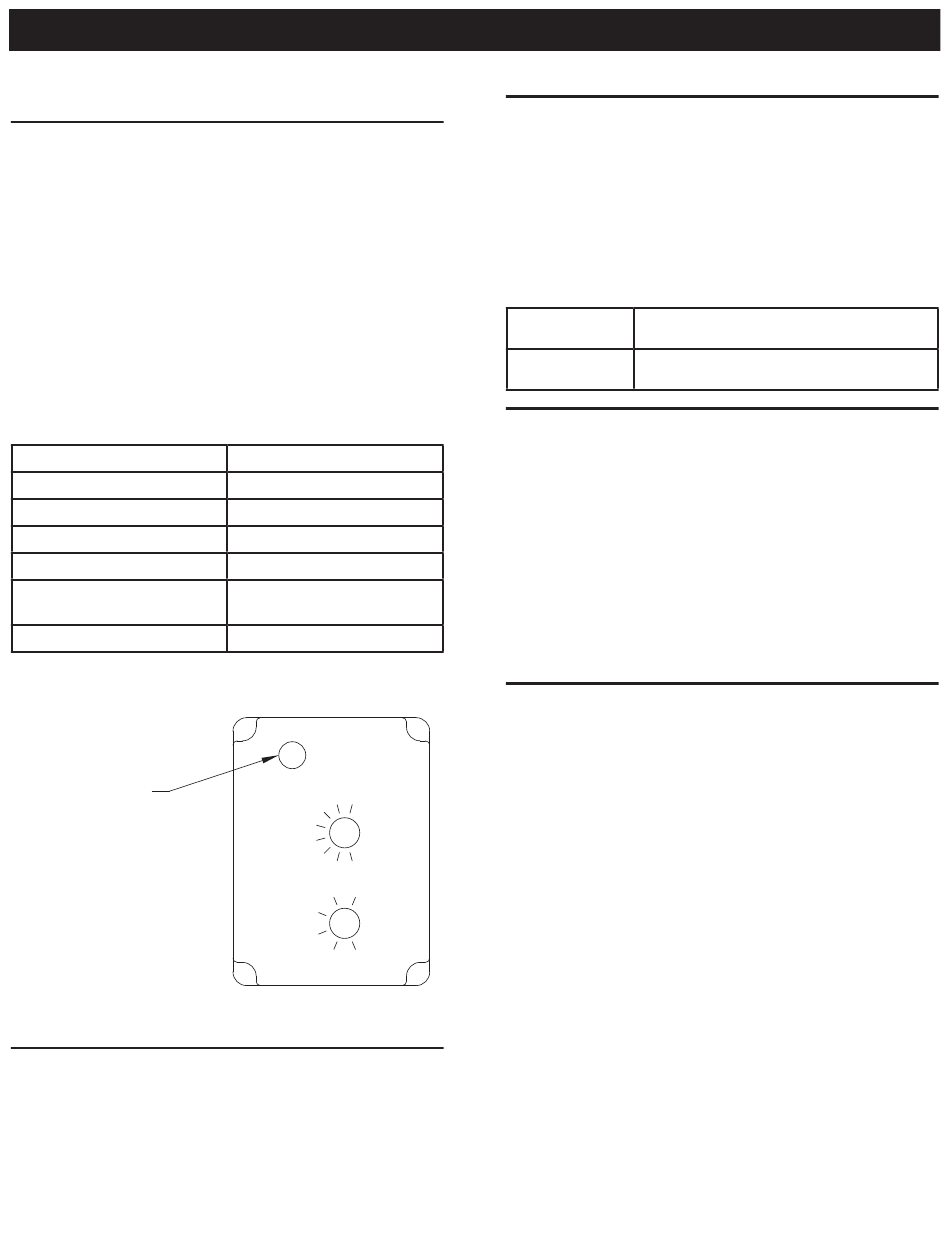

1.2.4

UTILITY FAIL RELAY

A "dry-contact" signal is provided to annunciate when the Utility
supply fails.
Singe-phase
A 240 VAC coil relay is connected across the Utility supply termi-
nals. The supply to the relay is fused with a 5A fuse in each line.
The normally closed contacts of the relay are connected to the
terminal strip for easy connection by the customer.
Three-phase
A three-phase voltage monitoring relay is connected across the
utility supply terminals. The voltage monitor relay is adjustabe
to the specific nominal voltage and the percent of dropout on
undervoltage. The voltage monitor is provided with a tri-color LED
(Figure 2).
LED STATUS
Green Steady
Green Flashing
Red Flashing
Amber Flashing
Green/Red Alternating
Red/Amber Alternating
Figure 2 — LED Indicators
TRICOLOR LED
1.2.5

CERTIFICATIONS

This device is UL listed to meet the requirements of UL 1008 –
Standard for Safety, Transfer Switch Equipment and CSA C22.2
No. 178 – Automatic Transfer Switches.
• Rated – 200A continuous @ 240 VAC.
• AIC rating 22kA Utility supply, 10kA Generator supply.
See markings on the transfer switch for further ratings and other
additional information.
INDICATOR
Normal/Relay On
Power Up/Restart
Under/Overvoltage
Phase Loss
Under/Overvoltage Trip
Pending
Nominal Voltage Set Error
SEE NAMEPLATE FOR STATUS
460
480
440
400
NOMINAL
240 VOLTAGE
230
220 208
95%
80%
UNDERVOLTAGE
1.3 RATINGS — DATA LABEL
This TMS is rated 200 amp at 120/240 VAC single phase or,
120/208 or 120/240 VAC three phase. A DATA LABEL is perma-
nently affixed to the transfer switch subplate. Use this TMS only
within the specific limits shown on the DATA LABEL and the appli-
cation decal located on the inside of the cabinet.
When requesting information or ordering parts for this equipment,
make sure to include all information from the DATA LABEL. Record
the Model and Serial numbers in the space provided.
MODEL #
SERIAL #
1.4 ENCLOSURE
The standard TMS switch enclosure is a UL type 3R. UL type 3R
enclosures are intended for outdoor installation but can be mount-
ed indoors as well. This enclosure provides protection against rain
and sleet, and is undamaged by the formation of ice.
The enclosure door is latched with a single handle and 3-point
latching system. The handle is padlockable so the cabinet door
can be locked.
The main enclosure door is supplied from the factory with the
hinges on the left side. The design of the door allows the door
swing to be reversed in the field. Holes are provided on the left side
of the cabinet for mounting of the hinges.

1.5 SAFE USE OF TRANSFER SWITCH

Before installing, operating or servicing this equipment, read the
SAFETY RULES carefully. Comply strictly with all SAFETY RULES
to prevent accidents and/or damage to the equipment.
manufacturer recommends making a copy of the SAFETY RULES
and post them near the transfer switch. Also, be sure to read all
instructions and information found on tags, labels and decals
affixed to the equipment.
The publications that outline the safe use of transfer switches are
the following:
• NFPA 70; National Electrical Code
• UL 1008, STANDARD FOR SAFETY-AUTOMATIC TRANSFER
SWITCHES
General Information
The
