PRODUCT NO.
BASE MODEL NO.
PLCF489CCA
PLCF489C
WIRING DIAGRAM - # 318045314
OWNER'S GUIDE - # 318200754
TIMER INSTRUCTION SHEET - # 318200181
INSTALLATION INSTRUCTIONS - # 318201752
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
FACTORY PARTS CATALOG
FACTORY NO.
COLOR
38157593H30S1
stainless
Publication No.
5995378824
020925
-EN/SERVICE /ECL
377

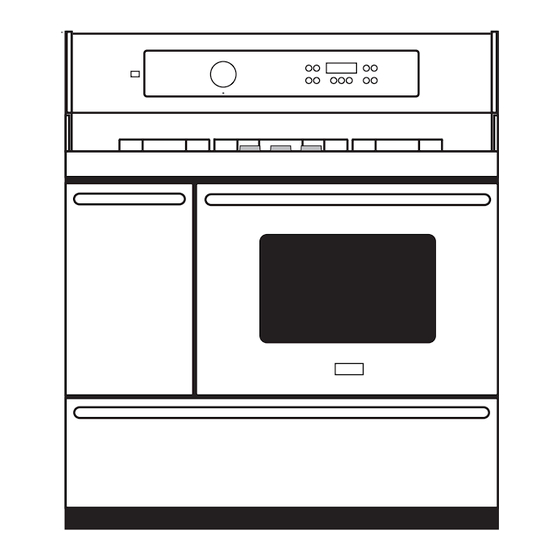

RANGE
MARKET
North America
ELECTRIC
RANGE
Model No.
PLCF489C
©2002 Electrolux Home Products, Inc.
All rights reserved
Advertisement
Related Manuals for Frigidaire PLCF489C
Summary of Contents for Frigidaire PLCF489C
- Page 1 PRODUCT NO. BASE MODEL NO. PLCF489CCA PLCF489C WIRING DIAGRAM - # 318045314 OWNER’S GUIDE - # 318200754 TIMER INSTRUCTION SHEET - # 318200181 INSTALLATION INSTRUCTIONS - # 318201752 ELECTROLUX HOME PRODUCTS, INC. P.O. BOX 212378, Augusta, GA 30917 FACTORY PARTS CATALOG FACTORY NO.
- Page 2 Publication No. PLCF489CCA 5995378824 BACKGUARD 09/02...
- Page 3 POS. NO 12A# 14 # 20 # 24 # # = Functional Parts * = Non-Illustrated Parts PLCF489CCA BACKGUARD PART NO DESCRIPTION 318086900 Shield,backguard 318183000 Thermostat,oven 318044824 Light,indicator 318161900 Bracket,end cap ,RH 318161901 Bracket,end cap ,LH 318193101 Panel,switch mtg 318190604 End Cap,RH 318190605 End Cap,LH...
- Page 4 Publication No. PLCF489CCA 5995378824 BURNER 09/02...
- Page 5 POS. NO 2A # 2B # 10 # 10A# 10B# 14 # 74 # 79 # # = Functional Parts * = Non-Illustrated Parts PLCF489CCA BURNER PART NO DESCRIPTION 318177200 Manifold Pipe 5303935042 Valve,top burner ,2-position ,9100 BTU 318087001 Valve,top burner ,5000 BTU 318087040 Valve,top burner ,13000 BTU 316032002...
- Page 6 Publication No. PLCF489CCA 5995378824 BODY 09/02...
- Page 7 POS. NO 12 # 12A# 37 # 62 # 66 # 66A# 67 # 67A# 89 # 112# 125# # = Functional Parts * = Non-Illustrated Parts PLCF489CCA BODY PART NO DESCRIPTION 318066402 Panel,main back 318173610 Conduit,air 3201579 Panel,bodyside ,black ,RH 3201580 Panel,bodyside ,black ,LH 318073706...
- Page 8 Publication No. PLCF489CCA 5995378824 BODY 09/02...
- Page 9 POS. NO 141# 161# 219# # = Functional Parts * = Non-Illustrated Parts PLCF489CCA BODY PART NO DESCRIPTION 318090300 Latch,door 318042900 Bracket,filler 318071300 Plate,insul retainer 318005201 Switch,thermal cutout 318123901 Deflector 318050700 Element,convection ,2500 W 5304405241 Anti-tip bracket 5303324040 Gasket,vent 5303304030 Bracket,angle ,corner 318112102 Plate,warning...
- Page 10 Publication No. PLCF489CCA 5995378824 MAIN TOP 09/02...
- Page 11 POS. NO 136A # = Functional Parts * = Non-Illustrated Parts PLCF489CCA MAIN TOP PART NO DESCRIPTION 318171400 Support 318159601 Maintop,glass 318168114 Pan,burner ,black ,medium 318168124 Pan,burner ,black ,large 318168104 Pan,burner ,black ,small 318120303 Grate,burner ,black 318188710 Grate,black ,center 318076410 Cap,burner ,black ,medium LF &...
- Page 12 Publication No. PLCF489CCA 5995378824 DRAWER & SMALL DOOR 09/02...
- Page 13 POS. NO 193A # = Functional Parts * = Non-Illustrated Parts PLCF489CCA DRAWER & SMALL DOOR PART NO DESCRIPTION 3202108 Drawer,utility 318048211 Liner,inner door ,small oven 318158220 Panel,drawer 318009311 Panel,oven door ,small 318014510 Spacer,door handle 316105602 Glide,warmer ,inner RH 316105601 Glide,warmer ,inner LH 318141800 Spacer,hinge pin ,upper/lower...
- Page 14 Publication No. PLCF489CCA 5995378824 OVEN DOOR 09/02...
- Page 15 POS. NO # = Functional Parts * = Non-Illustrated Parts PLCF489CCA OVEN DOOR PART NO DESCRIPTION 318041221 Glass,oven door ,outer 318057020 Shield,insulation ,door 318133774 Insulation,oven door 318133773 Insulation,oven door ,cavity 318106029 Insulation,w/aluminum foil 318156911 Door,inner 318053103 Gasket,oven door seal 318187922 Stainless Panel,oven door ,w/ glass/nmplt 318172903 Stiffener,glass...
-
Page 16: Wiring Diagram
Publication No. PLCF489CCA 5995378824 WIRING DIAGRAM 09/02...
