Congratulations for purchasing your new BEKO linear amplifier. You have purchased a
quality product, individually built to the highest standards and one that will last you a lifetime.
Please take a few minutes to read these instructions manual and then store it in a safe place for
future reference. Finally it's up to you that all components used in your system as cables,
connectors, preamps and coaxial relays can handle this power level.
The HLV-1100 is a solid state MOSFET VHF-amplifier covering the 430 – 440 MHz
frequency range with a selectable gain of 16 db. The internal modulated power limit is kept to
1100 watts. It's design is based on Freescale's rf transistor MRFE6VP6300H. The optimized
output matching with low pass filter insure best efficiency, highest 1dB compression and high
spectral purity. It is essential that the driving source itself has a narrow phase noise and high
spectral purity. The output signal of this amplifier used can't be better than the input signal.

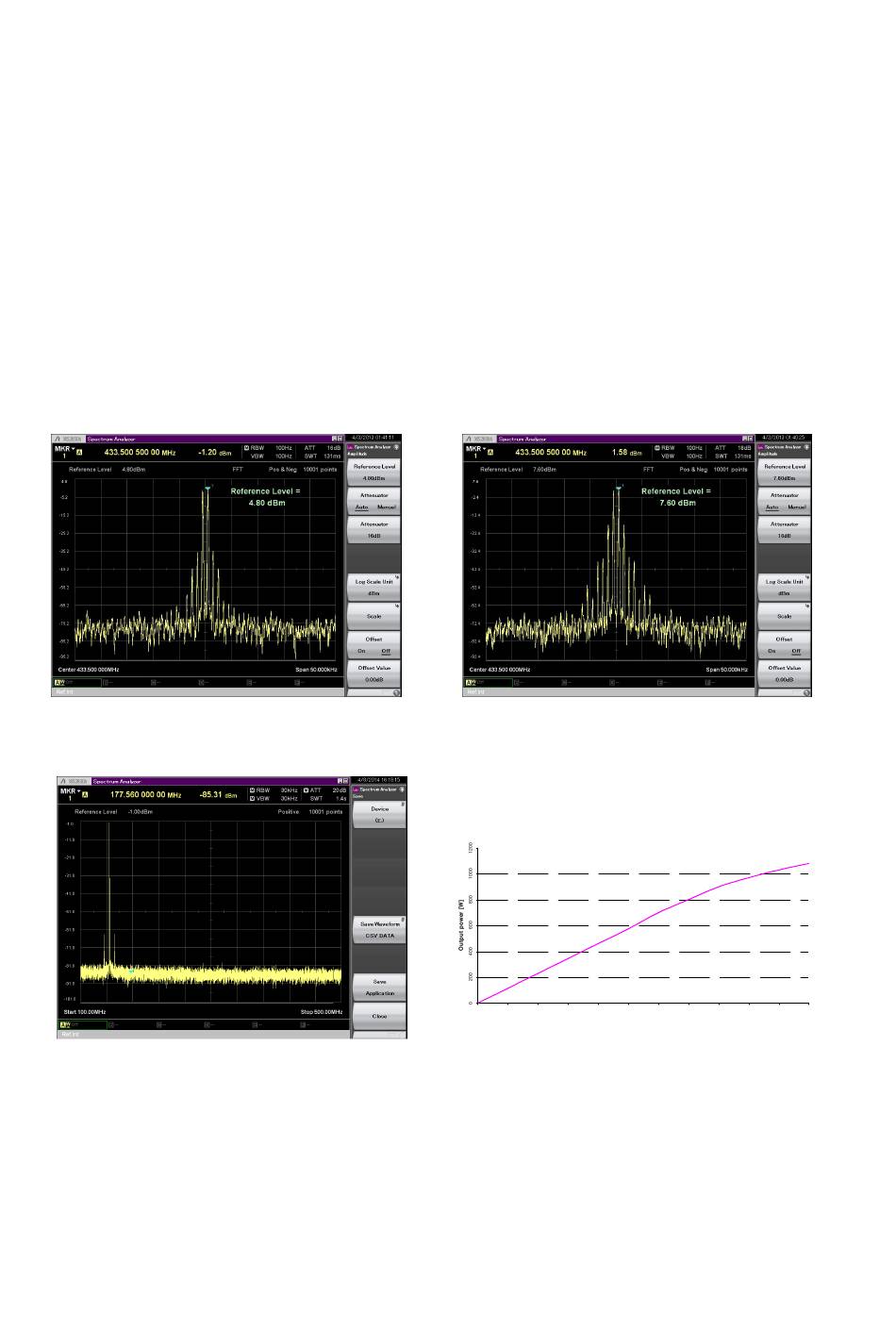

IMD-performance @ 0,5 kW PEP
Harmonic suppression @ 1 kW CW
The following models are available:
2. Introduction
IMD-performance @ 1,0 kW PEP
0
2,5
Output power vs input power
HLV-1100-10
HLV-1100-15
HLV-1100-25
HLV-1100
5
7,5
10
12,5
15
17,5
Input power [W]
20
22,5
25
27,5
4
