This amplifier can also be remote controlled. RESET- , PREAMP- and PTT-
function can easily be activated by an external switch wired to ground. Output
power can be monitored. 100% of output power is equal to 10V DC on Pin 5.
Use the 7-pin DIN plug that was delivered with your amplifier and connect the
other end to a suitable connector to your transceiver or other switching unit.

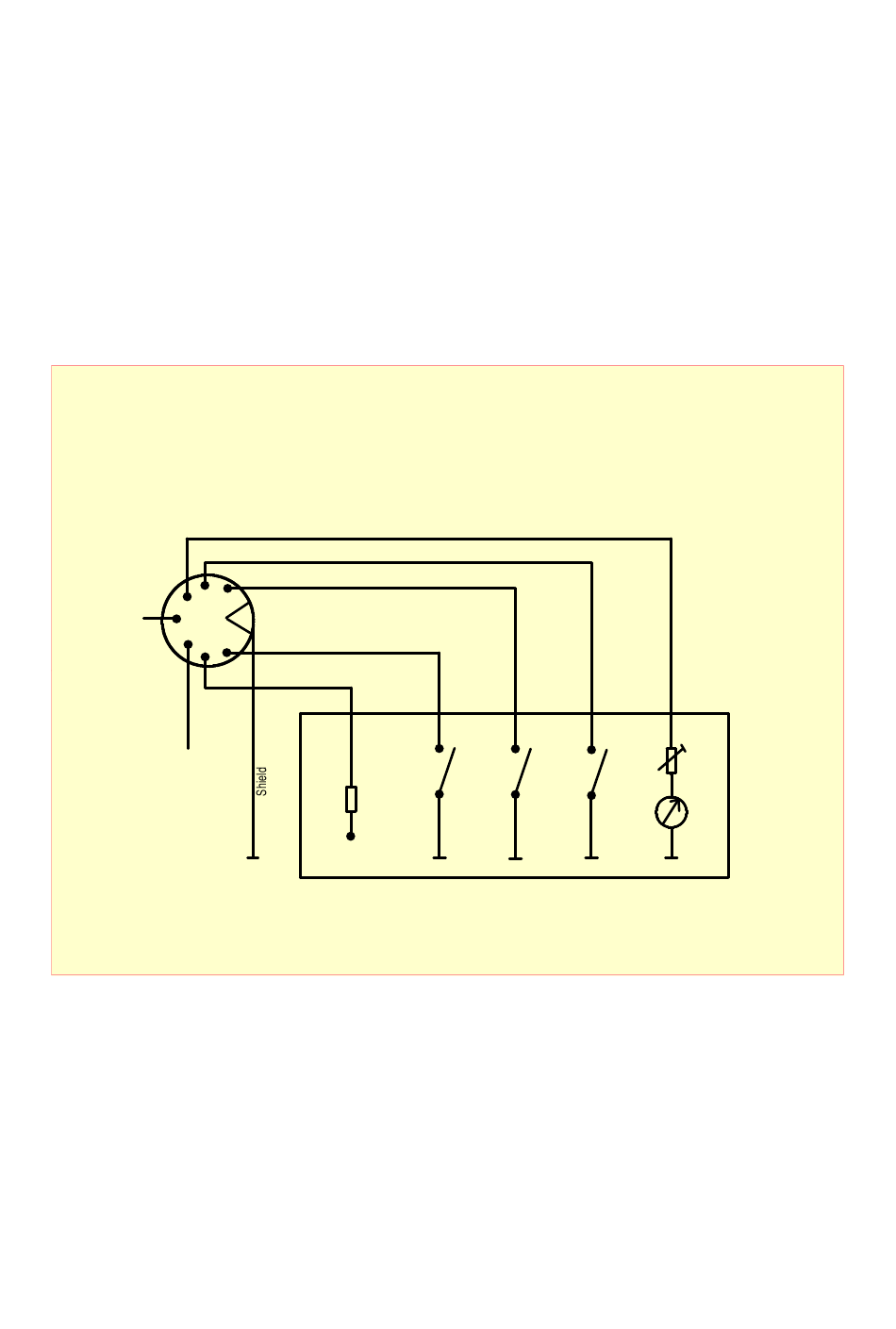

Remote control-HLV-1100
3
7
5
nc
2
optional
4
output relay
6
1
+15V DC
ext. preamp
9. REMOTE control
PTT
+5V
Alarm out
switch box
PREAMP
RESET
100% power level = 10V DC
5K
POWER
1 mA
11
