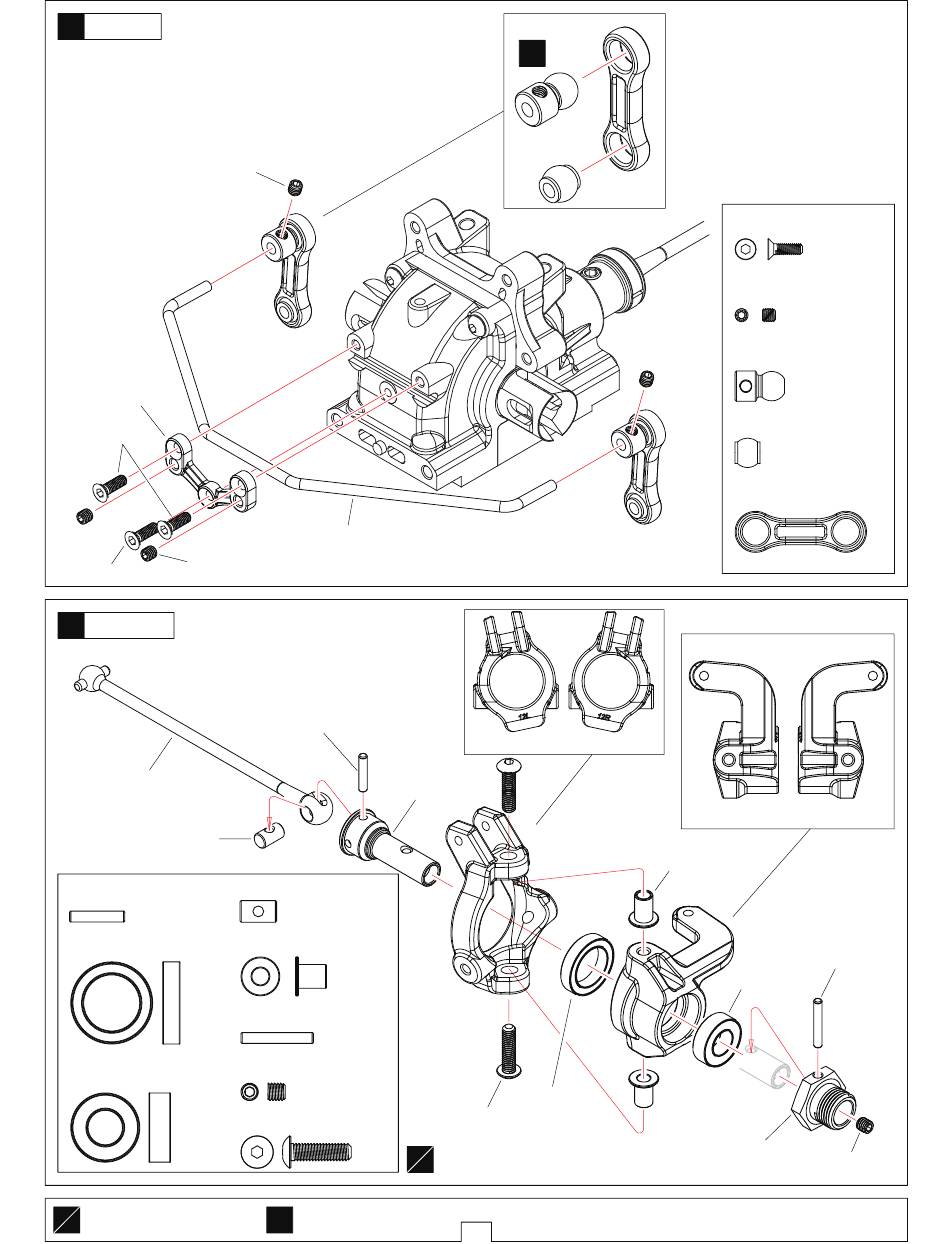

Team C T8E Operation User's Manual page 8

D
-
7
Front Swaybar
Bag
T08606 M3x3
T08601
Swaybar Mount
T08674 M2.5x8
T08601 M3x3
T08674 M2.5x8
D
-
8
Front Hub Carrie
Bag
T08639
95.5mm Front CVD
T08639 5x8.5
T08639 2.5x12.8 Pin
..................2
T08665 13x19x4 Ball Bearing
.........2
T08664 8x16x5 Ball Bearing
.........2
Assemble both Left and Right
L
R
All manuals and user guides at all-guides.com
T08647
Front Swaybar
T08639 2.5x12.8
T08639
T08639 5x8.5 CVD Shaft
........................2
T08603 King Pin Bushing
.........4
T08649 2.5x16.8 Pin
...............2
T08639 M4x4 Screw
.....................2
T08673 M4x14 Screw
......4 L
Assemble as many times as specified
x2
T08606
x2
Left Right
Front Hub Carriers 12 Degree
T08603
T08665 13x19x4
T08673 M4x14
R
4
T08674 M2.5x8 Screw
..................3
T08601/T08606 M3x3 Screw
........................4
T08606 6.8 Ball stud
.....................2
T08606 6.8 Ball stud
...........................2
T08606 6.8 Ball End
..................2
T08604
Steering Block-Left Steering Block-Right
T08603
King Pin Bushing
T08649 2.5x16.8
T08664 8x16x5
T08649
Wheel Hex Hub
T08639 M4x4
