Team C T8E Operation User's Manual page 5

1
Servo Saver Turnbuckle
Bag
T08643 3x40 Turnbuckle
............1
T08606 5.8 Ball End
............2
T08606 5.8 Ball stud
........................2
T08666 M3 Nylon Nut
.....................1
T08674 M3x15 Screw
.........1
A
-
2
Buffer
Bag
Approx.8mm
T08651 Buffer Screw
......2
T02081 3x7x0.8 Washer
.....................2
T08666 M3 Nylon Nut
.....................1
T08674 M3x14 Screw
.........1

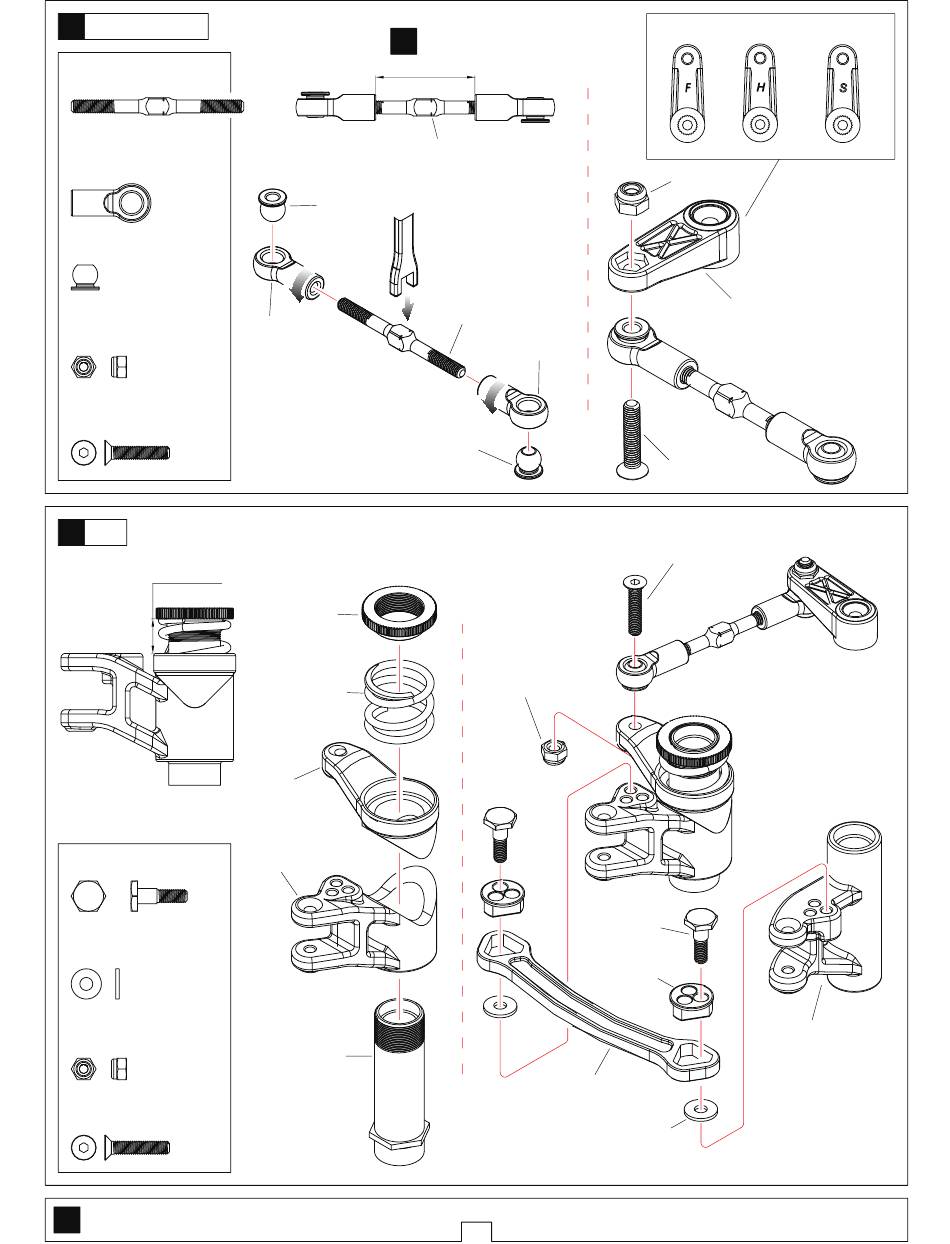

True-to -scale diagram
1:1
All manuals and user guides at all-guides.com
A
-
1:1
Approx.23mm
▲Projection.Note direction
T08606
5.8 Ball stud
4mm
T08606
5.8 Ball End
T08606
5.8 Ball stud
T08650
Servo Saver Nut
T08650
Servo Saver Spring
T08609
Servo Saver-Top
T08609
Servo Saver-Bottom
T08650
Servo Saver Body
T08643
3x40 Turnbuckle
T08606
5.8 Ball End
T08666 M3
T08651
Buffer Screw
T08651
Buffer Bushing
T08651
Steering Rack
T02081 3x7x0.8
1
Select the servo horn matching the servo being used.
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
T08666 M3
T08620
Steering Servo Horn-F
T08674 M3x15
T08674 M3x14
T08609
Servo Saver-Left
