Team C T8E Operation User's Manual page 16

E

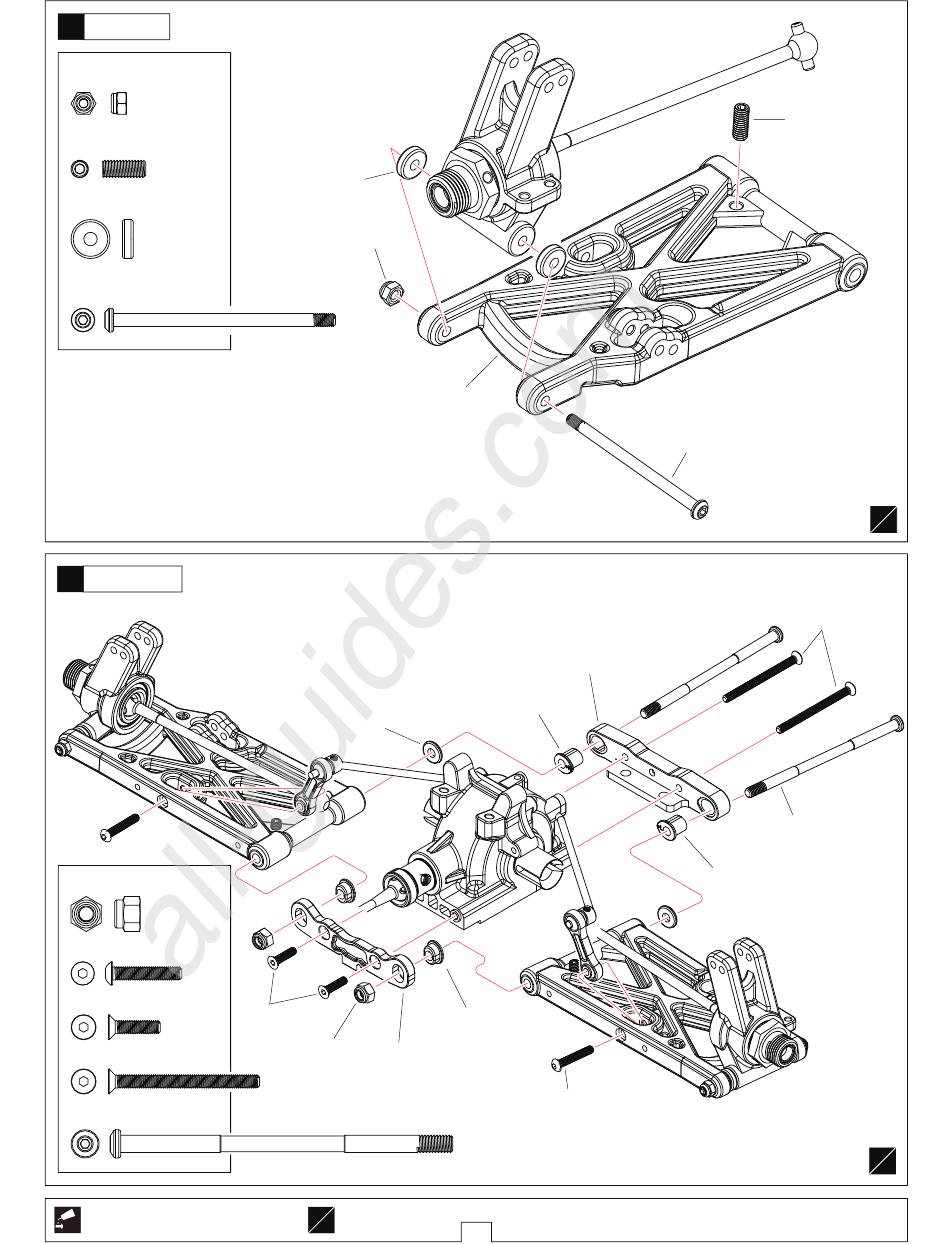

23 -
Rear Hub
Bag
Carrier
T08666 M3 Nylon Nut
..................2
T08675 M4x10 Screw
...............2
T08605 3.1x9x2.5 Plastic Washer
..................4
T08646 3x51.5 Arm Pin
...............2
E
24 -
Rear Suspension
Bag
T08666 M4 Nylon Nut
..................2
T08673 M3x16 Screw
......2
T08674 M3x12 Screw
T08674 M3x12
............2
T08674 M3x35 Screw
...............2
T08646 4x77 Arm Pin
...............2
Apply threadlock
Screw
Cement
All manuals and user guides at all-guides.com
T08605 3.1x9x2.5
T08666 M3
T08608
Rear Lower Arm-Left
T08613
+1 Degree Bushing-Right
T08608
T08666 M4
T08613
Rear Arm Mount-F
Assemble both Left and Right
L
R
T08613
Rear Arm Mount-R
T08613
0 Degree Bushing
T08673 M3x16
12
T08675 M4x10
T08646 3x51.5
T08674 M3x35
T08646 4x77
T08613
+1 Degree Bushing-Left
L
R
L
R
