- Page 1 Startup Guide Keysight M9035A PXIe Embedded Controller...
- Page 3 WITHOUT NOTICE, IN FUTURE EDI- without prior agreement and written con- uct-specific information and support, TIONS. FURTHER, TO THE MAXIMUM sent from Keysight Technologies, Inc. as software and documentation updates) EXTENT PERMITTED BY APPLICABLE governed by United States and interna- www.keysight.com/find/assist...
- Page 4 Safety Information The following general safety precau- Cleaning In Case of Damage tions must be observed during all To prevent electrical shock, disconnect Instruments that appear damaged or phases of operation of this instrument. the instrument from mains before defective should be made inoperative Failure to comply with these precau- cleaning.
- Page 5 A CAUTION denotes a hazard. It calls attention to an operating pro- The CSA mark is a registered trade- cedure or practice, that, if not cor- M9035A mark of the Canadian Standards Asso- rectly performed or adhered to MSIP-REM-Kst-xxxxx ciation and indicates compliance to could result in damage to the the standards laid out by them.
-
Page 7: Table Of Contents
Step 3: Install the M9035A Embedded Controller ..... . 15 Removing the M9035A from the Chassis......17 Power On Sequence . - Page 8 Keysight M9035A PXIe Embedded Controller Startup Guide...
-
Page 9: Introduction
Introduction Introduction Keysight’s M9035A is a Windows PC that fits in slot 1 of a PXIe chassis. It is a 3U, 4-slot PXIe Embedded Controller providing: - Intel® CoffeeLake Quad-Core i3-8100H processor with UEFI BIOS - 8GB standard (or optional 16 GB) 260-pin DDR4-2666 RAM Memory - 256 GB SATA 2.5 inch solid state drive (SSD) front panel removable... -
Page 10: M9035A At A Glance

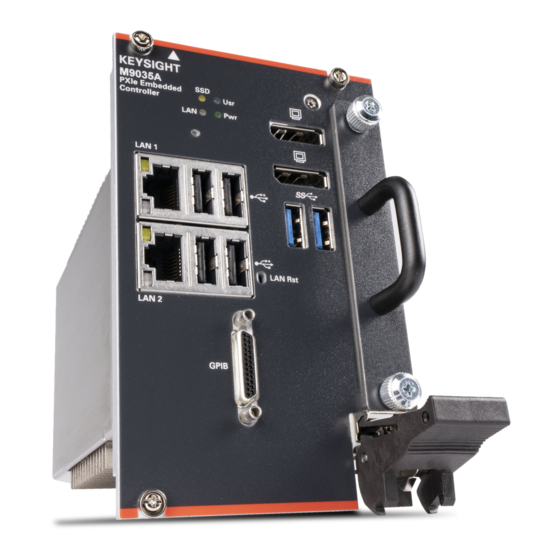

M9035A at a Glance M9035A at a Glance The following figure shows the front panel for the M9035A. Detailed information about the module follows in this manual. DisplayPort Connectors (supports multiple monitors) LED Indicators USB 3.0 Ports LAN (GbE) Port #1... -
Page 11: Front Panel Led Indicators
Both LEDs off indicate that network link is not established or system is powered off. LAN RST Button The LAN RST button is reserved for Keysight use only. Depressing the LAN RST button has no effect. Keysight M9035A PXIe Embedded Controller Startup Guide... -
Page 12: Step 1: Unpack And Inspect The Module
After unpacking the embedded controller, carefully inspect it for any shipping damage. Report any damage to the shipping agent immediately, as such damage is not covered by the warranty. To avoid damage when handling a module; do not touch exposed connector pins. Keysight M9035A PXIe Embedded Controller Startup Guide... -
Page 13: If You Need To Return The Module For Service
– A description of failure or service required. You should remove the SSD and RAM modules prior to returning the M9035A for service. Refer to the Keysight M9035A User Guide for detailed instructions. -
Page 14: Step 2: Verify Shipment Contents
No other drivers are required to operate the controller module. However, your application modules may require drivers. If possible, you should connect the M9035A to the Internet and download drivers from the original source. Alternately, you can transfer the drivers on a USB memory stick and install them accordingly. -
Page 15: Step 3: Install The M9035A Embedded Controller
Keysight’s M9035A can operate with all of the PCIe fabric configurations found on a Keysight PXIe chassis as well as the standard 4x4 fabric used on non-Keysight PXIe chassis. - Page 16 Remove the screw protection caps from the four M9035A retaining screws. Push down on the controller’s ejector/injector handle. Carefully align the M9035A board edges with the chassis guide rails for slot 1 (red guide rails) and insert the controller into the guide rails.
-
Page 17: Removing The M9035A From The Chassis
Pull the module towards you until it is free of the chassis. Power On Sequence The M9035A controller, like any PC, will boot with the installed operating system. Refer to the M9035A User Guide for detailed power on and configuration sequence information. -
Page 18: Power Down Modes
PXIe Chassis Family Driver. If you already have a Keysight M9036A Embedded Controller and you want to upgrade to an M9035A, be aware that the IVI API drivers are not the same. You will need to update any programs/applications you have written and rebuild them. -
Page 19: Step 4: Review Windows Configuration
However, the first time you turn on the M9035A and Windows starts, you must accept the End User License Agreement (EULA). A copy of the Windows EULA is in the M9035A at: C:/Program Files (x86)\Keysight\M9035A Embedded Controller If you want to verify Windows Activation, do the following: In “Windows 10 Enterprise LTSC”, right-click Windows Start button, then click... -
Page 20: User Data Backup
USB device. Your IT department may already have a backup strategy which is suitable for the system and data. Also, user data back up should be done just prior to sending the controller back to Keysight for service. Keysight M9035A PXIe Embedded Controller Startup Guide... -
Page 21: System Backup And Recovery
Default Administrator Password: Keysight4u! They Keysight standard for the Administrator password is Keysight4u! Your M9035A Administrator account is most likely is set with this password. If it is not set with this password, then there is no password. Change Administrator Password The default Administrator password is public knowledge. -
Page 22: Remote Desktop Connection
Remote Desktop Connection The standard Microsoft application “Remote Desktop Connection” allows you to remotely login to the M9035A across the LAN from another computer. It only works if the accounts have passwords. If your Administrator password is set on your M9035A, then the Remote Desktop Connection is enabled by default. -
Page 23: Step 5: Run Keysight Io Libraries Suite
) from the Windows messaging area in the lower right corner of your desktop. Locate your interfaces and instruments in the Keysight Connection Expert Instruments Tab. All drivers necessary for the operation of the M9035A are pre-installed at the factory. Keysight M9035A PXIe Embedded Controller Startup Guide... -
Page 24: Step 6. Verify Operation
Step 6. Verify Operation Step 6. Verify Operation If your M9035A Embedded Controller boots to Windows and the front panel status LEDs do not indicate an error (see “Front Panel LED Indicators” page 11), then the controller is working normally. -
Page 25: Step 7: Install User Application Modules In The Pxie Chassis
Consult the module provider for software requirements and instructions. Connect the embedded controller to the Internet to locate and install the necessary drivers. Keysight M9035A PXIe Embedded Controller Startup Guide... -
Page 26: Upgrading From The M9036A
- The GPIB cables are not compatible. - The video output and cables are not compatible. - The M9035A, unlike the M9036A and M9037A, does not have a Soft Front Panel or its own IVI drivers. The PXIe chassis driver provides the IVI KtMTrig driver to provide Trigger Manager functionality. -
Page 27: Controller Operating System
- 1x8 Configuration — Referred to as 1x8, this configuration provides one x8 link from the M9035A embedded controller to the PCIe switch fabric. While the 1x8 configuration will work with the M9035A, it is better suited for use with the M9021A system module which supports 8 PCIe lanes. - Page 28 M9018 PXIe Chassis PCIe Link Configuration - 4x4 Configuration — Referred to as 4x4, this configuration provides four x4 links from the M9035A embedded controller to the PCIe switch fabric. While the 4x4 configuration will work with the M9035A, it is more advantageous with certain non-Keysight system modules.
-
Page 29: M9035A Accessories
Y1275A Slot Blocker Kit (5 single slot blockers) -- for the PXIe chassis * This is not the same GPIB cable used on the Keysight M9036A PXIe Embedded Controller, they are not compatible. Keysight M9035A PXIe Embedded Controller Startup Guide... -
Page 30: Environmental Operating Conditions
Environmental Operating Conditions Environmental Operating Conditions The Keysight M9035A PXIe Embedded Controller is designed to operate in a ° ° temperature range of 0 C to +55 C with non-condensing humidity. Maximum Relative Humidity (non-condensing): 95%RH up to 40 °C, decreases linearly to 45%RH at 55 °C... - Page 31 Keysight M9035A PXIe Embedded Controller Startup Guide...
- Page 32 This information is subject to change without notice © Keysight Technologies, Inc. 2021 Published in USA First Edition, September 2021 *M9035-90001* M9035-90001 www.keysight.com...
