12. Adjustment of protection thresholds

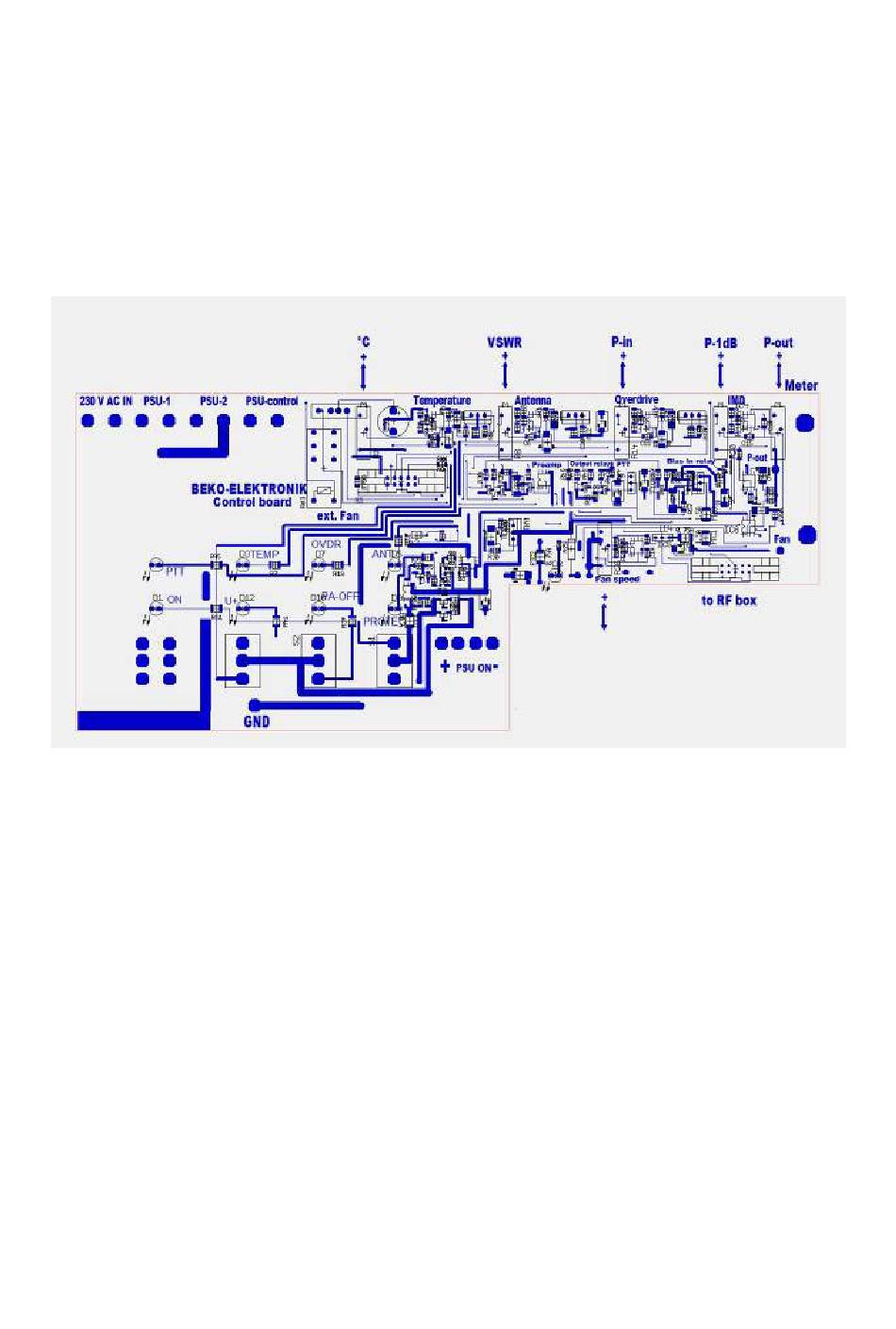

In some cases the default adjustments are too sensitive and need some slight correction. In the
picture below all trimpots incl. their functions are shown. Turning the slots clockwise is equal
to + or upward direction and verse vice. Readjustment should be done very carefully
otherwise the effect of protection is cancelled.
14
