File NO.: FiiO-GCGC-2014-02
Product Model: E18
Draft by: Engineering Dept.
Readers: FiiO Official Sales Agents,

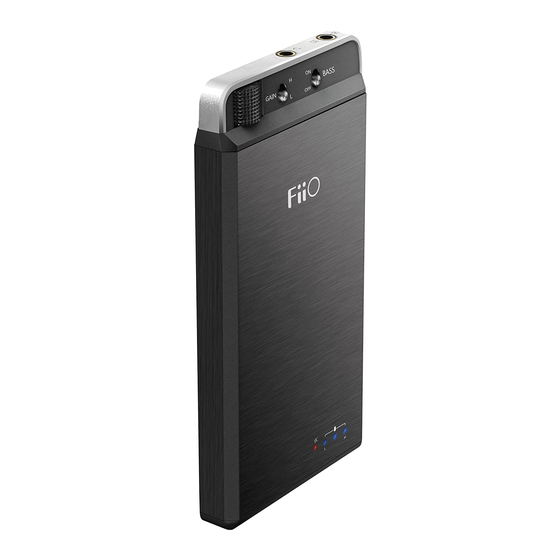

Maintenance Instruction of Replacing E18's Battery & Main Board
In order to save the shipping cost sending the defective item back and speed up the after-sales
service procedures, we hereby provide this maintenance instruction to guide sales agents or
users
to repair/renew the products' battery or main board.
Detailed procedures read as follows:

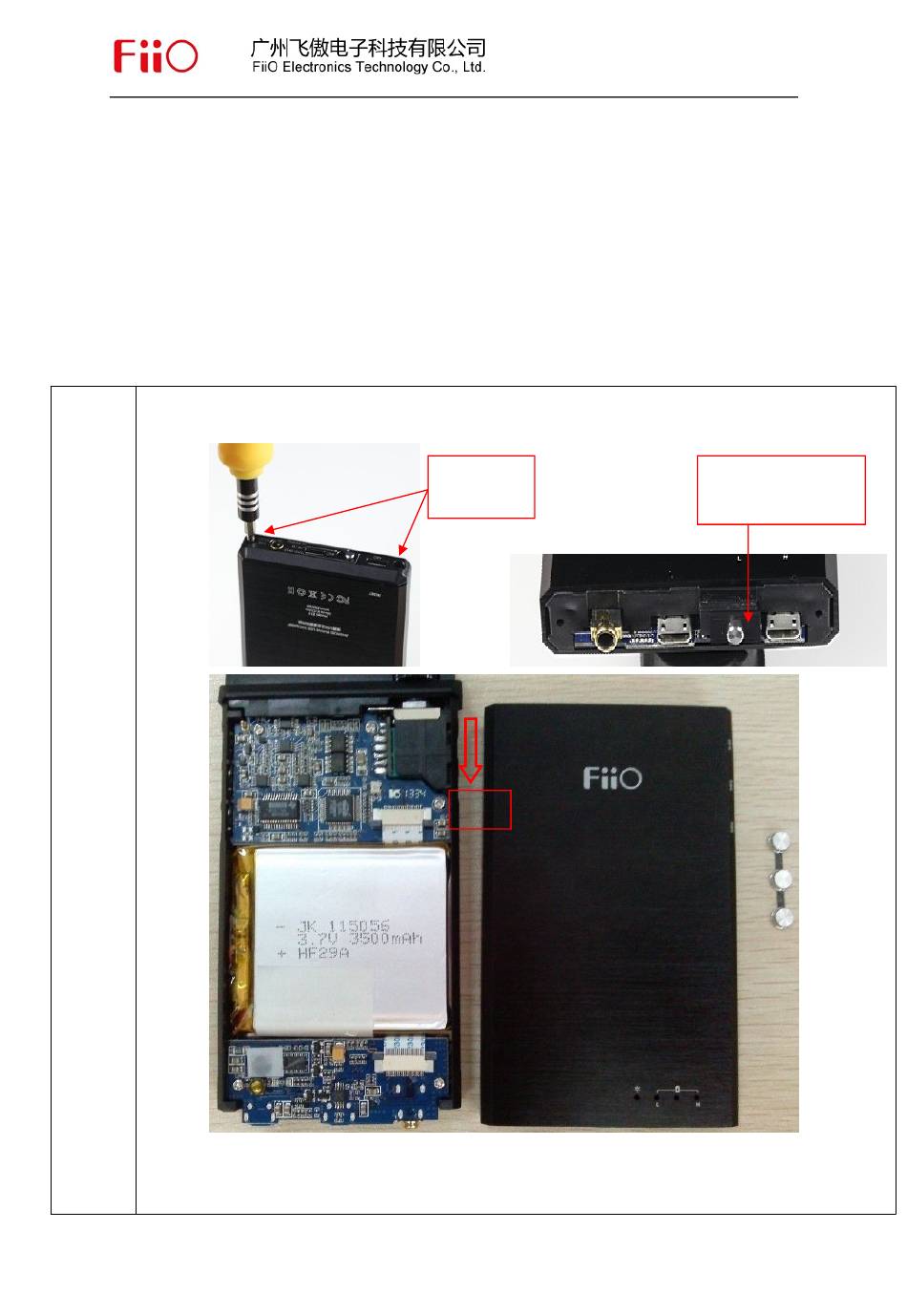

1. Loose the two screws at the bottom; take out the rear pushbutton; then push the mullion downwards.
As shown below:
Details
Maintenance Instruction
end users
Loose the
two screws
Push
File category: [Maintain Instruction]
Code NO.: 5510031
Date: 2014-02-12
Take out the rear
pushbutton
end
Advertisement
Related Manuals for Fiio E18
Summary of Contents for Fiio E18
- Page 1 Readers: FiiO Official Sales Agents, end users Maintenance Instruction of Replacing E18's Battery & Main Board In order to save the shipping cost sending the defective item back and speed up the after-sales service procedures, we hereby provide this maintenance instruction to guide sales agents or users to repair/renew the products’...
- Page 2 Maintenance Instruction 2-a. (Replacing battery): By using cross-head screwdrivers, take out the two screws as shown in the following picture: Take out the two screws 2-b. (Replacing battery): Turn over the small main board; take out the foam pad and the battery button; stick some double faced adhesive tape to the new battery and then put it into the battery place.
- Page 3 Maintenance Instruction 2. Fasten the two screws (2-a). 3-a. (Replacing main board): By using the nipper pliers (put some fabric things on two ends to avoid any damage to the product), clip the front pushbutton and pull out by turning upwards, then to the right to take out the front damper by tweezers or just fingernail, see picture below: To the right to take out the front damper...
- Page 4 Maintenance Instruction 3-d. (Replacing main board): Open the base button, take out the flat cable; take out the six screws and the small main board, as shown below: Take out the six screws Small main board Open the base button, take out the flat cable 3-e.
- Page 5 Maintenance Instruction 3-f. (Replacing main board): Loose the screw nut, and use soldering iron to take out the potentiometer’s hardware plate, as shown below: 3-e. (Replacing main board): Use soldering iron to take out the potentiometer, and then take out the big main board, see below: 3-h.
- Page 6 Maintenance Instruction Approved by: James 2014/02/12...
