Fiio ALPEN E17 User Manual

Fio ALPEN
Model No.: E17
User manual of products
Read this instruction carefully before using the product

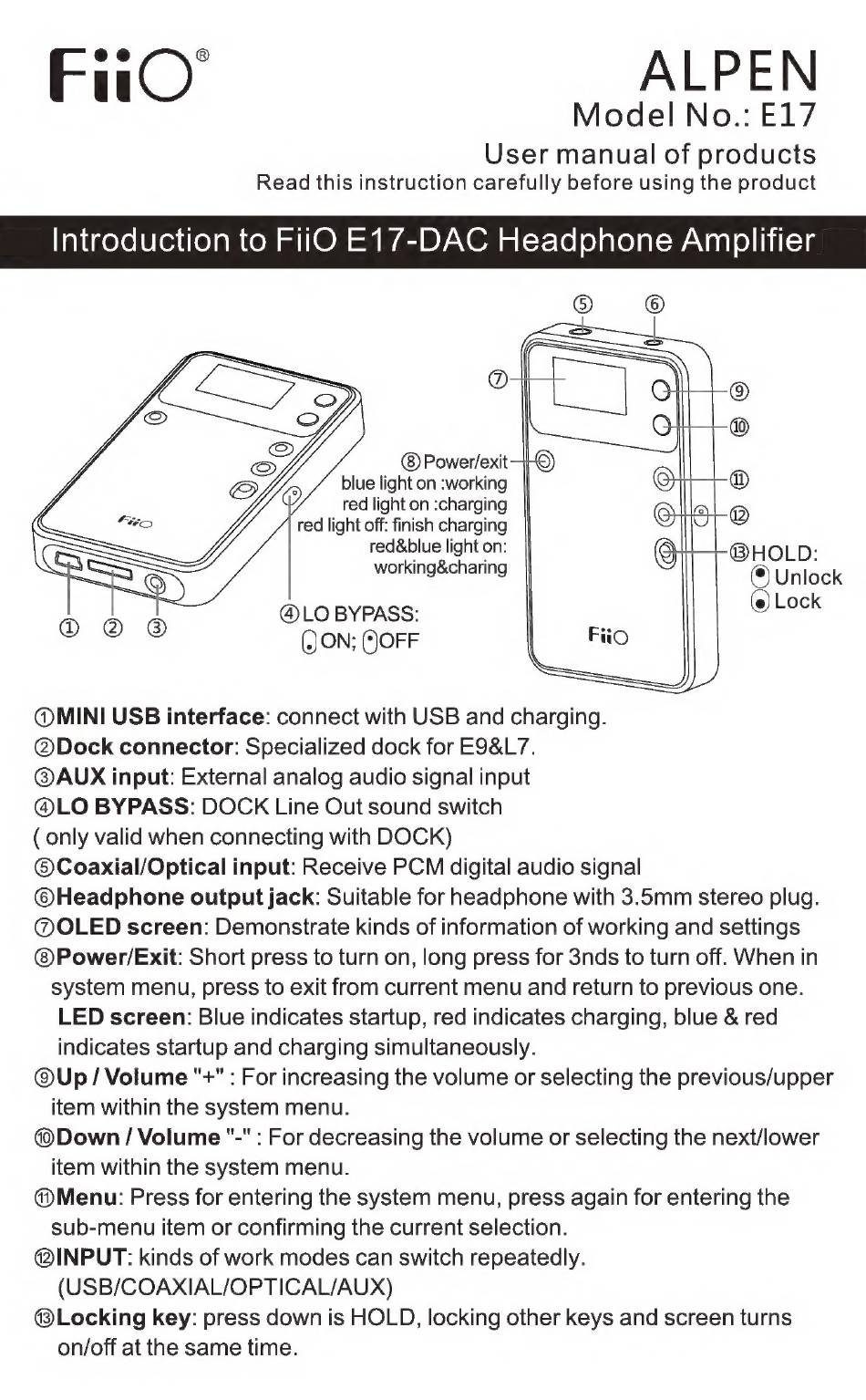

Introduction to FiiO E17-DAC Headphone Amplifier
AR
Power/exit HO)
blue light on :working OH1—0
red light on :charging ©
red light off: finish charging
red&blue light on: On :
working&charing
as
| @LO BYPASS:
=J
@MINI USB interface: connect with USB and charging.
@Dock connector: Specialized dock for E9&L7.
@AUX input: External analog audio signal input
@LO BYPASS: DOCK Line Out sound switch
( only valid when connecting with DOCK)
®Coaxial/Optical input: Receive PCM digital audio signal
@Headphone output jack: Suitable for headphone with 3.5mm stereo plug.
@OLED screen: Demonstrate kinds of information of working and settings
@®Power/Exit: Short press to turn on, long press for 3nds to turn off. When in
system menu, press to exit from current menu and return to previous one.
LED screen: Blue indicates startup, red indicates charging, blue & red
indicates startup and charging simultaneously.
@®Up/ Volume "+" : For increasing the volume or selecting the previous/upper
item within the system menu.
Down / Volume "-" : For decreasing the volume or selecting the next/lower
item within the system menu.
@Menu: Press for entering the system menu, press again for entering the
sub-menu item or confirming the current selection.
@INPUT: kinds of work modes can switch repeatedly.
(USB/COAXIAL/OPTICAL/AUX)
®Locking key: press down is HOLD, locking other keys and screen turns
on/off at the same time.
