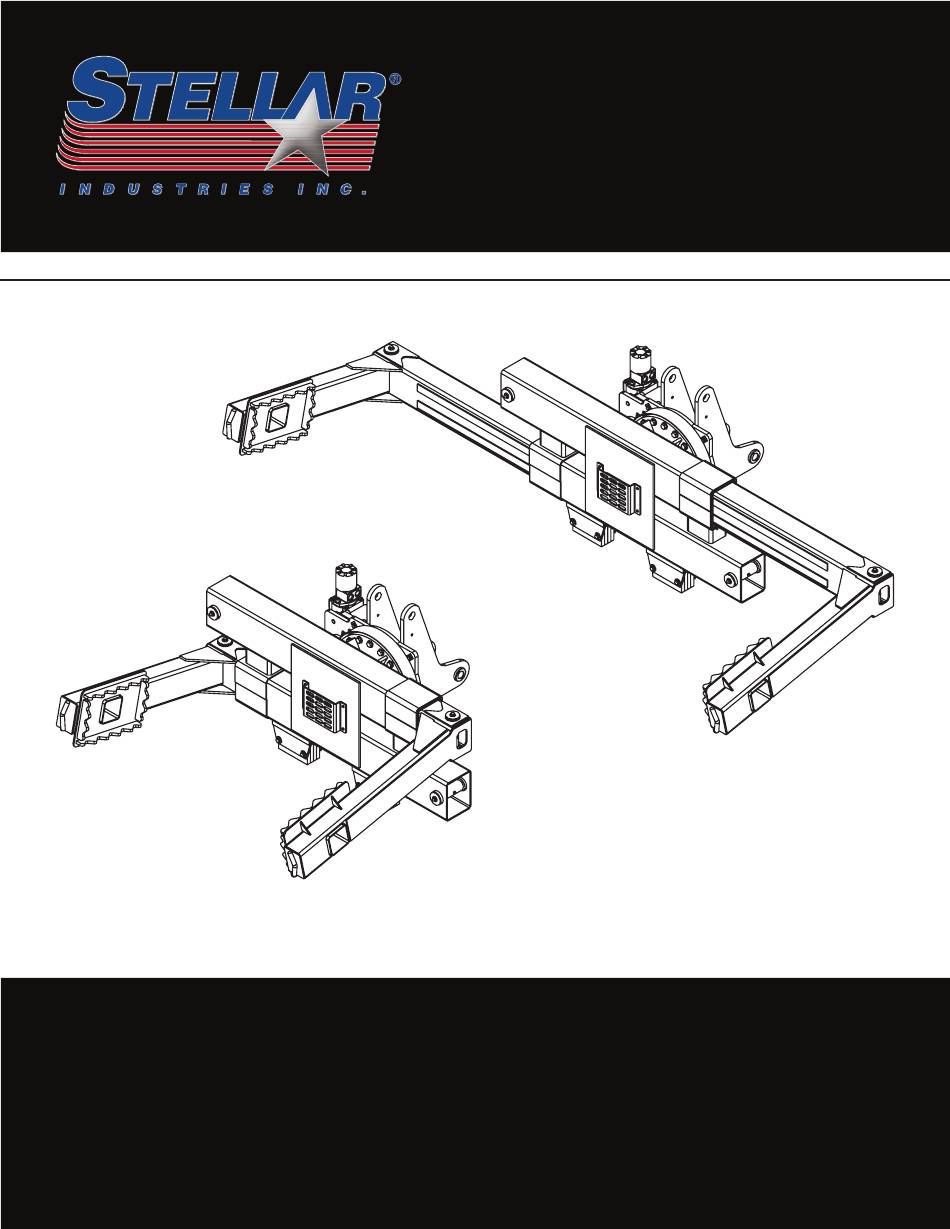

TireMan 4110
Owner's Manual
Installation • Assembly Drawings • Parts
Notice: A copy of this manual must remain with the equipment at all times.
For a printable download copy, please visit: www.stellarindustries.com
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: 641-923-2811
Subject to Change without Notification.
Rev 1
www.stellarindustries.com
© 2021 Stellar Industries, Inc.
PN 90308
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for stellar labs TireMan 4110
Summary of Contents for stellar labs TireMan 4110
- Page 1 TireMan 4110 Owner’s Manual Installation • Assembly Drawings • Parts Notice: A copy of this manual must remain with the equipment at all times. For a printable download copy, please visit: www.stellarindustries.com Stellar Industries, Inc. 190 State Street PO Box 169...
- Page 2 Model TM4110 Manual Revisions Date of Revision Section Revised Description of Revision WARNING Operating, maintaining, and servicing a Stellar product may expose you to chemicals including, but not limited to, engine exhaust, carbon monoxide, phthalates, and lead. These chemicals are known to the State of California to cause cancer and birth defects (or other reproductive harm).
-
Page 3: Table Of Contents
Table of Contents Introduction ..........................iv Model TM4110 Specifications ....................1 TM4110 Dimensional Layout ....................2 General Installation ........................3 Installer Notice ........................3 Torque Data Chart ......................... 4 Hydraulic Installation ........................ 5 Hydraulic Pressure Settings ...................... 6 Face Seal/O-Ring Size Chart ....................6 Hydraulic Kit - PN 67411 ...................... -
Page 4: Introduction
Introduction A copy of this manual is provided with every tire manipulator and can be found in the hard plastic manual case that is installed on the chassis. A copy of this manual shall remain with the tire manipulator at all times. Throughout the manual, three signal words will be used to bring attention to important items: NOTICE... -
Page 5: Model Tm4110 Specifications
Model TM4110 Specifications 19’(5.79m) ROTATION 4600lbs(2086kg) Capacity: 4,600 lbs @19 ft (2,086 kg @ 5.79m) Clamping Span: Fixed Pads - 48” to 110” (121.92 cm to 279.4 cm) Rotating Pads - 47" to 109" (119.38 cm to 276.86 cm) Optional Pad Extension: 29”... -
Page 6: Tm4110 Dimensional Layout
TM4110 Dimensional Layout 110” - Fixed Pads 109” - Rotating Pads 48” - Fixed Pads 47” - Rotating Pads Page 2 | Stellar TM4110 TireMan Owner’s Manual ®... -
Page 7: General Installation
General Installation This chapter is designed to serve as a general guide for the installation of a Stellar TM4110 on a Stellar Service Crane. Each installation is considered unique so certain portions of this chapter may or may not apply to your direct application. If a question should arise during the installation process, please contact Stellar Customer Service at (800) 321 3741. -
Page 8: Torque Data Chart
Torque Data Chart When using the torque data in the chart, the following rules should be GRADE 5 GRADE 8 GRADE 9 observed: • Bolt manufacturer’s particular specifications should be consulted Size Bolt DIA Plain Plated Plain Plated Plated when provided. (DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) 5/16-18... -
Page 9: Hydraulic Installation
Hydraulic Installation Never modify or alter any of the equipment, whether mechanical, electrical, or hydraulic, without Stellar Industries’ approval. WARNING Do not touch or grab any hoses that could be under pressure. Release system pressure before attempting to make adjustments or repairs. Do not attempt service or repair when PTO is engaged. -
Page 10: Hydraulic Pressure Settings
Hydraulic Pressure Settings Main Relief 3200 psi Pressure (psi) Function Flow (gpm) Extend Retract Inner 10.6 3000 3000 Outer 10.6 3000 3000 Extension 3000 3000 Rotation 1700 1700 TM Rot 2500 2500 TM Pad Rot 3000 3000 TM Clamp 3000 3000 Face Seal/O-Ring Size Chart Hose... -
Page 11: Hydraulic Kit - Pn 67411
Hydraulic Kit - PN 67411 PN 67411 Stellar TM4110 TireMan Owner’s Manual | Page 7 ®... - Page 12 Hydraulic Kit/w Rotating Pads - PN 63809 PN 63809 Page 8 | Stellar TM4110 TireMan Owner’s Manual ®...
-
Page 13: Decal Placement - Pn 35432
Decal Placement - PN 35432 PN 35432 ITEM PART No. DESCRIPTION 38664 DECAL CAPACITY TM4110 35113 DECAL TM4110 TIREMAN ROATATION 35114 DECAL TM4110 RATED LOAD 54598 DECAL IDENTIFICATION TM4110 53850 DECAL STELLAR LOGO 4.00X11.5 Stellar TM4110 TireMan Owner’s Manual | Page 9 ®... -
Page 14: Tm4110 Standard Breakdown - Pn 61223
TM4110 Standard Breakdown - PN 61223 GEAR BOX REPLACEMENT KIT 39963 C-BALANCE VALVE C6184 CYLINDER SEAL KIT 38974 CYLINDER SERIAL NUMBER LOCATION Page 10 | Stellar TM4110 TireMan Owner’s Manual ®... -
Page 15: Tm4110 Standard Bill - Pn 61223
TM4110 Standard Bill - PN 61223 PN 61233 C6106 NUT 0.50-13 HHGR5 NYLOC 33944 GEARBOX 010(EAR 02356) D1315 CAP SCR 0.25-20X1.00 FHSH CAP 33945 TURNTABLE BEARING 450-05110-1 0333 NUT 0.25-20 HHGR5 NYLOC 51650 BODY TM4110 ROT PADS 0332 CAP SCR 0.25-20X1.75 HHGR5 8621 CLAMP HOSE/TUBE AG-3 0486... -
Page 16: Tm4110 W/Rotation Pads Breakdown - Pn 61386
TM4110 w/Rotation Pads Breakdown - PN 61386 GEAR BOX REPLACEMENT KIT 39963 16 12 C-BALANCE VALVE C6184 CYLINDER SEAL KIT 38974 CYLINDER SERIAL NUMBER LOCATION C-BALANCE VALVE 9803 CYLINDER SEAL KIT 1099 CYLINDER BUSHING 16067 BUSHINGS INCLUDED IN 51344/51819 Page 12 | Stellar TM4110 TireMan Owner’s Manual ®... -
Page 17: Tm4110 W/Rotation Pads Bill - Pn 61386
TM4110 w/Rotation Pads Bill - PN 61386 PN 61233 0333 NUT 0.25-20 HHGR5 NYLOC 0332 CAP SCR 0.25-20X1.75 HHGR5 33944 GEAR BOX TM4110 008-00253-1 33945 TURNTABLE BEARING 450-05110-1 8621 CLAMP HOSE/TUBE AG-3 51650 BODY TM4110 ROT PADS 39545 WEAR PAD TM4110 BACK 28034 ANGLE WLDMT BUMPER TM6120 61387... -
Page 18: Mounting Kit - Pn 61401
Mounting Kit - PN 61401 PN 61401 35102ZP PIN TEAR DROP 1.50X9.06 0067 BUSHING BPC24DXR24 1.50X1.50 C6353 WASHER 0.38 SAE FLAT YELLOW GR8 13573 CAP SCR 0.38-16X1.00 HHGR8 8621 CLAMP HOSE/TUBE AG-3 0343 WASHER 0.31 USS FLAT ZINC 61404ZP PIN TEAR DROP 1.50X11.06 16067 BUSHING BPC24DXR16 1.50X1.00 &... -
Page 19: Optional Pad Extensions - Pn 35434
Optional Pad Extensions - PN 35434 PN 35434 ITEM PART DESCRIPTION QTY. 34942 PAD EXTENSION TM4110 20" 54922 PIN HITCH 0.63X6.50 W/LYNCH PIN Stellar TM4110 TireMan Owner’s Manual | Page 15 ®... -
Page 20: Optional Pad Extensions - Pn 58288
Optional Pad Extensions - PN 58288 PN 58288 57921 PAD EXTENSION TM4110 TEAR DROP 54922 PIN HITCH 0.63X6.50 W/LYNCH PIN Page 16 | Stellar TM4110 TireMan Owner’s Manual ®... -
Page 21: Optional Pad Extensions - Pn 81015
Optional Pad Extensions - PN 81015 PN 81015 71894 HAIR PIN CLIP 0.19 x 3.75 81010 PAD EXT TM4110 ROT PAD SQUARE PIN 81016 PIN SQUARE PAD EXT TM4110 Stellar TM4110 TireMan Owner’s Manual | Page 17 ®... - Page 24 Subject to Change without Notification. © 2021 Stellar Industries, Inc.
