Digital Signals (Analog-Digital Converter)
By connecting the camcorder to a VCR or 8mm video camcorder, you can convert
analog video/audio signals to digital signals and output the digital signals via the DV
terminal. The DV terminal serves as output terminal only.

Connecting the Devices

Turn off all devices before starting the connections. Unload the tape from the
camcorder. Refer also to the instruction manual of the connected device. Use the
optional CV-150F (4 pin–4 pin) or CV-250F (4 pin–6 pin) DV Cable.
You can also connect a VCR with S (S1)-VIDEO terminal (
AV
86
Converting Analog Signals into

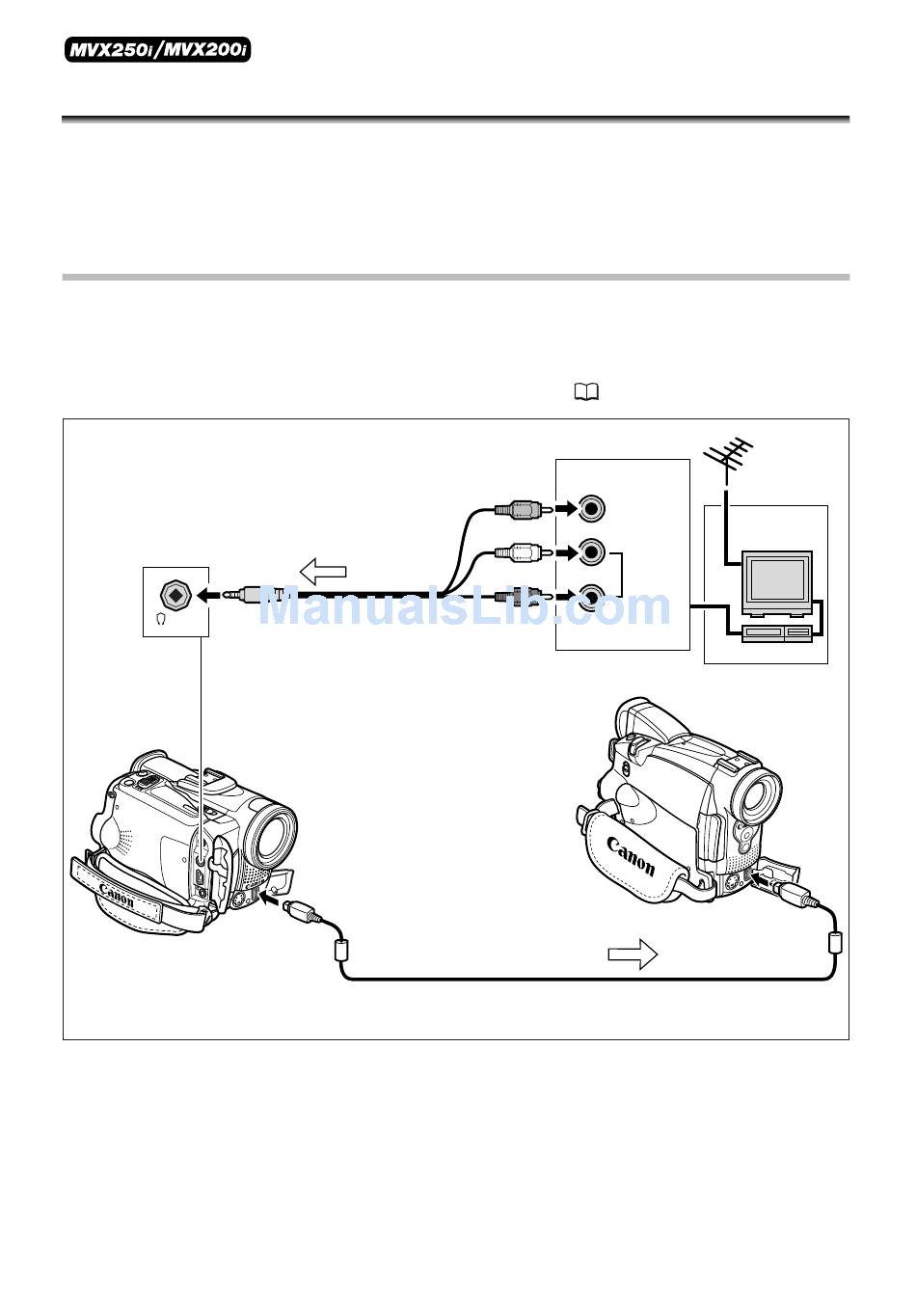

Signal flow
STV-250N Stereo Video
Cable (supplied)
35).
VIDEO
L
AUDIO
R
Signal flow
DV Cable (optional)
