O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. To make assembly easier, use the Hardware Identifier on page 2 to identify and sort all
fasteners. Check all cartons for kits. All hardware may not be located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes
may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to
tighten them.
5. Tools required for assembly: Phillips Screwdriver, Two 9/16 Wrenches, Two 7/16 Wrenches.
Note: Adjustable wrenches can be substituted for wrenches.
6. Save this instruction manual and your proof of purchase (receipt) in the event that the
manufacturer has to be contacted for replacement parts.
Please Do Not Return This Product To The Store!
Contact Escalade
Phone:
1-866-873-3528
Fax:
1-866-873-3533
E-mail:
tabletennis@escaladesports.com
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Sports customer service department at:
®
SPORTS PRODUCT INFORMATION
Toll – Free !
Toll – Free !
www.escaladesports.com
TECHNICAL ASSISTANCE
FREQUENTLY ASKED QUESTIONS

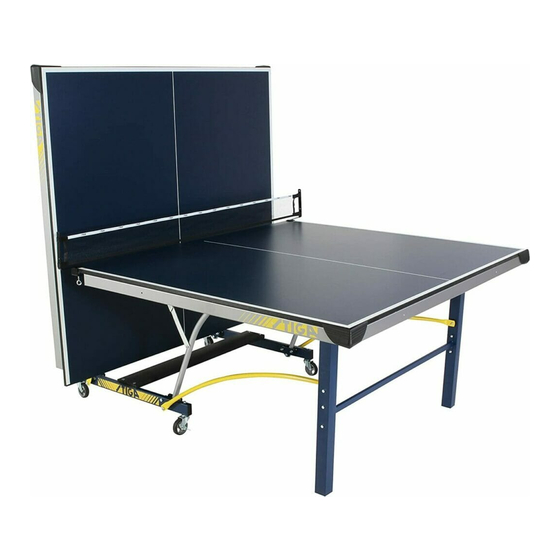

TABLE TENNIS TABLE
MODEL NO.
T8780Q
2L-4153-00
2013 Escalade Sports
Ò Ò
Ó
Advertisement
Related Manuals for Stiga Play The Best T8780Q
Summary of Contents for Stiga Play The Best T8780Q
- Page 1 TABLE TENNIS TABLE MODEL NO. T8780Q O W N E R ' S M A N U A L 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step. 2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts.
-
Page 2: Hardware Identifier
HARDWARE IDENTIFIER 1/4-20 Nyloc 3/8-16 x 3 1/2 Hex Head Bolt Locknut (Qty. 4) (Qty. 8) 3/8-16 Nyloc 1/4-20 X 1 1/2 Phillips 1/4-20 X 2 3/4 Hex Head Bolt Locknut Truss Head Screw (Qty. 4) (Qty. 4) (Qty. 4) 1/4-20 Wing Nut #8 X 9/16... - Page 3 1. Attach Wood Bottom Board (#15) to Caster Beam Assemblies (#7) as shown in Figure 1. Turn Caster Beams as shown and attach board with four READ AND FOLLOW ALL ASSEMBLY, OPERATING, AND Carriage Bolts (#31) and four Wing Nuts (#32). SAFETY INSTRUCTIONS CAREFULLY.
- Page 4 3. Lay Table Top (#1) painted side down, on a smooth, flat surface. Use the shipping container to protect the painted surface of table top. 4. Rotate U-support (#21) that is on bottom of Table Top until you see the screw holes in the slots of U- clips (#22).
- Page 5 7. Attach Table Top Assembly to Base Assembly as shown in Figure 4. Pivot Strut Tubes (#17) up as shown; then, with AT LEAST TWO (2) ADULTS ARE NEEDED TO at least one adult on each side of Table Top, lift top and COMPLETE THE REST OF THIS ASSEMBLY! WHEN ASSEMBLING TOPS TO BASE, HANDLE TOP align ends of U-support tube (#21) with tops of Strut...
- Page 6 8. Secure U-support tube (#21) to Strut Tubes (#17) with two Screws (#33) as shown in Figure 5. Align holes in U-support with holes in DO NOT OPEN THE TABLE TO PLAYING POSITION UNTIL BOTH TOPS ARE Strut Tubes and thread screw (#33) into hole in Strut Tube (#17). INSTALLED! DO NOT LEAVE TABLE Tighten screws all the way but be careful not to over tighten as you STANDING UNATTENDED.
- Page 7 If you want to see a video on how to position hinge (#18) go to: http://www.escaladesports.com/customer-service/videos.html DO NOT OPEN THE TABLE TO PLAYING POSITION UNTIL BOTH TOPS ARE INSTALLED! DO NOT LEAVE TABLE Scan with your smartphone: STANDING UNATTENDED. IT COULD BE KNOCKED OVER CAUSING SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
- Page 8 OPENING AND CLOSING INSTRUCTIONS CAUTION: EXERCISE CAUTION IN OPENING/CLOSING TABLE. SMALL CHILDREN, OR CHILDREN NOT PROPERLY INSTRUCTED IN ITS USE, MUST NOT BE ALLOWED TO OPEN/CLOSE TABLE. IMPROPER HANDLING AND MISUSE CAN RESULT IN SERIOUS INJURY OR DAMAGE. DO NOT CLIMB, STAND, OR JUMP ON TABLE. MOISTURE AND CONDENSATION WILL DAMAGE PLAYING SURFACE OF THIS TABLE.
-
Page 9: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY This consumer warranty extends to the original consumer purchase of any ESCALADE ® SPORTS Product (hereinafter referred as the "Product"). WARRANTY DURATION: This Product is warranted to the original consumer purchase of a period of one (1) year from the original purchase. - Page 10 Replacement Parts List for Model Number T8780Q Key# Part # Description Qty. 4A-5434-00 5/8" BLUE TOP ONLY 2S-6715-14 SIDE RAIL - RIGHT HAND 2S-6716-14 SIDE RAIL - LEFT HAND 2S-6714-12 END RAIL 1B-4082-99 #8 X 9/16 SHEET METAL SCREW 3M-6273-00 U-SUPPORT CLIP (PLASTIC) 4A-7609-05 CASTER BEAM ASSEMBLY...
