O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly.
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. Do not tighten hardware until instructed to do so.
holes may not align and parts may not easily fit together. Leave locknuts slightly loose until you are
instructed to tighten them.
4. Tools required for assembly:
Note: Adjustable wrenches can be substituted for wrenches.
Please Do Not Return This Product To The Store!
Contact Escalade
Phone:
1-800-467-1245
Fax:
1-866-873-3533
E-mail:
tabletennis@escaladesports.com
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
Phillips Screwdriver, Two 9/16" Wrenches, Two 7/16" Wrenches.
®
Sports customer service department at:
®
SPORTS PRODUCT INFORMATION
Read each step completely before beginning
If hardware is tightened too soon, mounting
Toll
Free !
Toll
Free !
www.escaladesports.com
TECHNICAL ASSISTANCE
FREQUENTLY ASKED QUESTIONS

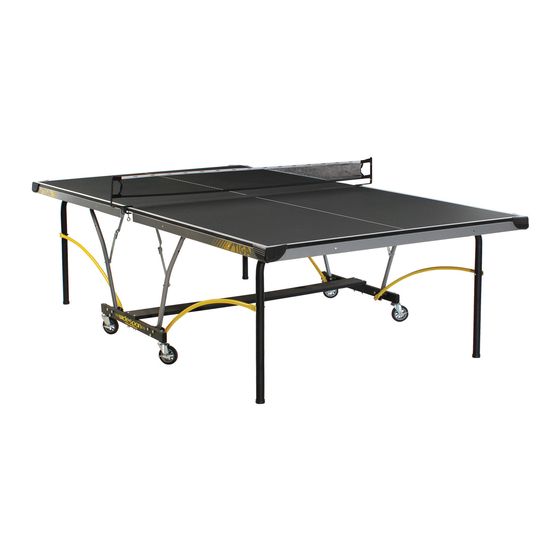

TABLE TENNIS TABLE
MODEL NO.
T8730 (ST3000)
2L-5027-02
Ó Ó
Ò Ò
2008 Escalade Sports
