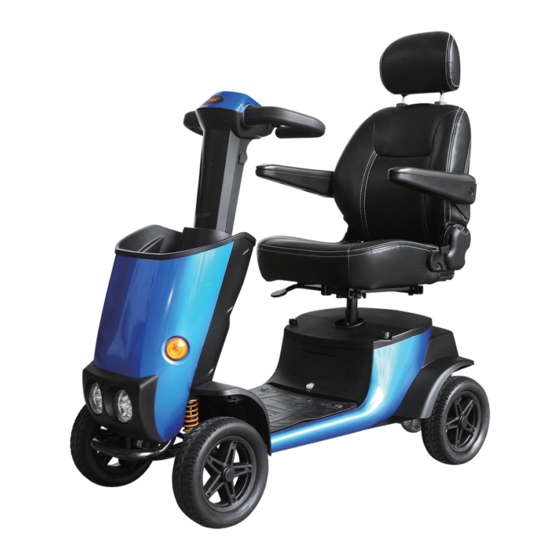

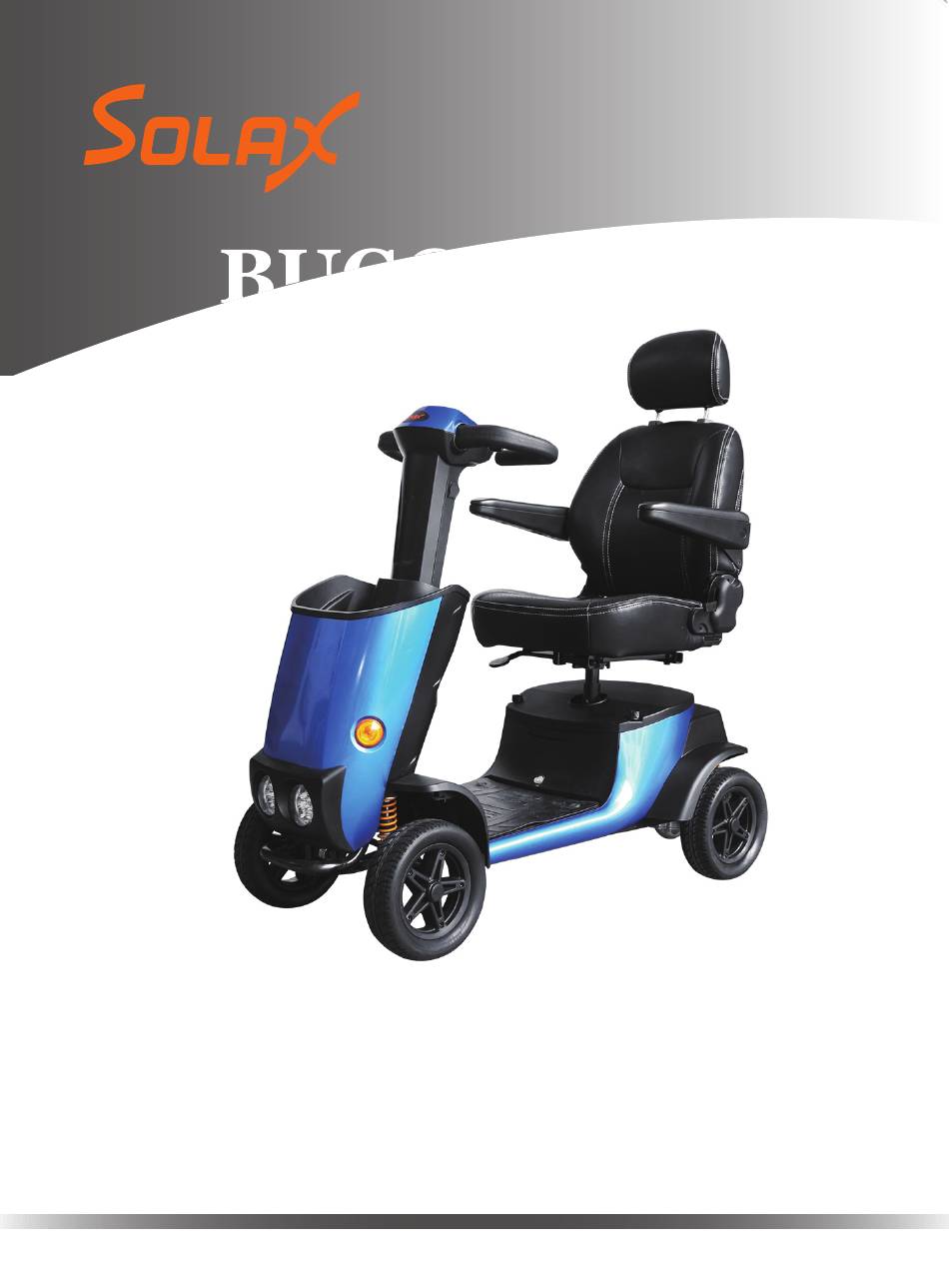

- Page 1 BUGGY PLUS Four-Wheel Outdoor Rear Wheel Drive Scooter Please read this Owner’s Manual before operating your scooter for the first time. Product images may vary and will be subject to real products received.
-
Page 3: Table Of Contents
OWNER’S MANUAL CONTENTS 1.Outline----------------------------------------------------------------------------------3 2.Product Introduction----------------------------------------------------------------4 2.1 Parts------------------------------------------------------------------------------4 2.2 Technical Specifications-----------------------------------------------------5 3.Safety Guideline---------------------------------------------------------------------6 3.1 Safety Notices------------------------------------------------------------------6 3.2 EMI & RFI Information------------------------------------------------------12 3.3 Labeling Instruction---------------------------------------------------------13 4.Operation Instruction--------------------------------------------------------------14 5.Batteries & Charging--------------------------------------------------------------18 6.Operation Procedure--------------------------------------------------------------20 7.Driving Instruction------------------------------------------------------------------21 8.Maintenance, Repair and Storage--------------------------------------------22 9.Warranty Card----------------------------------------------------------------------25 Product images may vary and will be subject to real products received. -
Page 4: Outline
Please read this manual carefully before operating the scooter for the first time. This manual is applicable to the Four-Wheel Outdoor Rear Wheel Drive Scooter- Buggy Plus. If you do not understand all of the content completely or you need further assistance, please contact your scooter supplier: Dongguan Prestige Sporting Goods Company Limited. -
Page 5: Product Introduction
OWNER’S MANUAL Ｓ５０２３ 2. PRODUCT INTRODUCTION 2.1 Parts Handle Group Front Wheel Rear Bumper Charging Port Storage Bucket Rear Shroud Rear Signal Indicator Gas Spring Switch Front Signal Indictor Tail Shroud 13 16 Seat Assembly Release Lever Front Shroud Rear Wheel Control Panel Headlight Anti-Tip Wheel... -
Page 6: Technical Specifications
OWNER’S MANUAL Ｓ５０２３ 2.2 Technical Specifications Model S5023 Weight Capacity 150kg Tyres 10inches of front wheel and rear wheel Speed 0-8 km/h Range Up To 30km Battery 12V/33Ah x 2pcs Charger 24V/5A Controller 24V/70A Motor 350W Brake System Electromagnetic Brake Drive System Rear Wheels Drive Weight (with battery) -
Page 7: Safety Guideline
OWNER’S MANUAL Ｓ５０２３ 3.SAFETY GUIDELINE 3.1 Safety Notices 1. Please read this manual carefully before operating the scooter for the first time. 2. Please assess the personal health of the user before driving. The following conditions are not suitable for driving: sick or physically unwell and visually impaired, especially those with impaired upper limbs;... - Page 8 OWNER’S MANUAL Ｓ５０２３ F I G . 1 F I G .2 Don’t leave children playing Do not operate your alone nearby the mobility scooter. scooter after consuming alcohol. D A N G ER F I G . 3 F I G .4 Do not use cell phone or any Make sure there is no obstacle mobile device while riding the scooter.
- Page 9 OWNER’S MANUAL Ｓ５０２３ F I G .7 F I G .8 Don’t attempt to drive on Do not leave hands and slopes more than 12 degrees. legs off improper location. Safety Belt F I G .9 F I G .10 No driving in snow or slippery area.
- Page 10 OWNER’S MANUAL Ｓ５０２３ 3. Make sure scooter in good condition before driving. Do not suddenly turn off power switch while the scooter is running. 4. Failure to note the warnings in this manual may cause personal injury. If you are unable to understand this manual, please contact our local dealer, or technician for assistance.
- Page 11 20. When the scooter is on the elevator or other lifting products, please do not sit on the scooter. This scooter has not been designed for this purpose, and Solax is not responsible for any damage or loss.
- Page 12 Chapter 2.2 Technical Specification. The maximum weight capacity includes the user and any accessories. 2. Exceeding the maximum weight capacity will void your warranty. Solax will not hold responsible for injuries damages resulting from failure to observe weight capacities.
-
Page 13: Emi & Rfi Information
OWNER’S MANUAL Ｓ５０２３ 3.2 EMI & RFI Information Electromagnetic interference (EMI) tests have shown to produce adverse effects on the performance and control of electrically powered mobility devices. EMI can be produced from different sources such as cellular phones, two-way radios, radio station, television stations, amateur radio transmitters (HAM), wireless computer links, microwave signals, paging transmitters, and transceivers used by emergency vehicles. -
Page 14: Labeling Instruction
OWNER’S MANUAL Ｓ５０２３ 3. 3 Labeling Instruction BRAKE... -
Page 15: Operation Instruction
OWNER’S MANUAL Ｓ５０２３ 4.OPERATION INSTRUCTION Driving And Braking 1. Insert the key to turn on the key ignition. 2. Pull speed levers to forward and backward. 3. Right lever is for forward control whereas left lever for backward control (FIG 1). 4. - Page 16 OWNER’S MANUAL Ｓ５０２３ Gas Spring Switch Press Gas Spring Switch to adjust the angle for handle bar (FIG 2). When release gas spring handle, then handle bar will naturally be locked tightly. Do not adjust the angle of handle while driving the scooter. Gas Spring Switch FIG.2 Scooter is never allowed to operate when the handle is not fixed and locked.
- Page 17 OWNER’S MANUAL Ｓ５０２３ Control Panel FIG.4 1.Power Indicator: Battery and charging indicator. 2.Speed Dial: tortoise means lower speed and rabbit means higher speed. 3.Head Light: press the switch to turn on the head light and press again to turn it off. 4.Left Signal Indicator: press the switch to turn on the left signal indicator, and press again to turn it off.
- Page 18 OWNER’S MANUAL Anti-Tip Wheel The anti-tip wheels are designed to prevent from scooter overturn on slope. 1. Check the anti-tip wheels periodically. 2. Never remove anti-tip wheels without the assistance of technician. Electromagnetic Brake Lever The scooter is equipped with Electromagnetic brake. Please do not switch off the brake whilst in operation.
-
Page 19: Batteries & Charging
OWNER’S MANUAL 5.BATTERIES & CHARGING Charging Your Scooter Turn off the power before charging. To charge your scooter, plug the charger into the scooter, and then into the electrical outlet. When the battery is fully charged remove the charger from the scooter. - Page 20 OWNER’S MANUAL Battery Usage The product uses a maintenance-free sealed lead-acid battery without adding water. There is no need to check the amount of battery liquid and add water. The battery must be fully charge prior to any trip. 1. Under normal circumstances, it takes 1-8 hours to charge the battery according to the power consumption.
-
Page 21: Operation Procedure
OWNER’S MANUAL 6.OPERATION PROCEDURE Dear users, thank you very much for your careful reading of the foregoing structure and function of this scooter. Now we will elaborate on the operation procedures of this scooter: 1. If the scooter is newly purchased, please make sure that the scooter has fully charged. -
Page 22: Driving Instruction
OWNER’S MANUAL 7.DRIVING INSTRUCTION 9. Release speed lever the scooter will stop and lock the motor automatically. 10. Other functions of the control panel please refer to Chapter 4. Control Panel. 11. When parking or not using the scooter, please park the scooter in a safe position and pull out the key.Do not leave the key on the scooter. -
Page 23: Maintenance, Repair And Storage
OWNER’S MANUAL 8.MAINTENANCE, REPAIR AND STORAGE There are few parts of solax scooter which require maintenance. The following issues must be checked and maintained periodically: Troubleshooting When the wheel chair is in trouble, please do the following check: ITEM INSPECTION... - Page 24 Check all the wiring insulation condition, including the plug of the charger regularly. Daily Inspection Please check the following items before driving. If any abnormal phenomena are found, please contact the Solax or the local dealer to get help and solve it. ITEM INSPECTION 1.Check the function of the speed lever...
- Page 25 OWNER’S MANUAL Basic Maintenance Instructions Regular maintenance of the electric scooter can extend the service life of the scooter. 1.Seat: use clean cloth can wipe the appearance directly, or use clean wet cloth wring dry after wipe can. 2.Tires: use a clean cloth or soft brush to clean them directly, or use a clean wet cloth or a wet soft brush.
-
Page 26: Warranty Card
OWNER’S MANUAL 9.WARRANTY CARD Solax- Four-Wheel Outdoor Rear Wheel Drive Scooter Warranty Card User Name ID No Address Phone Number Model Serial Number Purchasing Date 12 months warranty from purchase date, Warranty Periods Battery is 6 month warranty Manufacturer Dongguan Prestige Sporting Goods Company Limited Dealer （Stamp or Sign）... - Page 28 Dongguan Prestige Sporting Goods Company Limited 3rd Ind. District, Qiaotou Area, Houjie Town, Dongguan City, Guangdong Province, China Tel：0769-859 22501 Fax：0769-859 22505 E-mail: info@solaxtech.com Web:www.solaxtech.com...
