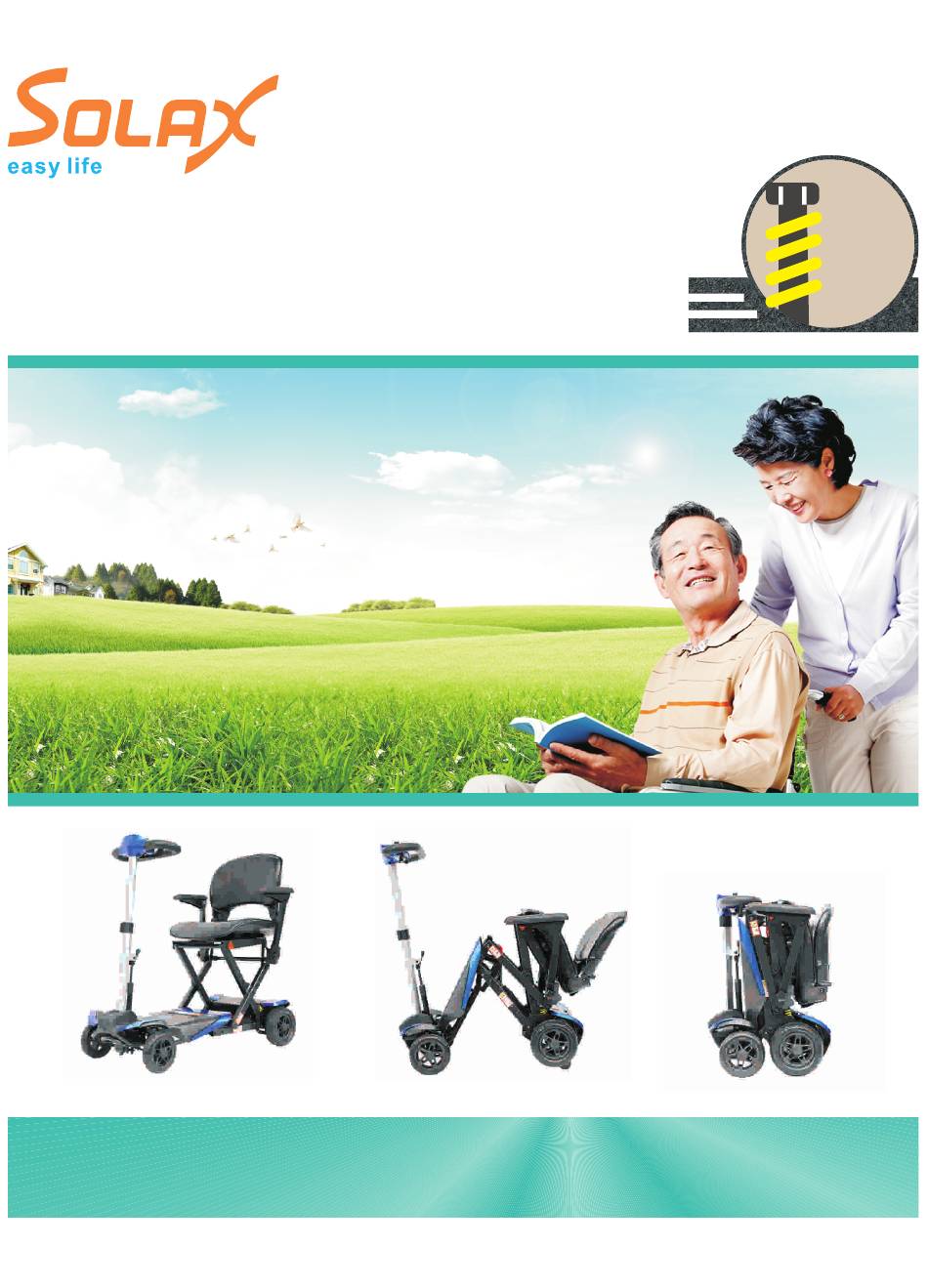

- Page 1 REAR SHOCK ABSORBER Solax Technology Limited-----S302421 Product images may vary and will be subject to real products received. Solax Electric Scooter Instruction Manual...
- Page 3 If you can't understand all of the content comp-letely or you need the assistance, please contact the scooter dealer Electric Scooter or with the following. Solax Technology Limited +86 (0)769 859 22501 +86 (0)769 859 22505 info@solaxtech.com Warning: Failure to note the warnings from this manual will cause your personal injury.
-
Page 4: Table Of Contents
Contents Electric Scooter Feature Guide Product Specifications and Relevant Parameters Main Parts and Relevant Function The Folding and Unfolding Safety Requirements Battery and Battery Charging Operation Instruction Basic Troubleshooting Maintenance... -
Page 5: Electric Scooter Feature Guide

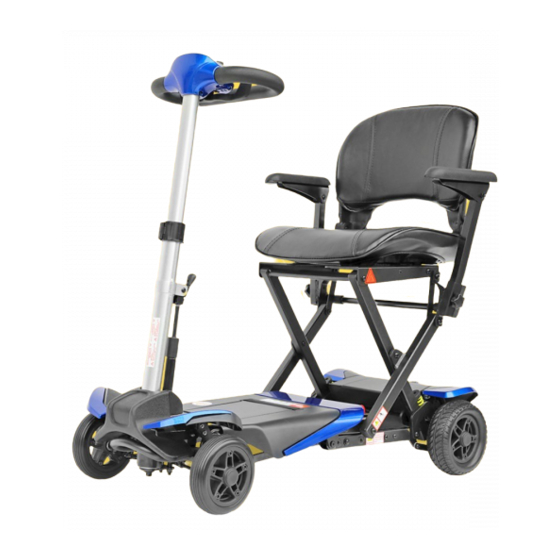

Feature Guide Please refer to the diagram below to identify your scooter parts. Familiarize yourself with the terminology to better understand part references throughout the Owner’s Manual.(Fig. 2 ) REAR SHOCK ABSORBER Fig.2 Control Panel Front Wheel Rotary Locking Handle for Arm Rest Foot Board Adjustable Height Handle... - Page 6 The overall design of The Electric Scooter is full of modern recreational flavor. It's safe and comfortable, easy operation, convenient to be folded and carried, lightweight and steady. It mainly has the following characteristics: 1. The frame is consisting of advanced aluminum alloy with features of light, strong and durable. 2.
-
Page 7: Product Specifications And Relevant Parameters
Product Specifications and Relevant Parameters Fig.4 Unfolded Size Fig.5 Folded Size Specifications Model S302421 Overall Length 0.96 m (37.9 in) Overall Width 0.45 m (17.7 in) Tire Size Front 6 x 1.5 Tires (solid wheels) Tire Size Rear 7 x 2.36 in Maximum Speed 6 km/h (3.7 mph) -
Page 8: Main Parts And Relevant Function
Main Parts and Relevant Function Control Panel The control panel is an operating controlling component, which is mainly to control the connecting and cutting the power, moving forward and backward as well as show the battery level. It consists of power switch (Key switch / rocker switch), speed control switch, direction control lever, battery condition... - Page 9 Power Indicator (Fig.9 ) Switch the rocker switch to［ON］,the power indicator will show the power condition. Green means the power is enough; yellow means the power is weak; red means it needs recharging. Fig.9 Direction Control Lever (Fig.10 ) The direction control lever is used to control the forward and backward.
- Page 10 Controller Controller is fixed in the rear cover and it receives the signal from the control panel and transfers the signal to motor, brake and bulb. Notice: Do not store the controller in the moisture environment. If the controller hasbeen affected by moisture, make sure to dry it before operation.
-
Page 11: The Folding And Unfolding
● Open the outer carton, the remote contorl and scooter has been matched well. ● Put the battery into battery box. "A" mean open. "B" mean close. ● When the remote control didn't match with the scooter, or use another remote contol. ●... -
Page 12: Safety Requirements
Manual for folding:(Fig.23-26 ) Fig.24 Fig.23 1.Pull up the manual switch. 2.keep pulling to fold the car. Fig.25 Fig.26 3.One hand on the front tiller 4.Keep pushing until “click”. the other one on the seat to fold the car. Safety Requirements Driving Surface The Scooter has the best stability under the normal driving conditions(such as dry level ground with the constituent concrete or asphal). - Page 13 Load Capacity Height ≤125 kgs 36 mm FIG.27 Warning: Do not exceed the specify climbing angle (0-12°). Please do follow the manual instruction before operation. Safety precautions ● Do not operate your scooter before you fully read and understand this manual. ●...
-
Page 14: Battery And Battery Charging
Warning: The battery should be protected in freezing temperature! Do not charge the frozen battery. Otherwise, it will damage the battery and may cause personal injury. Warning: Do not drive on freezing, slippery or salty ground, otherwise, you may suffer accident and personal injury. - Page 15 FIG.29 3. Turn off the power switch first when the battery is fully charged. Then take out the DC charging connector before you take out the AC input power socket. Warning: You must turn off the power switch once the battery is fully charged and then take out the plug otherwise you may shorten the working life of the battery.
- Page 16 Following information will offer the safe and reliable charge method. ● If you driving scooter everyday, you should charge it after using. So that it is convenient for you to use it next day. Charging of the battery should be vary from 8 up to 12 hours. ●...
-
Page 17: Operation Instruction
How to store scooter and battery? If you don't operate your scooter, please follow the instructions: ● Charge your battery fully before you store it. ● Disconnect the battery from controller attachment joint. ● Store your scooter in a dry and warm place. ●... -
Page 18: Basic Troubleshooting
If met the problem that you can not solve it by yourself, please contact your dealer for further consult and assistance. Maintenance There are few parts of SOLAX scooter require maintenance. The following issues must be checked and maintained periodically: The connection of the battery and electrodes ●... - Page 19 Solax Technology Limited Electric Vehicle Product Warranty Card User Name ID No. Address Phone No. Model Item No. Purchasing Date 12 months warranty from purchasing date, battery is 6 Warranty Period months warranty Manufacturer Solax Technology Limited Dealer (Stamp or Signture) Phone No.
- Page 20 Solax Technology Limited 3rd Ind. District, Qiaotou Area, Houjie Town, Dongguan City, Duangdong Province, China Email: info@solaxtech.com Web:www.solaxtech.com...
