Dear Customer
Please read this manual carefully before operating
you to operate
Solax-S3021
you need the assistance, please contact the scooter dealer of Solax-3021 or Dongguan Prestige
Sporting Goods Co. Ltd.
TEL：86-769-88918228, E-mail: alex@solaxtech.com.
This manual covers Solax-S3021's main structure characteristics, main components,
function of each part, safety requirements and instructions, battery instructions, matters need
attention, the methods of dealing with emergencies, and scooter's maintenance.
The following symbols used in this manual are to indicate warning and matters need to
pay attention; therefore, it is important for you to fully understand and master the content.
WARNING: Failure to note the warnings from this manual will cause your personal injury.
NOTIFICATION: Failure to note the notification from this manual will damage your
Solax-S3021.
All of the information and pictures in this manual are subject to the factory's products

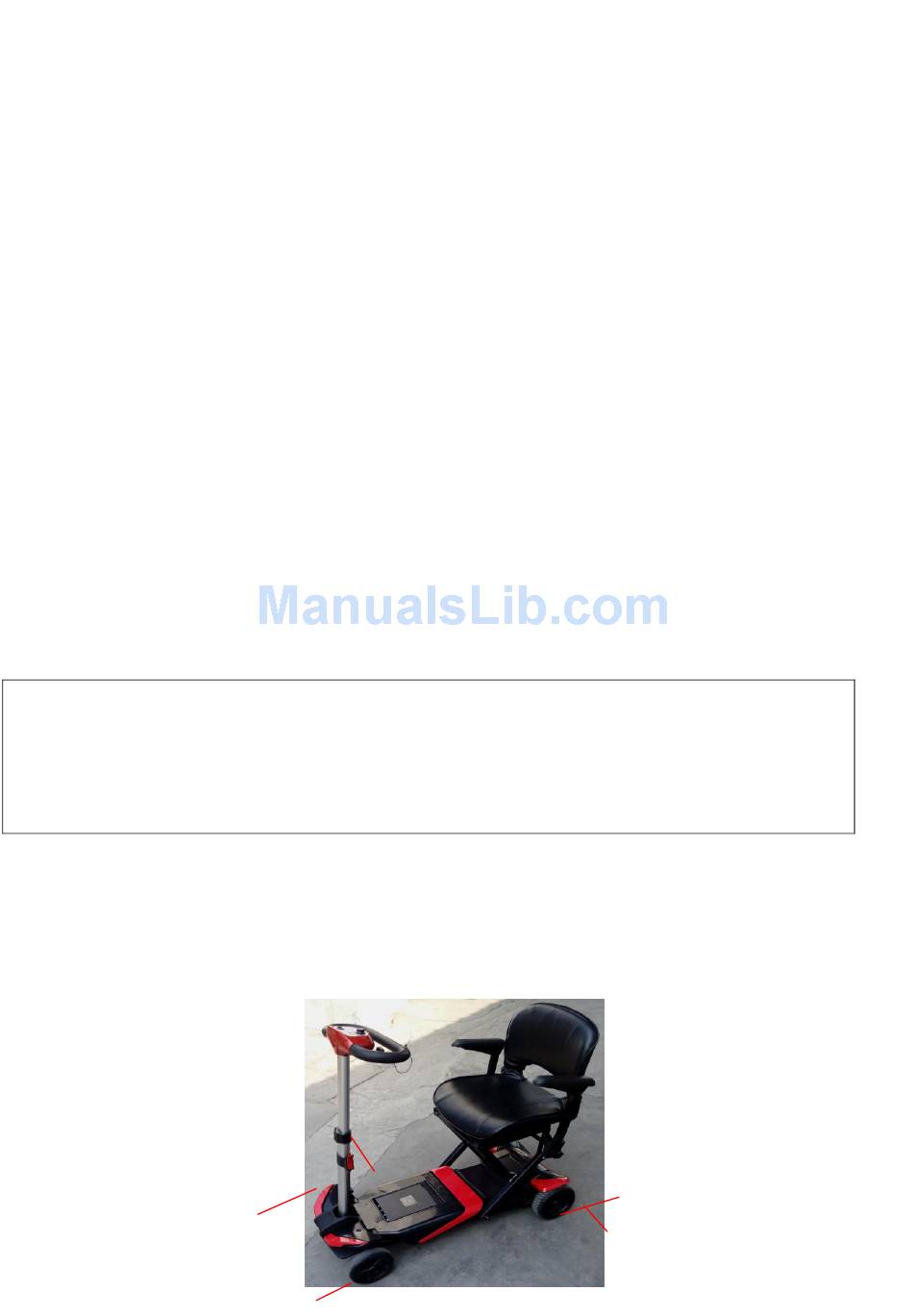

(FIG 1) and only for customer reference. The product will continue to be improved and
modified without prior notice. Please do understand and support us.
Thank you for choosing
smoothly. If you can't understand all of the content completely or
Introduction
Solax-S3021 foldable scooter
Solax-S3021
!
because this manual will help
1
Advertisement
Table of Contents
Related Manuals for Solax S3021
Summary of Contents for Solax S3021
- Page 1 If you can’t understand all of the content completely or you to operate Solax-S3021 you need the assistance, please contact the scooter dealer of Solax-3021 or Dongguan Prestige Sporting Goods Co. Ltd. TEL：86-769-88918228, E-mail: alex@solaxtech.com. This manual covers Solax-S3021’s main structure characteristics, main components, function of each part, safety requirements and instructions, battery instructions, matters need attention, the methods of dealing with emergencies, and scooter’s maintenance.
- Page 2 (FIG 1-S2091-scooter) Finally, we believe that Solax-S3021 will lead you to the comfortable, convenient, and wonderful life. Contents Ⅰ. S3021 Feature Guide …………………………………………………………3-4 Ⅱ. Product specifications and relevant Parameters…………………………5-6 Ⅲ. Main Parts and Relevant Function……………………………………………7-9 Ⅳ. The Folding and Unfolding of S3021………………………………………10-11 Ⅴ.
- Page 3 S3021 Feature Guide Solax-S3021 is mainly composed of the following parts: Front and rear frame, Control panel, Front/Rear cover, Front wheels, Rear wheels, Handle switch, Handle, Drawtube, Release switch, Foldable seat, Seat supporting frame, Foldable armrest, armrest supporting frame, Footboard, Carry handle, Battery, Charger, Motor set.(FIG2)
- Page 4 It’s safe The overall design of Solax-S3021 and comfortable, easy operation, convenient to be folded and carried, lightweight and steady. It mainly has the following characteristics: 1. The frame is consisting of advanced aluminum alloy with features of light, strong and durable.
- Page 5 2. Product specifications and relevant Parameters...
- Page 6 Specifications Model: S3021 Automatic folding scooter Overall Length: 0.93m (36.9in) Overall Width: 0.45m (18.1in) Tire Size Front 6 ″x 1.5″ Tires (Solid wheels): Tire Size Rear 7 ″x 2.36 ″ Maximum Speed: 6km/h (3.7mph) Safe Gradient/ 0-15° Maximum Gradient Range Up To: 20km (13.7mile)
- Page 7 electromagnetic S-drive 45A Drive system： Handlebar: PU foam Maximum weight capacity: 136kg (300ibs) Seat Width: 0.43m (17in) Seat Height (from the ground): 0.56m (22in) Battery : Power Type/ Lithium battery Motor: 24V 120W Battery Charger: 29.4V 2A...
- Page 8 3. Main Parts and Relevant Function Control panel The control panel is an operating controlling component, which is mainly to control the connecting and cutting of the power, moving forward and backward as well as show the battery level. It consists of power switch (rocker switch), speed control switch, direction control lever, battery condition indicator, control panel, top and bottom cover, etc.
- Page 9 「-」 Power on, can drive. 「0」Power off, can’t drive 2. Key switch (FIG 8) Turn the key switch clockwise to ON, can drive. Turn the key switch anticlockwise to OFF, can’t drive ● Please turn the power off when stop driving. WARNING: If the key is removed during use or press the ship type switch to ”0”.
- Page 10 Power indicator（FIG 10） Switch the rocker switch to「-」 ，the power indicator will show the power condition. Green means the power is enough; yellow means the power is weak; red means it needs recharging. Direction control lever（FIG 11） The direction control lever is used to control the forward and backward.
- Page 11 Notice：Do not store the controller in the moisture environment. If the controller has been affected by moisture, make sure to dry it before operation. Brake S3021 install the electromagnetic brake and it can not brake by manual. You can raise the headstock to move the scooter or pull the scooter after fold.
- Page 12 Motor/ Transmission component as a mechanical and electrical part will convert the electrical energy to rear wheel drive. （FIG 15） Remote control Remote control operation: S3021 folding operation 1） Press B button for 2seconds and release （FIG 16-17，scooter will folding 2）...
- Page 13 S3021 unfolding operation Press Abutton for 2 senconds and release Unfolding totally（FIG 18） 四、Folding and unfolding When the remote control is broken or damage the function，you can operate as following: S3021 folding and unfolding operation： （FIG 19-22）...
- Page 14 Note: 1. Do not put your hand in the sacro-iliac jointsin case by task. 2. Do not unfold the scooter before open the release switch. 3021 folding operation: Hold the handle tube and pull upward（FIG 24） ，then the front and rear frame will draw close to the middle fold （FIG 25）...
- Page 15 ● Do not drive the scooter if you can’t tell the condition of the roads. ● SOLAX scooter can stride over an obstacle with a certain height, but you must minimize the speed and slowly drive over the obstacle(FIG 27)
- Page 16 ＜136Kg 60mm Warning: Do not exceed the specify climbing angle(0-15°).Please do follow the manual instruction before operation. Safety precautions ● Do not operate your scooter before you fully read and understand this manual. ● Do not carry passengers or drunk driving when you drive the scooter. ●...
- Page 17 ● Please ensure the safety of the batteries when your scooter is on the other vehicles for transportation. ● Climbing or driving along the edges of roads is forbidden, otherwise, the scooter will be damaged permanently. ● Do not exceed the maximum tolerance gradient when driving. ●...
- Page 18 Warning：Match the charger socket and charger plug properly. Insert one end of the AC power wire into the scoket of household power then insert the other plug into the socket of the charger.(FIG 29) Verify the connection before you turn on the main power switch. Red light indicates power on, orange light indicates on charging and green light means fully charged.
- Page 19 3. Turn off the power switch first when the battery is fully charged. Then take out the DC charging connector before you take out the AC input power socket. Warning：You must turn off the power switch once the battery is fully charged and then take out the plug otherwise you may shorten the working life of the battery.
- Page 20 How often should charge the battery? The charge time depend on the following elements: ● Driving scooter all day. ● Driving scooter occasionally for few times. Following information will offer the safe and reliable charge method. ● If you driving scooter everyday, you should charge it after using. So that it is convenient for you to use it next day.
- Page 21 Why the power of the new battery is weak? Deep-cycle battery uses the unique chemical technology and design. It can be charged quickly and can be used for a long time after full-charged. The battery is fully charged already before leaving the factory, but may change its initial performance during the transportation due to the temperature.
- Page 22 If you don’t operate your scooter, please follow the instructions: ● Charge your battery fully before you store it. ● Disconnect the battery from controller attachment joint. ● Store your scooter in a dry and warm place. ● Avoid to store scooter in temperature variation place. Warning: If battery was frost, it should be kept warming for several days before charging.
- Page 23 ● Please check the tiller quick release is locked or not. Driving Please follow the instructions after you choose your route: ● Please unfold the scooter fully according to the instruction (picture19-23) after you read the manual. ● Unfold the seat to right position, and adjust the tiller for the suitable position, then lock it.
- Page 24 Ⅷ. Basic Troubleshooting The main reason is battery without sufficient capacity or performance declined, and most of the electrical equipment issue can be solved by yourself. Please check the key is inserted into the switch /rocker switch, and keep it “on”. ●...
- Page 25 IX 、Maintenance There are few parts of SOLAX scooter require maintenance. The following issues must be checked and maintained periodically: The connection of the battery and electrodes ● Ensure the electrode connections are tight and have no corrosion. ● The battery should be placed flatly inside the battery holder.
-
Page 26: Warranty Statement
SOLAX ELECTRIC SCOOTER Warranty Card User name ID No. Address Phone No. Model Item No. Purchasing Date 12 months warranty from purchasing date (6 months warranty for Guarantee period battery) Manufacturer Dongguan Prestige Sporting Goods Co. Ltd. Dealer (Stamp/Signature) Phone No./Address Warranty Statement ：... - Page 27 Damages caused by unauthorized refit of the scooter; f. Damages caused by natural disasters such as hurricanes, floods and earthquakes; 1. Warranty stub for dealer SOLAX ELECTRIC SCOOTER Warranty Card User name ID No. Address Phone No. Model Item No.
- Page 28 Consumables are not covered by warranty such as the tires, bearings, bulbs etc. e. Damages caused by unauthorized refit of the scooter; f. Damages caused by natural disasters such as hurricanes, floods and earthquakes; 2. Warranty stub for customer SOLAX ELECTRIC SCOOTER Warranty Card User name ID No.
- Page 29 e. Damages caused by unauthorized refit of the scooter; f. Damages caused by natural disasters such as hurricanes, floods and earthquakes;...
