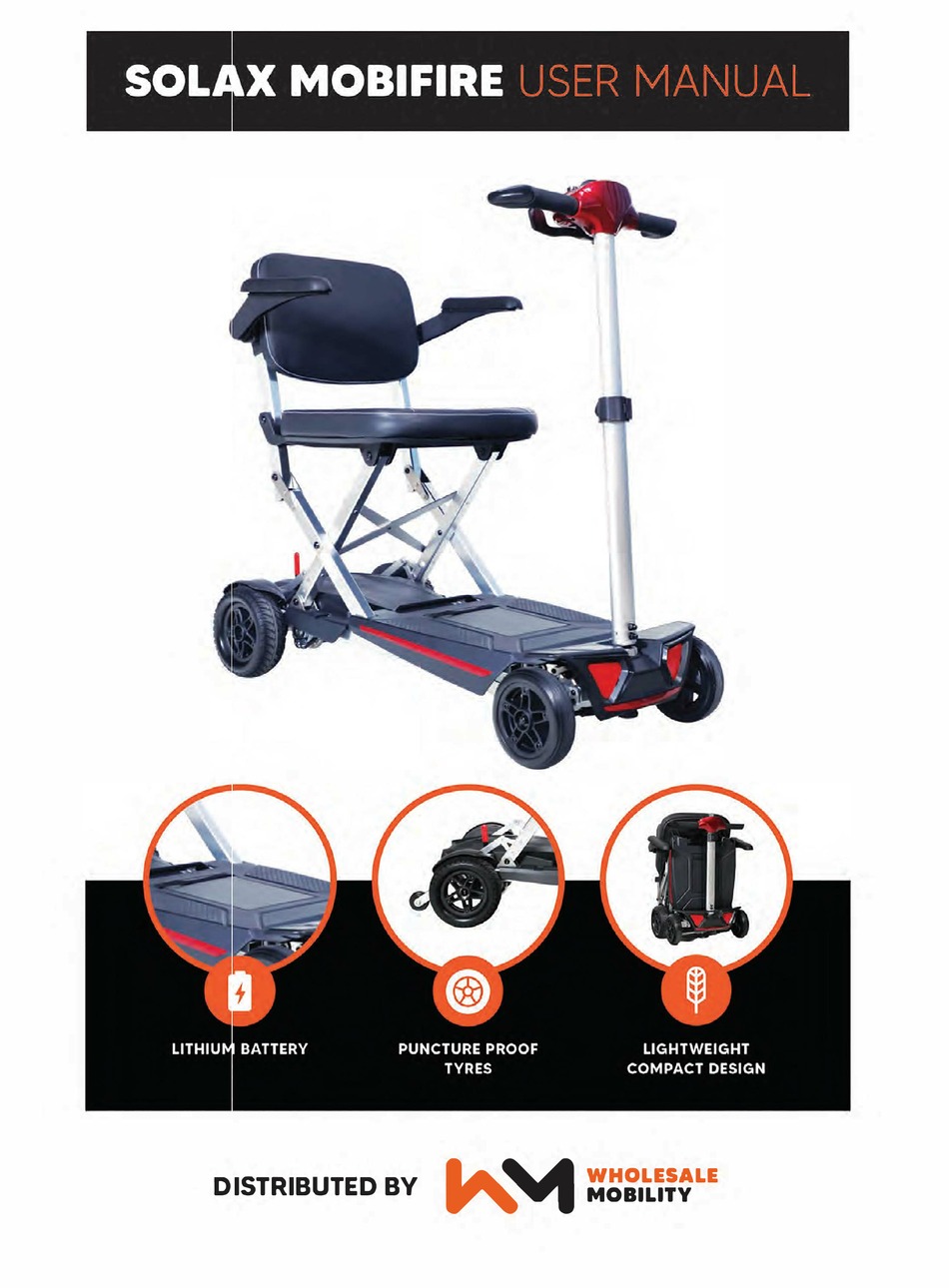

  • Page 1 I..A.. � WHOLESALE DISTRIBUTED BY � .., MOBILITY...

  • Page 3: Table Of Contents

    Contents 01. Important information ..................02 02. Safety instruction - overview ................03 Application scope ....................03 Instruction on driving safety ................03 Instruction on safety precaution ................. 04 Instruction on practice ..................04 03. Specification of design and function ..............05 General overview of product ................

  • Page 4: Important Information

    Important information Dear users, Thank you for selecting the MobiFire electric scooter! You must read and understand the operating instruction fully, especially the "safety instruction" part before you use it. The main purpose of going through the operating instruction is to be familiar with the functions and characters of the electric scooter and how to operate it smoothly.

  • Page 5: Safety Instruction - Overview

    Safety instruction - overview Application scope This scooter is used as a mobility aid for people who are disabled or feeble, and patients or seniors who need mobility supports or assists. The maximum safe loading of the electric scooter is 125 kg. Instructions of safe driving 01) The user must be familiar with the usage and operation of this scooter before driving.

  • Page 6: Instruction On Safety Precaution

    17) Do not make a Sor U turn suddenly to avoid overturning. 18) Charge the electric scooter fully before using. Instruction for safety precaution 01) Do not operate the scooter before the user does not fully read and understand this operating instruction. 02) Do not drive after drinking.

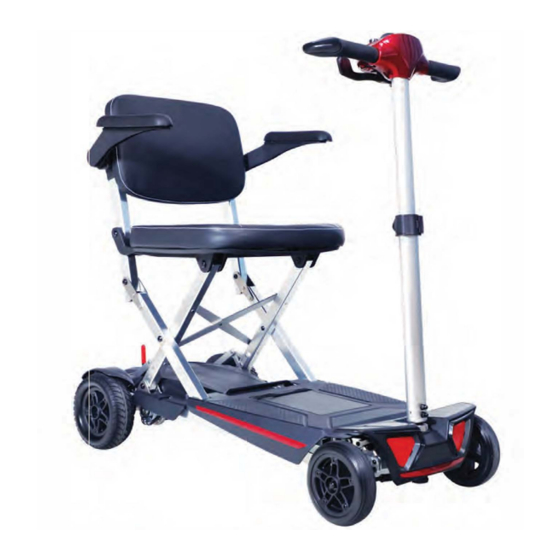

  • Page 7: Specification Of Design And Function

    Specification of design and function General overview of the product Working principle: The electric scooter is a power scooter powered by battery and controlled and driven by electronic devices. The user can drive the scooter through the working of control devices. Its main components are the motor, battery, control system, wheels, seat, a rm rests, etc.

  • Page 8: Main Technical Parameters

    Main technical parameters Minimum Maximum Total length 969mm Total width 530mm Total height 950mm Total length after folding 343mm Total width after folding 530mm Weight of entire vehicle 22.3kg Weight of vehicle (excluding battery) 20.5kg Maximum forward driving speed 6 km/h Maximum user's weight 125 kg Notice: The final specification is subject to the vehicle provided.

  • Page 9: Operating Instruction

    Operating instruction Description of necessary abilities of the operator(driver) 01) The electric scooter is controlled by the user through fingers to move forward and backward and turn left and right and folds and unfold, and control the speed.So the user must be capable of: -Reading and understanding the operating instruction -Distinguishing and evaluating danger -Having the safety awareness or follow the traffic rules of local laws...

  • Page 10: Power Switch

    The control panel is an operation control module which mainly controls the power on and off, moving forward and backward during driving and display of battery power level. Notice: Do not place the control panel in the wet areas. If the control panel is damped, please operate and use it after being fully dried.

  • Page 11: Horn Button

    c. After the direction control lever is fully released, it will automatically stop in the "central" position, and the electromagnetic brake will automatically stop the scooter. Figure 7 Figure 8 Horn button In order to prevent from accident and damage, please use the horn button properly.

  • Page 12: Controller And Motor

    Controller and motor The controller is fixed in the bottom to receive the signal from the control panel and send it to the motor, brake, charging port and other systems;The motor/ transmission modules, which are electromechanical devices. convert the electric energy of battery to the driving energy of rear wheels.
  • Page 13 (the scooter, will Figure 13 Figure 14 Figure 15 Notice: !.When the body is unfolded, do not put your fingers in any joints on the scooter to avoid injuries. 2.When the locking switch is not opened, do not forcibly unfold the scooter.

  • Page 14: Battery And Charging

    b. The user shall firstly press down the manual folding handle and lift upward by hand (as shown in Figure 16), then the front and rear frames will be folding (as shown in Figure 17}, after they are folded to a certain degree, the user shall push forcibly by both hands (press the edge of frame by one hand, and press the seat cushion by the other hand) (as shown in Figure 18), until the front and rear frames are fully folded in place.
  • Page 15 b. Take AC power line and insert one end in the domestic power socket, connect one end to the charging socket of the charger, then turn on the power switch after connecting, and then the red light is on when the scooter is being charging, and the green light or orange light is on after the scooter is fully charged(see Figure 22-24).

  • Page 17: Maintenance And Care

    Maintenance and care Maintenance Place the scooter in the dry and ventilated places and avoid contacting oil, acid, alkaline and other corrosive chemical substances. Keep the body clean: The control panel, covers, etc., are made of the durable ABS plastics, and the surface is pain coated. The scooter cannot be wiped with oil or other chemical liquids;...

  • Page 19: Instruction And Precaution Of Battery

    Instruction and precaution of the battery 25.2V lOAH * 1 PCS lithium battery is used. Before the batteries are used for the first time, the power in the batteries must be fully charged. 01) To ensure smooth driving, the scooter must be fully charged before travelling; 02) The scooter is charged according to the voltage of the country and region and plugs.

  • Page 20: Transportation Condition And Storage

    Transportation and storage The scooter is packaged with the kraft box to prevent it from water, pressing, and be transported by sea. It can be transported by air, sea or land. ° ° The product can be stored in: (-20 C to 45 C, 10%-80% humidity) shady, cool, dry, ventilated and corrosive gas free places.

  • Page 23: Warranty Card And Warranty Specification

    Warranty card and warranty specification 14.1 The warranty card is shown in Appendix 14.2 Warranty scope specification: If the quality problem occurs to the parts on the material, manufacturing or assembly under normal use, the agent is responsible for maintaining or replacing the parts.
