Acme Furniture 84623 Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR ACME FURNITURE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts which may have come loose inside the carton during shipment. Separate, identify and count all parts
and metal hardware. Compare with parts list to be sure all parts are present. If any part(s) are missing or
damaged, please contact your local furniture dealer. For efficient and speedy service, please indicate the
model number and code letter of part(s) needed.
DESCRIPTION
A
B
C
D
E
F
G
H
I
J
K
L
HARDWARES REQUIRED
1
2
3
4
5
6
7
8
9
10
11
Attention:
*** Some number parts listed on the instruction sheet may not be in parts bag as they may
already be assembled.
Carefully check parts and packing materials prior to odering replacments.

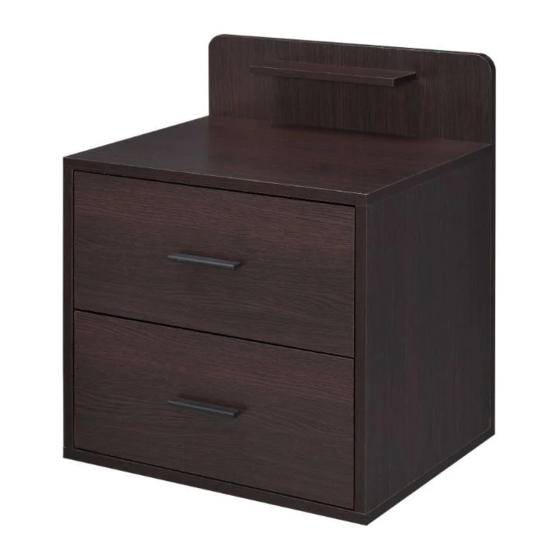

MODEL #84623 NIGHT STAND
***Do not fully tighten screws until fully assembled***
COMPONENT PARTS
PART NAME
Top Panel
Left Side Panel
Right Side Panel
Bottom panel
Back Panel
Shelf Panel
Drawer Panel
Drawer Front Panel
Drawer Back Panel
Drawer Left Side Panel
Drawer Right Side Panel
Drawer Bottom Panel
Minifix 7*20.5(10)mm - 4 PCS
Cam 15*12mm - 4 PCS
Wood Dowel 8*25mm - 8 PCS
Screw 4.2*38mm - 12 PCS
Screw 4.2*32mm -16 PCS
Screw 4*25mm - 4 PCS
Screw 4*12mm - 4 PCS
Screw 4*25mm - 4 PCS
Handle - 2 PCS
Adjuster M6*13mm - 4 PCS
Glue - 1 PC
Q TY(PCS)
PAGE 1/4
