© 2020
Order #XXXXX

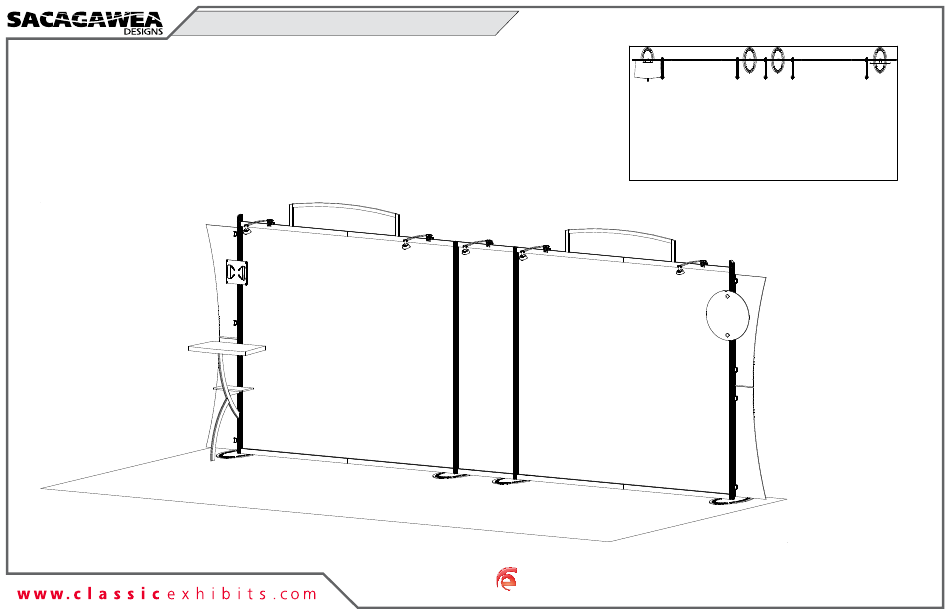

VK-2109 General Layout
20'
10'
Top View
Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sacagawea Designs VK-2109 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits Sacagawea Designs VK-2109

  • Page 1 © 2020 Order #XXXXX VK-2109 General Layout 20’ 10’ Top View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: General Setup Instructions

    © 2020 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 3 © 2020 SEG Installation Order #XXXXX 1) Locate channels along the edges of extrusions Fold edges over. 2) Insert graphic corners first into channels then center point of graphic into channels. Allows for proportional fit around the perimeter of the extrusion. 3) Working from center to corner, slide silicon edge Insert into on graphic into channel.
  • Page 4 © 2020 Order #XXXXX Case Packing Top View of Each Level Lights Base Plate Graphic Graphics Setup Hardware Counter & Connectors [B] (2) Wings Level 1 (Bottom Level) Level 2 Level 3 Case 1 of 2...
  • Page 5 © 2020 Order #XXXXX Case Packing Top View of Each Level Base Graphics Plate (4) Base Plates Counter (2) Wings Level 1 (Bottom Level) Level 2 Level 3 Case 2 of 2...
  • Page 6: Front View

    © 2020 Order #XXXXX Backwall Assembly Corner Connection with Knob Item Qty. Description Steps: Base Plate 1) Attach base plates [1] to lower verticals [2A] [3A] [2C] and [3C], using bolts. 2A,2B 42” Vertical Extrusion w/ Clamps 2) Connect verticals [2A to 2B] [3D to 3B] [2C to 2D] and [3C to 3D], using 3A,3B 42”...
  • Page 7 © 2020 Order #XXXXX Backwall Attachments Item Qty. Description Steps: 7/8/9 Header Frame 1) Attach assembled header frames [7/8/9] to extrusions [5A/5B], then connect Support Leg graphics to Velcro on BACK of header frames. 10/11 Counter Support 2) Connect lights to extrusions [5A/5B]. See Light Connection detail.
  • Page 8 © 2020 Order #XXXXX Counter Attachment Counter Attachment Bottom view of counter Counter Bolt Bolt Mounting Plate w/ Wig Nuts Mounting Plate Fixed Bolts Mounting Plate [11A] Counter 2) Mounting plate bolt in, 3) Place mounting plate onto 1) Mounting plate & wing nuts, Wing Nut packed position.
  • Page 9 © 2020 Order #XXXXX USB Cord Management Keep rubber clip attached to vertical extrusion. Counter Top Wing Clamp Cord Cord Rubber Clip Cord Cords Wing Cord Rubber Clip Cord USB Outlet Wing Wing Outlet Route cord from right USB port Route cord from left USB port Cords will hang down Plug USB cords into USB outlet.
