Classic Exhibits Sacagawea Designs VK-1220 Manual

Advertisement

Step 1

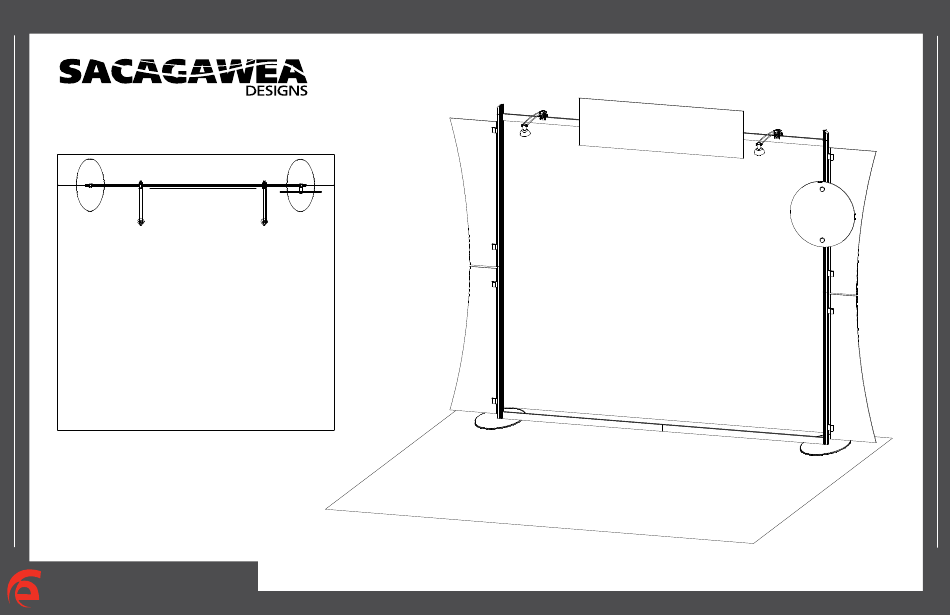

Order #XXXXX - Sacagawea - VK-1220 - General Layout
866.652.2100
10'
Plan View
10'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sacagawea Designs VK-1220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Classic Exhibits Sacagawea Designs VK-1220

  • Page 1 Step 1 Order #XXXXX - Sacagawea - VK-1220 - General Layout 866.652.2100 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 2...
  • Page 2 Step 2 Order #XXXXX - Sacagawea - General Information 866.652.2100 Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
  • Page 3 Step 1 Order #XXXXX - Sacagawea - Backwall Assembly 866.652.2100 Item Qty. Description Steps: Base Plate 1) Attach base plates [1] to lower verticals [2a,3a] with bolts. 2a/2b 42” Vertical Extrusion 2) Connect upper verticals [2b,3b] to lower verticals [2a,3a] with connection bars [b]. 3a/3b 42”...
  • Page 4 Step 2 Order #XXXXX - Sacagawea - Wing and Sign Attachment 866.652.2100 Light Connection Steps: Attach lights to 1) Velcro header to upper horizontal bars. backwall where 2) Attach wings to clamps as shown. desired and 3) Attach round sign to backwall frame where indicated. tighten in place.
  • Page 5 Order #XXXXX - Case Packing Instruction 866.652.2100 Graphics Top View Round Sign Base Plates Lights Wing Panels Header Setup Hardware Level 2 Level 1 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w .
