Halsey Taylor HTICF Quick Start Manual

MODEL HTICF
GENERAL

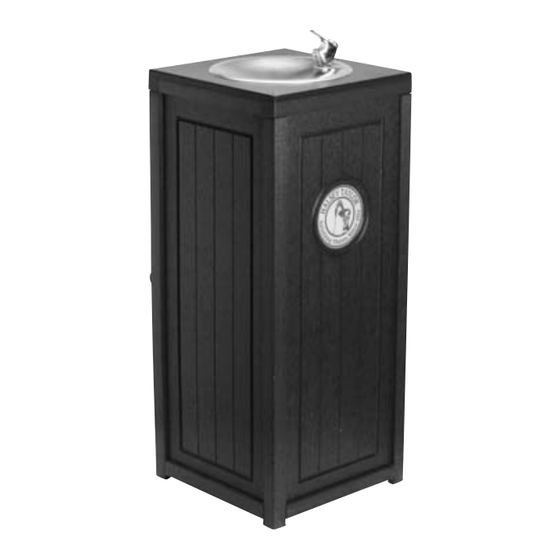

Pedestal, Ice Chilled fountain with insulated
recycled green polymer cabinet stands up well
to the elements and resists rust. Contour
formed satin finish stainless steel basin with
rounded corners and edges reduces splatter,
insures proper drainage and prevents standing
waste water. Ideally suited for installation in
public areas such as parks and golf courses.
CABINET
Insulated recycled green polymer cabinet is
impact and rust resistant. Cabinet has heavy
duty hinges and a heavy duty lockable hasp on
cabinet door. (Lock not included) Bolt down
kit included with cabinet.
BUBBLER
Projector shall be chrome plated, unleaded
brass, single-stream, self-closing, pushbutton
operated with integral volume control for
maintaining proper stream height. Also
includes hood guard and anti-squirt feature.
AUTOMATIC STREAM HEIGHT REGULATOR
Self-closing assembly is located inside unit to
prevent tampering. Unit resists corrosion and
liming. A constant stream height is automatically
maintained under line pressures that vary from
20 to 105 psi.
WATER INLET
3/8" O.D. Tubing
DRAIN OUTLET
1-1/4" tube outlet. Internal drain system directs
water to rear of fountain. Drain system can be
connected to a dedicated drain or "French"
(gravel/rock) drain field.
COOLING
Water is chilled through self-contained coils so
water source is never in contact with hands or
ice. Cooling coil provides 4 cups of 50 degree F
water every 8 minutes. (Tested at 80 degrees F
incoming water and 90 degrees F outside
temperature). No electrical hookup required.
Ice drawer slides out for easy filling and holds
up to 30 lbs of ice.
SUGGESTED SPECIFICATIONS
Fountain shall have self-rimming stainless steel
basin with satin finish. Projector to be pushbutton
type with automatic stream control. To have
removable drain strainer. The manufacturer shall
certify the unit to meet the requirements of the
Safe Drinking Water Act.
Note: Continued product improvement makes
specifications subject to change without notice.
See Halsey Taylor website for most current
spec sheet.
halseytaylor.com
HALSEY TAYLOR, 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523
Ice Chilled
Drinking Fountain
Standard finish is green recycled polymer
Optional Accessories (extra cost)
■ ■
Water Filter (Recommend water filter to be
changed every spring season)
■ ■
Bubbler cover (factory installed only)
Each HTICF consists of 1 carton of the
following:
Fountain
Trap and service stop not included.
Shipping weight: 81 lbs.
JOB NAME:
ENGINEER/CONTRACTOR NAME:
APPROVAL:
DATE:
D22 /
8-2007
