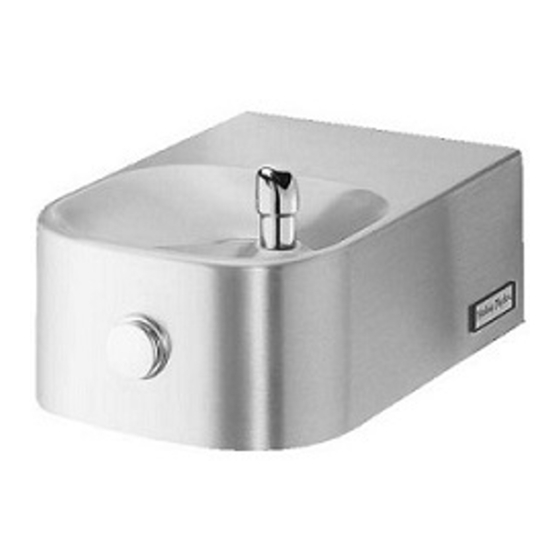

Halsey Taylor HRFS-FR Owner's Manual

Freeze resistant fountains

Download this manual

Halsey Taylor Owners Manual

HRFS-FR

INSTALLER

Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install

these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING

THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL,

AND OTHER APPLICABLE CODES. After installation, leave these instructions with the Fountain for future

reference. This Freeze Resistant Fountain is shipped in two separate cartons. The second carton(s) contains

the Freeze Resistant Package(s) HTFRB1 that are installed on an interior heated wall. The interior space must

maintain a minimium temperature of 50° F (10° C). Refer to the Freeze Resistant Package for the rough-in

dimensions for installation.

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON.

THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES

IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM

THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN

ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE

WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN

FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE

FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.

HRFS-FR

Freeze Resistant Fountains

IMPORTANT

IMPORTANT! INSTALLER PLEASE NOTE.

HRFE-FR

PAGE 1

97798C (Rev. K - 09/17)

Page 1 HRFE-FR INSTALLER Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
Page 2 HRFS-FR HRFE-FR 97798C (Rev. K - 09/17) PAGE 2...
Page 3 HRFS-FR HRFE-FR PAGE 3 97798C (Rev. K - 09/17)
Page 4 HRFS-FR HRFE-FR CABLE SHEATH ADJUSTMENT To Increase Free Play To Reduce Free Play FIG. 3 FIG. 4 See Fig. 7 FIG. 5 See Fig. 3 FIG. 6 FIG. 7 97798C (Rev. K - 09/17) PAGE 4...
Page 5 HRFS-FR HRFE-FR The freeze resistant package must be mounted on an interior wall in a heated area. The room temperature of the interior heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed mounted.
Page 6: Parts List
HRFS-FR HRFE-FR PARTS LIST ITEM NO. DESCRIPTION PART NO. 56092C POLY TUBING (CUT TO LENGTH) SEE FIG. 12 112627543890 SCREW - #10 - 24 X .50 PHTC 72000833 WASTE ARM ASSY 28823C BRACKET-REGULATOR MOUNTING 27945C BRACKET-BASIN 27946C BRACKET-BASIN PIVOT 40045C...
