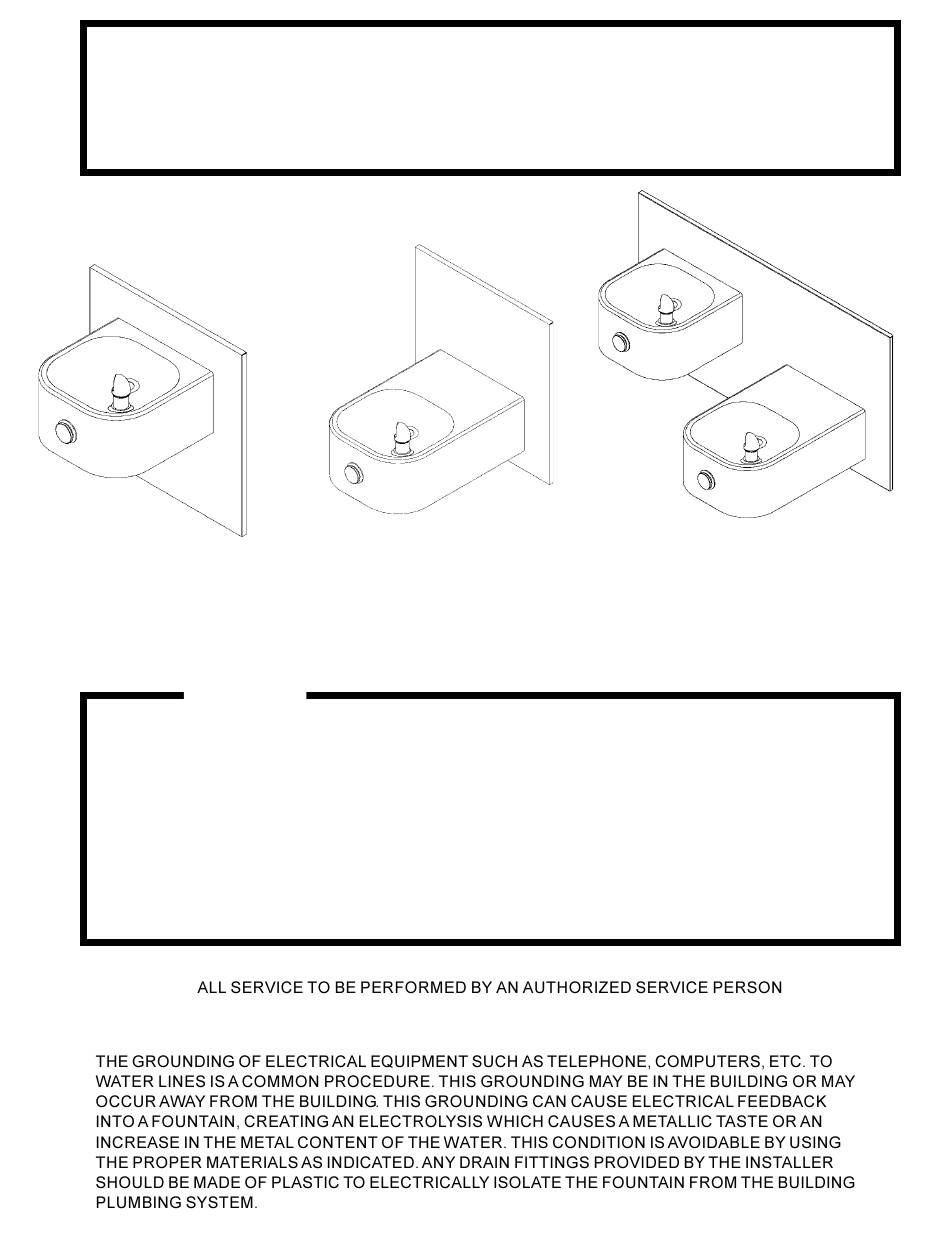

Halsey Taylor Owners Manual
HRFSBP - FR HRFEBP - FR HRFSEBP - FR
Freeze Resistant Fountains
HRFSBP - FR
HRFEBP - FR
HRFSEBP - FR
Installer
To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE
INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLA-
TION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE
CODES. After installation, leave these instructions inside the fountain for future reference.
This Freeze Resistant Fountain is shipped in two separate cartons. The second carton(s)
contains the Freeze Resistant Package(s) HTFRB1 that are installed on an interior
heated wall. The interior space must maintain a minimum temperature of 50° F (10° C).
Refer to the Freeze Resistant Package for the rough-in dimensions for installation.
IMPORTANT
IMPORTANT! INSTALLER PLEASE NOTE.
PAGE 1
97649C (Rev. E - 5/04)
