Summary of Contents for Marson BT-2

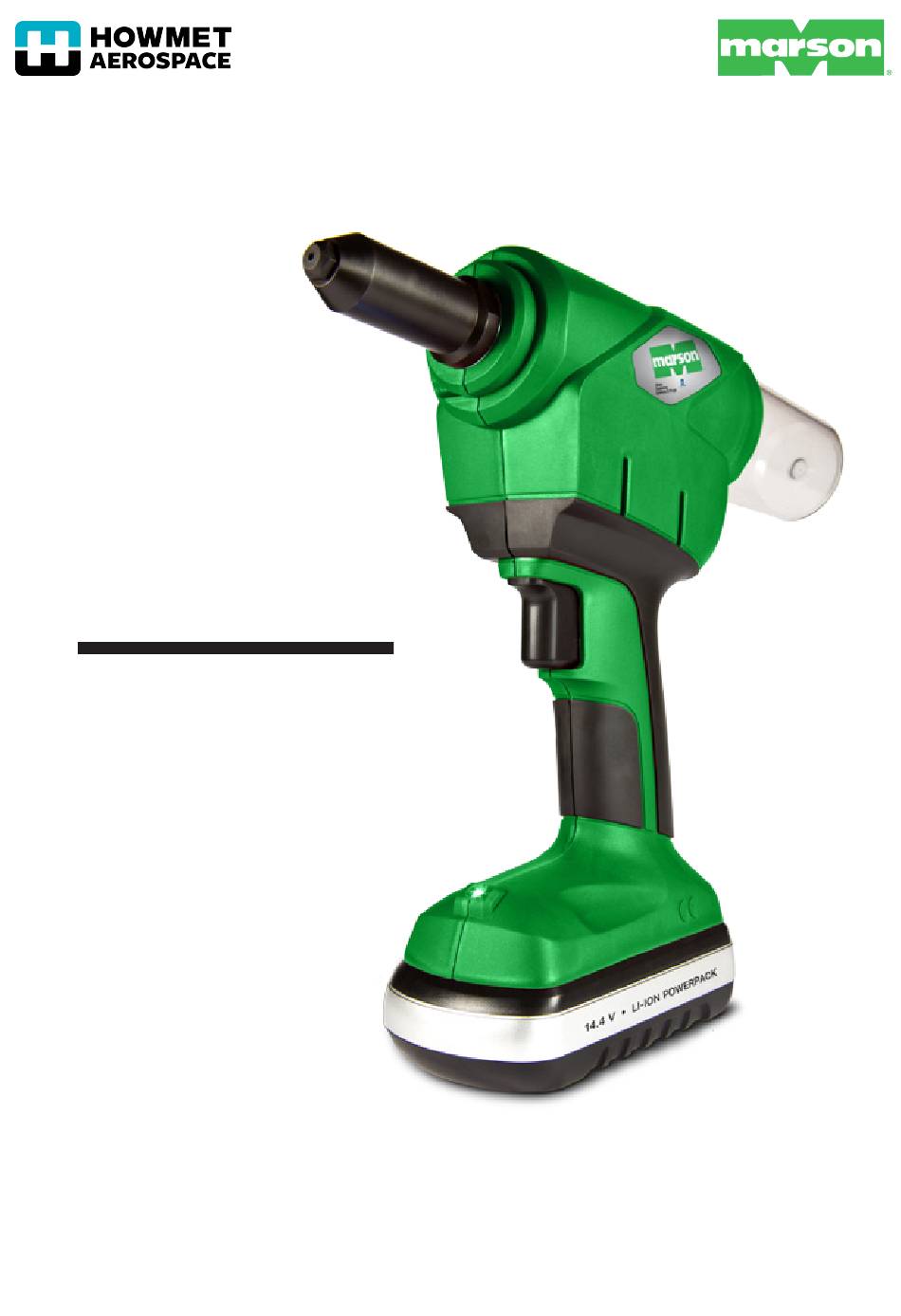

- Page 1 BT-2 BATTERY POWERED INSTALLATION TOOL INSTRUCTION MANUAL FOR U.S. OPERATIONS...
- Page 2 M39080 M39083 1.5 Ah - 14.4V M39085 M96208 - 3/32” M96209 - 1/8” M96210 - 5/32” M96211 - 3/16” M39084 3.0Ah - 14.4V M96224...
- Page 4 Please preserve all security advice and instructions for future reference. The term “electric riveting machine” used in the security advices refers to the line-powered MARSON BT-2 charger (with power cord) and to the battery-powered MARSON BT-2 riveting machine (without power cord).
- Page 5 • If the battery is defective, fluid may emerge from it and coat djacent objects. Check the parts affected, clean them or replace them, if necessary. • Use the battery only with your MARSON BT-2 electric riveting machine. This is the only way to prevent dangerous overload of the battery.
-
Page 6: Technical Specifications
Putting the device into operation Insert the battery. Only use original MARSON BT-2 Li-Ion batteries with the voltage depicted on the type label of your electric riveting machine. The use of other batteries may lead to injuries and risk of fire. P sh the battery (G) from under into the stand of the electric riveting machine, holding the... - Page 7 Keep the electric riveting machine and the ventilation slots clean to ensure good and safe operation. If the electric riveting machine should fail despite the meticulous manufacturing and quality control procedures, the repairs should be done by an authorized service center for MARSON electric riveting devices.
-
Page 8: Parts List
BT-2 Parts List Part No. Description Diagram M96201 COMPRESSION SLEEVE M96202 COMPRESSION SLEEVE ADAPTER M96205 GUIDE SLEEVE KIT 3, 4, 5 M96206 JAWS SET M96207 JAW CASE M96208 3/32" NOSEPIECE M96209 1/8" NOSEPIECE M96210 5/32" NOSEPIECE M96211 3/16" NOSEPIECE M96212... - Page 9 Accessories Part No. Description M96229 NOSEPIECE BOX M96231 1/8” RETENTION NOSEPIECE M96232 3/16” RETENTION NOSEPIECE M96233 5/32" RETENTION NOSEPIECE M96234 3/16” EXTENDED NOSPIECE (11MM) M96235 3/16” EXTENDED NOSPIECE (14MM) M96236 3/16” EXTENDED NOSPIECE (16MM) M96237 EXTENDED FRONT SLEEVE (165MM)
- Page 10 Howmet Fastening Systems Industrial Division Brands Huck, Marson, Recoil, Keysert, Camloc, Simmonds and Snep are trademarks of Howmet Aerospace Inc. and/or its subsidiaries. North America Global Waco Operations Telford Operations Tokyo Operations (Japan & Korea) PO Box 8117 Unit C, Stafford Park 7...
