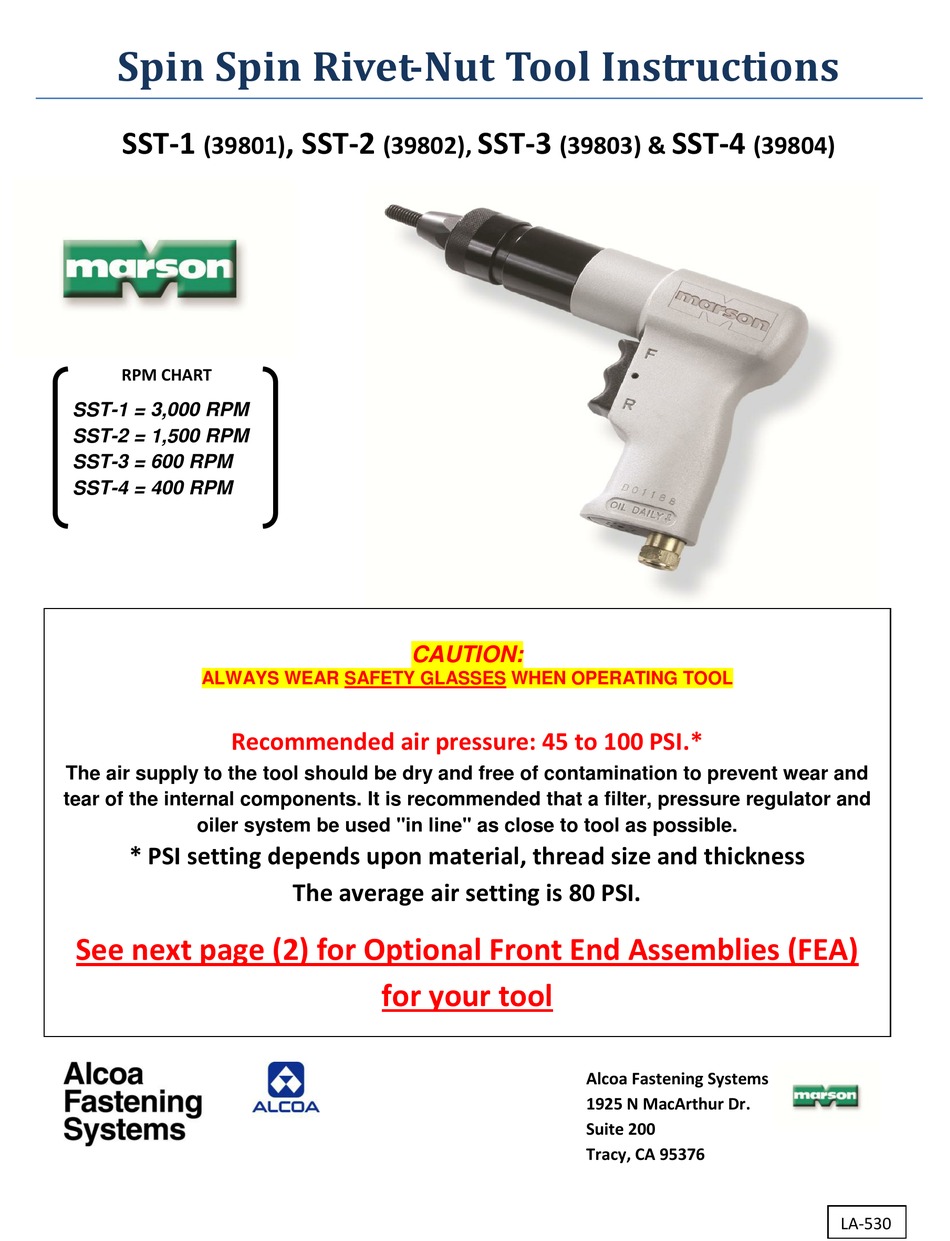

Spin Spin Rivet-Nut Tool Instructions
SST-1
(39801)
RPM CHART
SST-1 = 3,000 RPM
SST-2 = 1,500 RPM
SST-3 = 600 RPM
SST-4 = 400 RPM
ALWAYS WEAR SAFETY GLASSES WHEN OPERATING TOOL
Recommended air pressure: 45 to 100 PSI.*
The air supply to the tool should be dry and free of contamination to prevent wear and
tear of the internal components. It is recommended that a filter, pressure regulator and
oiler system be used "in line" as close to tool as possible.
* PSI setting depends upon material, thread size and thickness
*see the optional FEA
See next page (2) for Optional Front End Assemblies (FEA)
(front end assembly chart

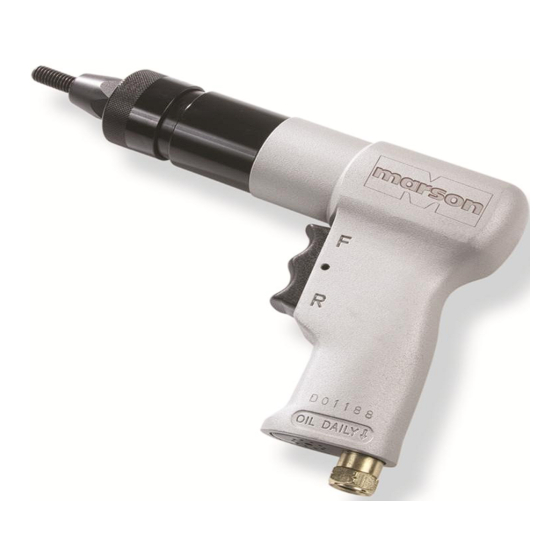

The models SST-1, SST-2, SST-3 and SST-4 pneumatic Rivet-Nut tools
are designed to provide a user friendly, light weight, quiet, fast and
powerful Rivet-Nut insert installation tool that provides long life &
trouble free service.
, SST-2
(39802),
CAUTION:
The average air setting is 80 PSI.
for your tool
Weight: 2.5 lbs. ¼" NPT male air fitting required
SST-3
(39803) &
Alcoa Fastening Systems
1925 N MacArthur Dr.
Suite 200
Tracy, CA 95376
AFS
SST-4
(39804)
LA-530
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Marson SST-1
Summary of Contents for Marson SST-1
- Page 1 See next page (2) for Optional Front End Assemblies (FEA) (front end assembly chart for your tool The models SST-1, SST-2, SST-3 and SST-4 pneumatic Rivet-Nut tools Alcoa Fastening Systems 1925 N MacArthur Dr. are designed to provide a user friendly, light weight, quiet, fast and Suite 200 powerful Rivet-Nut insert installation tool that provides long life &...
- Page 2 IMPORTANT! PLEASE READ! FRONT END ASSEMBLIES (FEA) Purchasing the Optional Front End Assemblies are at the Owner's discretion. Care must be taken to optimize the tools Rivet Nut setting ability. Adjustment of the air pressure will be necessary in order for the tool to function in both minimum and maximum capacity on ALL optional thread sizes per tool.
- Page 3 CAUTION: ALWAYS WEAR SAFETY GLASSES WHEN OPERATING TOOL OPERATING INSTRUCTIONS: WITH THE TOOL DISCONNECTED FROM THE AIRLINE, CHECK TO SEE THAT THE ANVIL / NOSEPIECE SOCKET HEAD CAP SCREW (MANDREL) RIVET-NUT EXTENDS BEYOND THE FACE OF THE ANVIL FAR ENOUGH TO ALLOW AT LEAST ONE THREAD OF THE SCREW / MANDREL TO EXTEND BE BEYOND THE END OF THE INSERT.
- Page 4 FRONT END ASSEMBLY (FEA) COMPONENTS 3 Piece Preferred Inch Front End Anvil / Mandrel / Bearing Tool Size Assembly Nosepiece Drive Screw Thread FEA # 39801 4-40 M95500 M95399 M95525 M95535 M95424 39801 6-32 M95501 M95400 M95526 M95536 M95425 39801 8-32 M95502 M95401...
- Page 5 SST-1 (39801) and SST-2 (39802) Changing Front End Assembly (FEA) Procedure pg. 5...
- Page 6 PARTS LIST BREAKDOWN SST-1 SST-2 (39801) (39802) pg. 6...
- Page 7 SST-3 (39803) & SST-4 (39804) Changing Front End Assembly (FEA) Procedure * Read NOTE Below Note: The 39803 (part # 28) 1/4" & M-6 Bearing Set (3 Piece) will have a machined washer as part of the assembly. pg. 7...
- Page 8 PARTS LIST BREAKDOWN SST-3 SST-4 (39803) (39804) * Read NOTE Below Note: The 39803 (part # 28) 1/4" & M-6 Bearing Set (3 Piece) will have a machined washer as part of the assembly. pg. 8...
-
Page 9: Maintenance
LIMITED TOOL WARRANTY Alcoa Fastening Systems (Marson) warrants that this tool, will be free from defects in material and workmanship under normal service, for ninety (90) days from the date of purchase. This warranty applies to the purchaser of the tool for original use only. All other warranties, whether expressed or implied, including any warranties of merchantability or fitness for purpose are hereby excluded.
