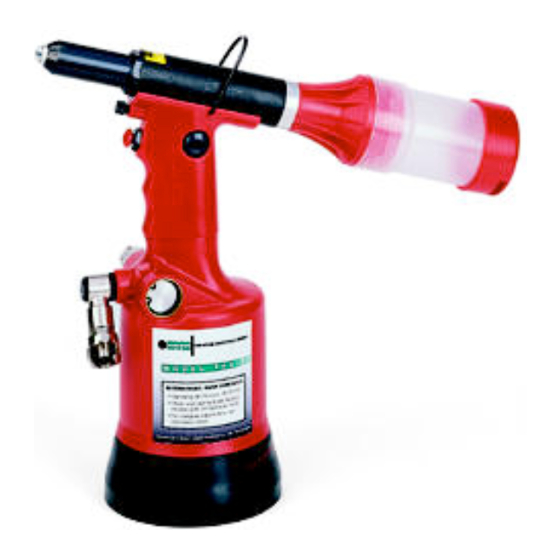

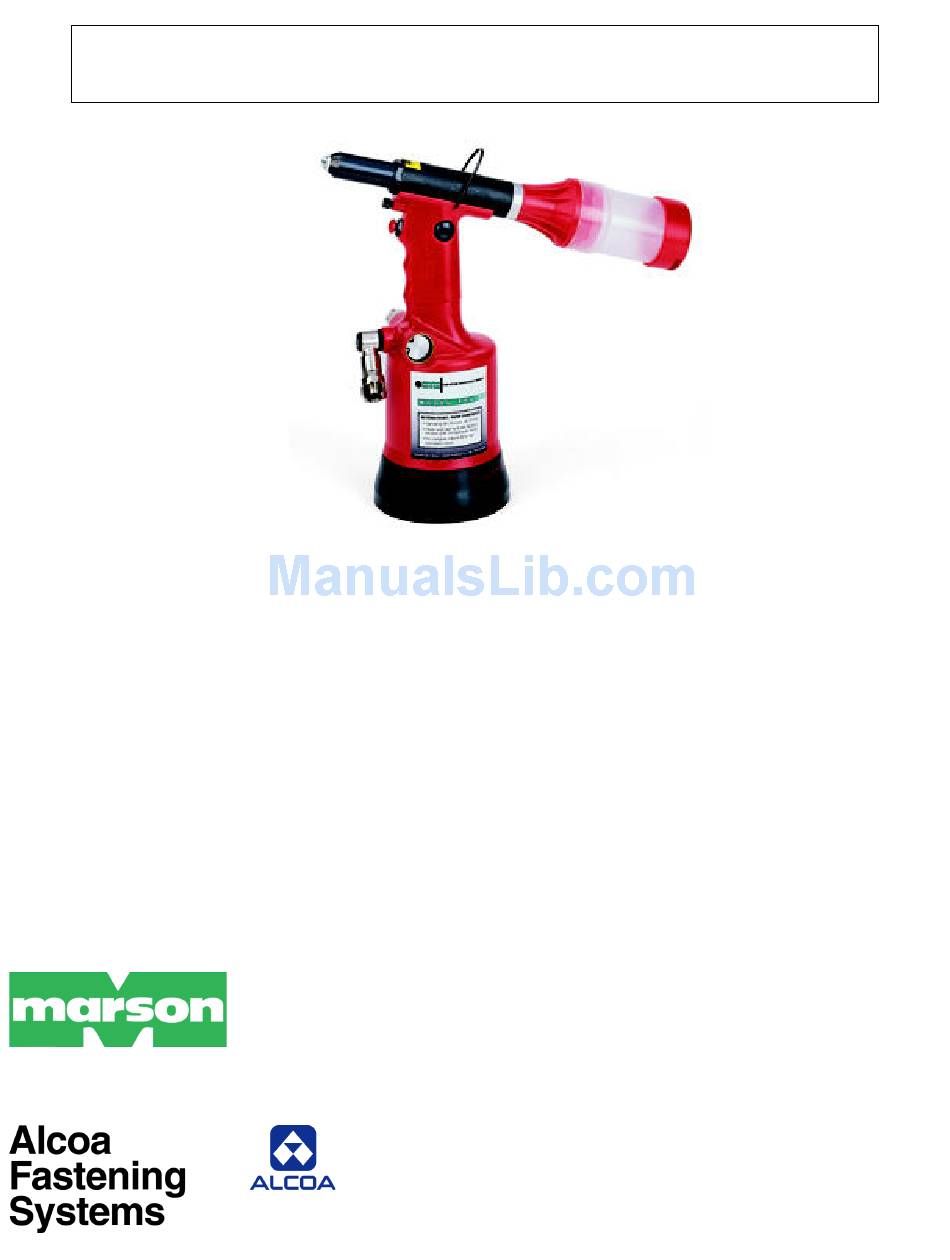

302-E Heavy Duty Riveter / 39062
This durable air/hydraulic riveter, with its fully adjustable vacuum system
that holds the rivet in the nosepiece, allowing the operator to rivet at any
angle with one hand free. The vacuum system automatically collects the
spent mandrel into a bottle, creating a cleaner, safer work environment by
preventing spent mandrels from falling to the floor. A traction pulling power
of 2,000 lbs. allows this tool to easily install 3/32" to 3/16" diameter rivets
in all alloys, and ¼" diameter open-end rivets in aluminum/steel
combination. A swivel air inlet along with a push button trigger and molded
frame which provides the operator with maximum comfort using minimal
effort.
The recommended airline pressure is 85-95 PSI.
Weight: 4 lbs.
44 Campanelli Parkway
Stoughton, MA 02072
800-732-3470 ext 2
www.alcoafasteningsystems.com
Advertisement
Table of Contents
Related Manuals for Marson 302-E
Summary of Contents for Marson 302-E
- Page 1 302-E Heavy Duty Riveter / 39062 This durable air/hydraulic riveter, with its fully adjustable vacuum system that holds the rivet in the nosepiece, allowing the operator to rivet at any angle with one hand free. The vacuum system automatically collects the spent mandrel into a bottle, creating a cleaner, safer work environment by preventing spent mandrels from falling to the floor.
- Page 2 WARNING: ALWAYS WEAR SAFETY GLASSES WHEN OPERATING TOOL The 302-E is a durable, light weight, ergonomically designed rivet tool used for upsetting 3/32” to 3/16” diameter rivets in all alloys, and ¼” diameter open-end rivets in aluminum/steel The 302-E features 3 jaw construction and is fully self-adjusting. To change size of rivet simply change nosepiece.
- Page 3 WARNING: ALWAYS WEAR SAFETY GLASSES WHEN OPERATING AND PERFORMING MAINTENANCE ON TOOL MAINTNCE ADDITION OF HYDRAULIC FLUID Tool is shipped with oil. If it becomes necessary to add oil, follow this procedure. Put tool in a horizontal position. Remove plug (35). Pour hydraulic fluid into container (84). Screw container into fluid plug receptacle.
- Page 4 LIMITED TOOL WARRANTY Alcoa Fastening System Marson division warrants that this tool will be free from defects in material and workmanship under normal service and for ninety (90) days from the date of purchase. This warranty applies to the purchaser of the tool for original use only. All other warranties, whether expressed or implied, including any warranties of merchantability or fitness for purpose are hereby excluded.
- Page 5 302-E Heavy Duty Riveter / 39062 Parts Breakdown...
- Page 6 Drawing Part # Description 712716 Cover 88003 O'Ring 020 88005 O'Ring 2-337 88006 Pneumatic piston 88008 Stem see below Dampener 88011 O'Ring 5/615 Parker 88012 Guide stem connector 88014 Seal TS 12-19-5,7/L 88017 Seeger ring I22 88018 O'Ring 018D 88020 Seeger ring I11 88021 O'Ring 5/612 Parker...
- Page 7 see below Cone holder Drawing # Part # Description see below Expeller extension 88065 Balancer hook 88066 O'Ring 2/118 Parker 88067 Sleeving gasket 88068 Balsele B086055 88069 Flat washer Al. 14x22x1,5 see below Seeger ring AV16 see below Stop ring 88072 Balsele B102070 see below...
- Page 8 88070 Seeger ring AV16 88071 Stop ring 88073 Anti-extrusion ring Drawing # Part # Description KIT D 740851 spring reversal piston kit 88075 Interior spring reversal piston 88076 Exterior spring reversal kit KIT E 740819 Nails container kit 710819 Nails container 88220-22 air conveyor KIT F...
