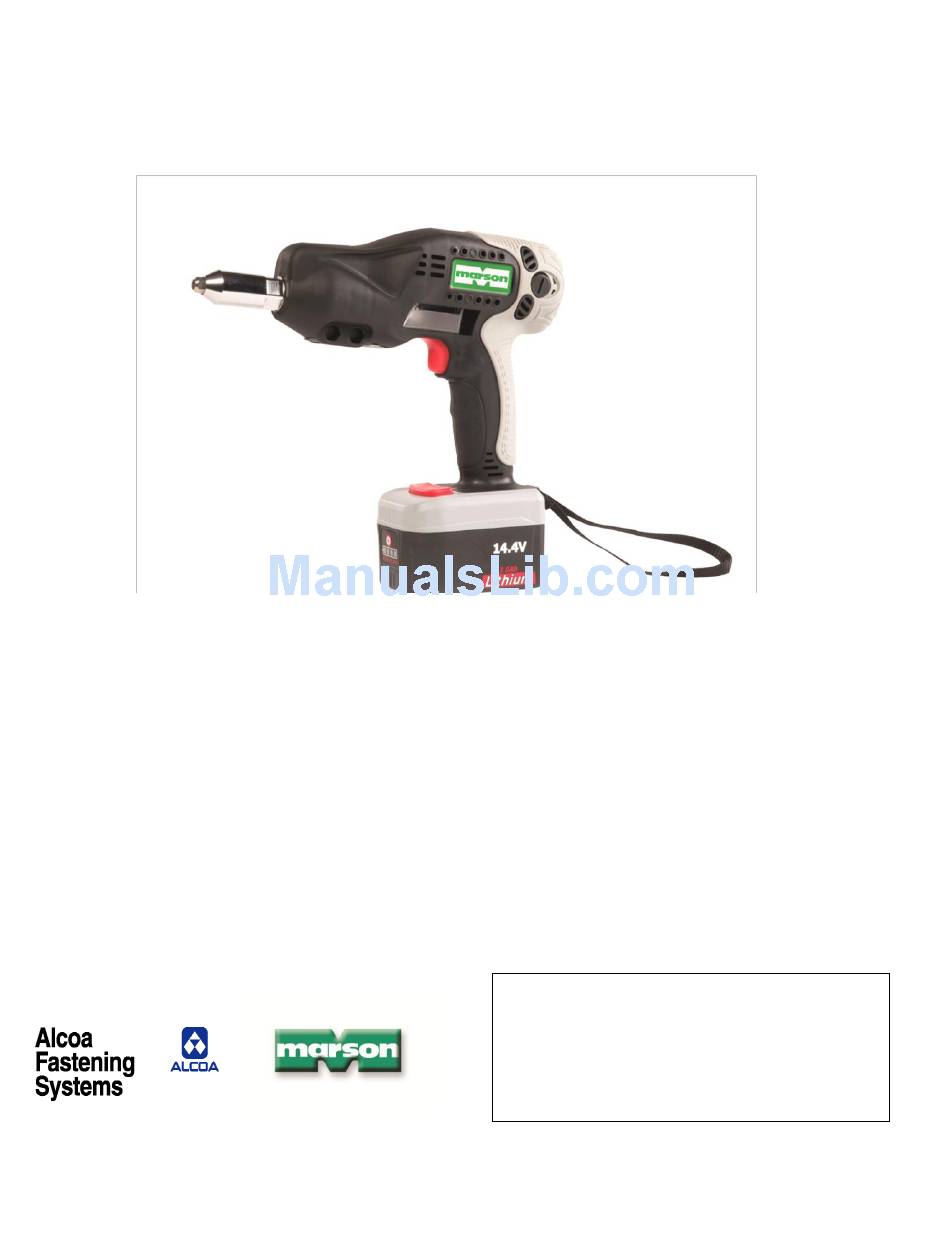

14.4V Battery Operated Rivet Tool
Marson is making installation more efficient with the
BT-1 battery-powered cordless rivet tool. It features all the
reliability and performance you would expect from Marson.
The BT-1 can set open end blind rivets ranging from:
Specifications:
Stroke length: 0.79" (20 mm)
Pulling force: 1,870 lbs. (850 kg)
Weight (with Li-ion battery pack): 4.6 lbs. (2.1 kg)
Battery pack: 14.4 V / Li-ion / 3.0 A.h
Recharge time: approximately 60 minutes
M39020 ( BT-1)
3/32" (2.4 mm) – 3/16" (4.8 mm)
AFS Industrial Distribution Group
1925 N. MacArthur Drive
Tracy, CA 95376
www.AFS-IDG.COM
Customer Service: 800-826-2884
T
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the M39020 and is the answer not in the manual?

Questions and answers

Related Manuals for Marson M39020

Summary of Contents for Marson M39020

  • Page 1 M39020 ( BT-1) 14.4V Battery Operated Rivet Tool Marson is making installation more efficient with the BT-1 battery-powered cordless rivet tool. It features all the reliability and performance you would expect from Marson. The BT-1 can set open end blind rivets ranging from: 3/32"...
  • Page 2 FUNCTIONAL GUIDES (A) STORAGE FOR ANOTHER NOSEPIECES (B) IMPACT RESISTANT COMPOSITE HOUSING (C) EASY CHANGE REPLACEABLE CARBON BRUSHES (D) MANDREL COLLECTION BOX (E) NON-SLIP, SOFT GRIP HANDLE REDUCES VIBRATION AND FATIGUE (F) ERGONOMICAL DESIGNED HANDLE (G) EASY CONNECT SLIDING BATTERY SYSTEM (H) BATTERY FUEL GAUGE (LI-ION ONLY) ”READ ALL INSTRUCTIONS”...
  • Page 3  Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 4 Battery Charger  Caution: To reduce risk of injury, charge only the authorized batteries. Other types of battery may burst, causing personal injury and damage.  Before using battery charger, read all instructions and cautionary markings on batteries, chargers and products using batteries. ...

  • Page 5: Li-Ion Battery Pack

     For optimum battery life, store the Li-ion battery pack following use without charging it  Do no charge battery when ambient temperature is below 0ºC (32ºF) or above 40ºC (104ºF). If the battery pack is used when the battery temperature is below 0ºC (32ºF), the tool may fail to function properly.
  • Page 6 Be sure to charge the battery before first use. Attaching or Removing Battery Pack To connect battery, line up the tracks and attach the battery pack. Slide toward the battery pack until it locks into positions with a click. Operation: This product had been carefully inspected prior to leaving the factory.
  • Page 8 Alcoa Fastening System - Marson division to be defective due to faulty material or workmanship. This represents the sole obligation of Alcoa Fastening Systems - Marson under this warranty.
  • Page 9 Charger Indicator Lights Red Light Charger is plugged into AC outlet. and ready to charge. Yellow Flashing When the temperature of the battery is too low temperature of the battery goes up to over 0ºC(<32ºF). The lamp will change from the yellow flashing to green flashing automatically and the charging will start.
  • Page 10 Schematic and Parts List for BT-1...
  • Page 11 Qty. Part # Description Qty. Part # Description M96101 Nosepiece 3/16"(4.8mm) M96133 Screw M96102 Head M96134 Trigger M96103 Jaw-Housing M96135 Spring M96104 Jaws (set of 2) M96136 Spacer M96105 Jaw-Pusher M96137 Screw M96106 Spring M96138 Mandrel Collection Box M96108 Snap Ring M96139 Slice M96140-1...
