Marson MP-4V 39048 Operating Manual

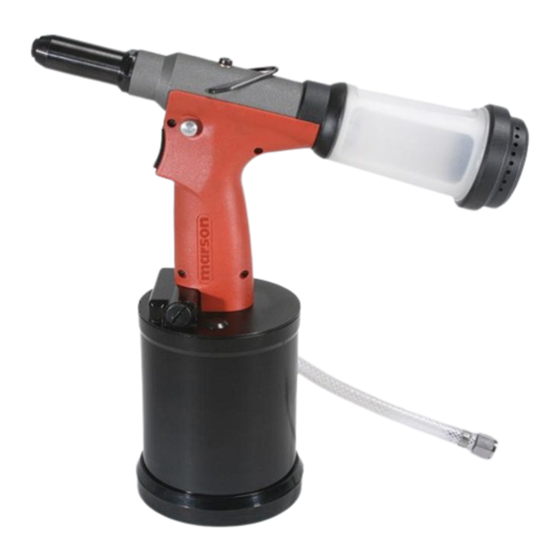

MP-4V Heavy Duty Riveter / 39048
This newly designed heavy-duty air/hydraulic riveter is
ergonomically designed with the professional in mind. The light
weight 3.7 lbs. well balanced MP-4V includes a Vacuum system
and is designed to maximize a 1" stroke and 3,420 lbs. of pulling
force with a 3 jaw setup that gets the job done. The air supply can
be connected directly or you can use the supplied swivel air
connector with the attached hose for operator convenience. Each
tool is supplied with nosepieces to set 5/32"- 1/4" rivets in all
alloys. A 1/4" monobolt nosepiece is included in addition to
adjustment service wrenches, hydraulic fluid, fluid applicator,
spare jaws and an air off/on valve. The adjustable Vacuum
System control knob located on the side of the tool allows you to
control the force of the air needed to hold the rivet in place or you
may operate with the vacuum system turned off.
Recommended air pressure is 70-95 PSI.
Alcoa Fastening Systems
1925 N MacArthur Dr
Suite 200
Tracy, CA 95376
