Summary of Contents for Koblenz HV-12KB

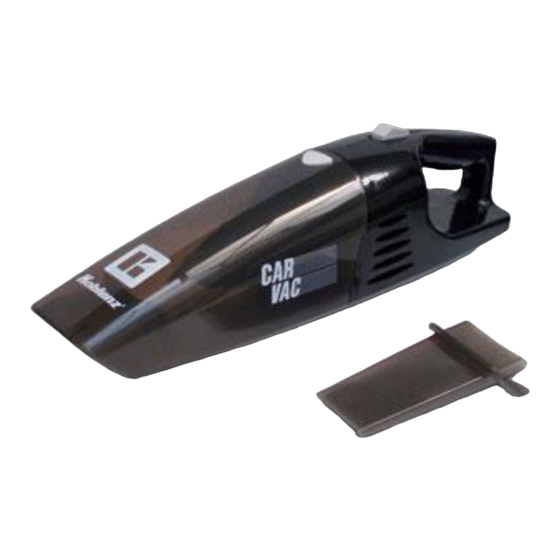

- Page 1 MANUAL SERVICE PARTS LIST MODEL: HV-12KB 12 Volt Car Vaccum FEBRUARY 2017 HV-12KB...
- Page 2 5. Remove the filter and shake it, if necessary wash it. WARNING: NEVER USE THE VACCUM WITHOUT THE FILTER AND THE DUST CUP. NOTE: The accesories is according to the model, please check them on the box panel FEBRUARY 2017 HV-12KB...
- Page 3 EXPLODED VIEW HV-12KB PARTS LIST HV-12KB PART NUMBER DESCRIPTION QUANTITY 01-0099-0 SCREW 4-24X1/2 13-3193-3 SWITCH BUTTON 11-0225-0 MOMENTARY SWITCH 13-3198-03-8 RIGHT TOP 28-1656-9 POWER CORD 46-3262-6 ASSY MOTOR 46-3232-03-3 ASSY DUST CUP 13-3192-5 INSURANCE BUTTON 13-3197-03-8 LEFT TOP 08-1981-3 CLOTH BAG...
- Page 4 PART NUMBER DESCRIPTION MODEL NOTE: THE DRAWING NUMBER´S ARE ONLY FOR IDENTIFICATION Thorne Electric Co. P. O. Box 18363 San Antonio, TX 78218-0363 Phone: (210) 590-1226 1 (800) 548-5741 THORNE ELECTRIC Co. E-mail: customerservice@thorne-electric.com FEBRUARY 2017 HV-12KB...
