Summary of Contents for Fluke PTI120-9HZ

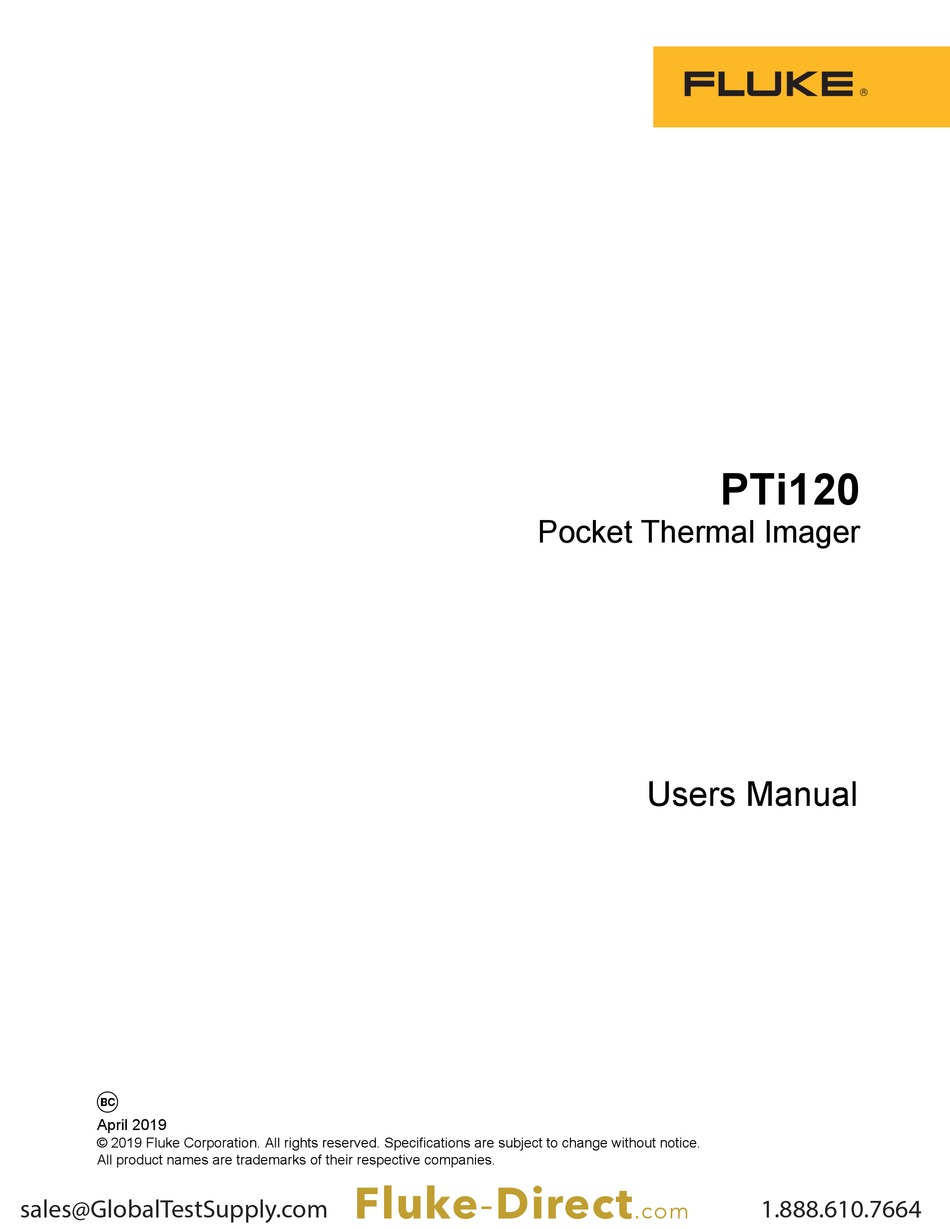

- Page 1 PTi120 Pocket Thermal Imager Users Manual April 2019 (English) © 2019 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
-
Page 3: Table Of Contents
Assign Asset ID Tag with a QR Code or Barcode ........... 14 Assign Asset ID Tag Manually................. 14 Exit an Asset ID Tag ..................14 Assign a Different Asset ID Tag............... 15 Fluke Connect Desktop Software ................. 15 Download Fluke Connect Software ..............15 Update Firmware ..................... 15 Fluke-Direct .com... - Page 4 PTi120 Users Manual Maintenance......................16 Clean the Case ....................16 Lens Care......................16 Battery Care ..................... 16 Charge Batteries ....................16 Radio Frequency Data ..................17 Specifications ......................17 Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
-
Page 5: Introduction
Introduction The Fluke PTi120 Pocket Thermal Imager (the Product or Imager) is a handheld, infrared imaging camera for use in many applications. These applications include equipment troubleshooting, preventive and predictive maintenance, building diagnostics, and research and development. The Product shows thermal images on a high-visibility, industrial-quality LCD touch screen. The Product saves images to internal memory which can be transferred to a PC through a direct USB connection to the PC or by wireless transfer to a PC or mobile device. -
Page 6: Product Familiarization
Product. Table 1. Features IR-Fusion Technology Image annotations Visible Asset Identification Fullscreen IR Autoblend Fluke Connect desktop software Controls and Connections Table shows the controls and connections of the Product. Table 2. Controls and Connections Item Description... -
Page 7: Touch Screen (Display)
Temperature range upper value Time Range bar The range of colors in the palette mapped to Date a certain range of temperatures Center point color in relation to the palette Battery status Temperature range lower value Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 8: Basic Operation
The PC recognizes the Product as an external memory storage device. 3. On the PC: a. Save the images to a directory. b. Eject the Product from the PC. 4. Remove the USB cable from the PC and the Product. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 9: Menu Controls
Note button With at least one note attached to an image, add another note Add a note button to the image. See Notes. Asset Asset ID button Add or remove an asset ID tag. See Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 10: Main Menu
Use the toggle switch to turn on or off the torch Torch (flashlight). Light Use the slider bar to set the brightness level of the Backlight display. Set user preferences and view information about Settings <options> Settings Menu. the Product. See Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 11: Image Menu
Alternatively, you can adjust the IR-Fusion level in camera mode. Touch the display and slide left to right to increase the level of IR-Fusion. Slide from right to left to decrease the IR-Fusion level. See Figure 1. Figure 1. IR-Fusion Level Fluke-Direct .com sales@GlobalTestSupply.com... -
Page 12: Palette Menu
See Figure 2. Figure 2. Palette and Range Bar Selection Display Menu Use the Display menu to set which features to show on the display. To show the Fluke logo on the display, see Device Settings Menu. Table lists the options in the Display menu. -
Page 13: Settings Menu
The .is2 file format consolidates the infrared image, radiometric temperature data, visible image, notes, and tags into a single file. To customize or separate the visible and infrared images, use Fluke File Format Connect desktop software. Use to assign an asset ID tag or to flag an asset image. -
Page 14: Ir Settings Menu
<options> Sets the date format and the date. Time <options> Sets the time format and the time. Fluke Logo Shows or hides the Fluke logo on the display. Language <options> Sets the language to use on the display. Decimal <options>... -
Page 15: Emissivity Adjustment
When you do infrared inspections through IR windows, not all of the infrared energy emitted from the target is transmitted through the optical material in the window. If you know the transmission percentage of the window, adjust the transmission percentage in the Imager or in Fluke Connect desktop software to improve the accuracy of the measurement. -
Page 16: View Image
> Add a Note to Multiple Images. The display returns to the memory gallery. 2. Tap an image to select it. Tap an image again to clear the selection. The border and filename text color change to yellow. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 17: Delete Images
Use the memory gallery toolbar to add or remove an asset ID from an image that is saved in memory. See Identification (Asset ID). To add an asset ID to an image: 1. Open an image in fullscreen mode. 2. Tap Asset Identification (Asset ID). 3. Assign an asset ID. See Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 18: Asset Identification (Asset Id)
1. Tap the asset ID that looks like on the display. 2. Tap Exit Asset ID xxxxx (where xxxxx is the name of the asset ID). The display returns to camera mode, and the asset ID does not show on the display. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 19: Assign A Different Asset Id Tag
3. Assign a new asset ID. See Fluke Connect Desktop Software Fluke Connect desktop software for a PC is available to use with the Product and contains features to analyze images, organize data and information, and make professional reports. Use Fluke Connect software to: •... - Page 20 Make sure that the Product is near room temperature before you charge the battery. See the charging temperature specification. Do not charge in hot or cold areas. When you charge in extreme temperatures, battery capacity may be decreased. Fluke-Direct .com sales@GlobalTestSupply.com...
- Page 21 3. Disconnect the USB cable when the battery is fully charged. W Caution To prevent damage to the Product: • Always operate in the specified temperature range. • Do not attempt to charge the batteries in extreme cold environments. W Caution Do not incinerate the Product. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
