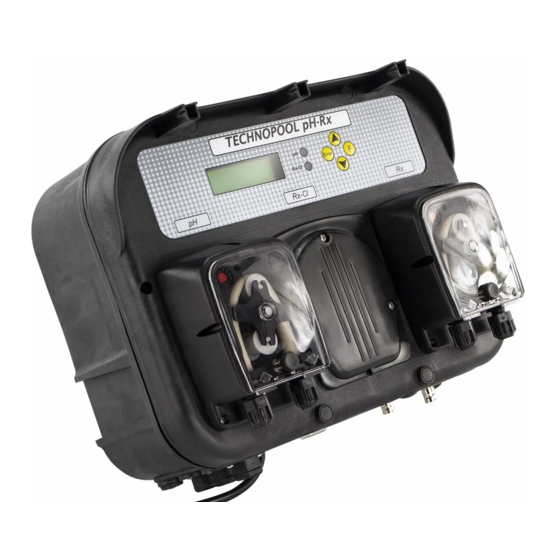

- Page 1 TECHNOPOOL Dosing systems for swimming pools ENGLISH Dosing systems for swimming pools TECHNOPOOL TECHNOPOOL PH-RX TECHNOPOOL 3 For other languages please visit: TECHNOPOOL PH-RX TECHNOPOOL 3 ADSP7000570 rev. 2.0 06/08/2021 1/37...
-
Page 2: Table Of Contents
TECHNOPOOL Dosing systems for swimming pools ENGLISH CONTENTS INTRODUCTION .............................. 3 Warnings ............................... 3 Conformity ..............................4 Technical features............................4 Electrical features ............................4 Packaging content ............................4 INSTALLATION ..............................5 Wall mounting ............................... 5 Electrical connections ........................... 5 2.2.1 Main power supply .......................... -
Page 3: Introduction
TECHNOPOOL Dosing systems for swimming pools ENGLISH 1.0 INTRODUCTION Technopool3 is an integrated system able to control up to three peristaltic pumps and a solenoid valve control relay, for the automatic management of water treatment in the swimming pool. Refer to appendix 2 for Technopool range. Peristaltic pumps are controlled in the following ways: ▪... -
Page 4: Conformity
TECHNOPOOL Dosing systems for swimming pools ENGLISH ONFORMITY Our pumps are manufactured according to General Standards in force and in compliance with the following European Directives: n° 2014/30/CE “ E.M.C. n° 2014/35/CE “DBT Low Voltage Directive” n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE” To achieve the best and ensure the longest durability of the system, read and follow the rest of the manual especially the part relative to maintenance. -
Page 5: Installation
TECHNOPOOL Dosing systems for swimming pools ENGLISH 2.0 INSTALLATION ▪ In vertical position with an uncertainty not higher than +/-15°. ▪ Away from heat sources and in a dry place, with room temperature ranging between 0°C and 45°C. ▪ In a ventilated place and easily accessible to an operator for ordinary maintenance. ▪... -
Page 6: P2/Rx/Cl/Hp Pump Product Level Probe
TECHNOPOOL Dosing systems for swimming pools ENGLISH 2.2.7 P2/Rx/Cl/HP pump product level probe Connect the level probe (on/off contact, without voltage) to input LEVEL SAN. 2.2.8 Alarm output – 24V OUT Clamp It is an alarm repetition output that provides a voltage at 30VCC with a maximum absorption of 500mA. -
Page 7: Hydraulic Connections
TECHNOPOOL Dosing systems for swimming pools ENGLISH 2.3 H YDRAULIC CONNECTIONS 2.3.1 Assembly of the accessories Probe holder assembly - The injection probe holder (j) can be installed on a DN50 or DN60 PVC tube, after a 24mm hole has been drilled - Ensure the injection tube is inserted so that it points in the direction of flow marked by the arrow - The injection probe holder must be installed within ±... - Page 8 TECHNOPOOL Dosing systems for swimming pools ENGLISH 3) Let the electrode cable pass through the cut on the nut (ref. 11) 4) Proceed with electrode calibration, (see chapter 4.10-4.11) 5) Carefully insert the electrode in the probe holder, until the o-ring reach its seat between the cap and the probe holder.
-
Page 9: Technopool Menu
TECHNOPOOL Dosing systems for swimming pools ENGLISH 3.0 TECHNOPOOL MENU Tecnopool programming system is divided in 2 menus: User and Installer. ADSP7000570 rev. 2.0 06/08/2021 9/37... -
Page 10: User Menu
TECHNOPOOL Dosing systems for swimming pools ENGLISH The User Menu is used to verify the status of pumps and solenoid valve and also allows to prime the pumps. Default screen shows the reading of the pH and Rx or Cl or HP and the temperature. (redox in mV is displayed on Time/pH/Rx and pH/RxTechnopool3). -
Page 11: Manual Activation Of Pumps And Solenoid Valve
TECHNOPOOL Dosing systems for swimming pools ENGLISH 3.1.1 Manual activation of pumps and solenoid valve The priming sub-menu can be accessed from the user menu, which allows the manual operation of pumps and solenoid valve. To access this menu, press key F for 3 seconds; the following options will be displayed: First Product (it is not displayed on pH/Rx, pH/ClJ and pH/HP Technopool3) Press keys ▼▲... -
Page 12: Installer Menu
TECHNOPOOL Dosing systems for swimming pools ENGLISH NSTALLER MENU The installer menu is used to program Technopool system. To access this menu, press key Enter for 3 seconds; password request will be displayed: 3.2.1 Password insertion Press keys ▼▲ to set the value; to pass to the next digit press key Enter; to confirm press Enter for 3 seconds. -
Page 13: Quick Programming
TECHNOPOOL Dosing systems for swimming pools ENGLISH 4.0 QUICK PROGRAMMING ELECTION OF THE LANGUAGE OF THE SYSTEM Select option Language from the installer menu. To confirm and exit, press key Enter for 3 seconds. ETTING THE TEMPERATURE Select option Temperature from the installer menu. Temperat. - Page 14 TECHNOPOOL Dosing systems for swimming pools ENGLISH Qty first Prod. Indicates the quantity to be dosed in ml or litres. Press keys ▼▲ to set the desired value and Enter to confirm. Values that can be set are 0÷999 ml or 1.0÷9.9 litres. Frq.
-
Page 15: Setting The Ph (Pump Ph)
TECHNOPOOL Dosing systems for swimming pools ENGLISH To calculate exactly the dosing, the following formula can be applied: Example: First Prod. Qty = 174 ml TMax. first P. Qty = 400 ml @ 35°C First Prod. Freq. = 5 h First Prod. -
Page 16: Setting The Redox (P2 Pump)
TECHNOPOOL Dosing systems for swimming pools ENGLISH Read value - Set point difference is considered an absolute value. is the difference between the set pH cycle period – T On the other hand, T Example: Set Point pH = 7 pH Work Mode pH = Acid/pH Prop. -
Page 17: Setting The Chlorine Probe (Pump P2)
TECHNOPOOL Dosing systems for swimming pools ENGLISH ETTING THE CHLORINE PROBE PUMP (it is displayed for technopool3 pH/ClJ) The full reading scale of the chlorine probe is set in the ppm Cl Max menu. Enter the Set Point/Timer menu to set this parameter: ppm Cl Max This represents the full reading scale of the chlorine probe. -
Page 18: Setting The Hydrogen Peroxide Probe (Pump P2)
TECHNOPOOL Dosing systems for swimming pools ENGLISH ETTING THE HYDROGEN PEROXIDE PROBE PUMP (it is displayed for technopool3 pH/HP) The full reading scale of the hydrogen peroxide probe is set in the ppm HP Max menu. Enter the Set Point/Timer menu to set this parameter: ppm HP Max This represents the full reading scale of the hydrogen peroxide probe. -
Page 19: Setting The Cyclic Dosing ( Pump)
TECHNOPOOL Dosing systems for swimming pools ENGLISH ETTING THE CYCLIC DOSING PUMP (it is displayed for Time/pH/Time technopool3) Depending on whether the temperature has been programmed, the following parameters must be set for the pump operation for the cyclic dosing: Temperature OFF (disabled): Qty Sec. -
Page 20: Setting The Solenoid Valve
TECHNOPOOL Dosing systems for swimming pools ENGLISH The quantity of product to be dosed is proportional to the temperature reached during the latest dosing, according to the diagram below: To calculate exactly the dosing, the following formula can be applied: Example: Qty sec. - Page 21 TECHNOPOOL Dosing systems for swimming pools ENGLISH Relay On – Relay On T. Max – Relay Off – Relay Off T. Max Temperature OFF (disabled): Relay On – Relay Off Enter the installer menu, select option Set Point/Timer , press key Enter and then key F more than once, until Relay On is displayed: Temperature OFF (disabled): Relay On...
-
Page 22: Calibration Of Ph Electrode
TECHNOPOOL Dosing systems for swimming pools ENGLISH To calculate exactly the dosing, the following formulas can be applied: 4.10 C ALIBRATION OF P ELECTRODE The calibration of the pH electrode is carried out on two points, therefore it is requested to have the following material always available: ▪... -
Page 23: Calibrating The Chlorine Electrode
TECHNOPOOL Dosing systems for swimming pools ENGLISH Select the option Rx Calibration from the user menu and follow the instructions displayed. Once the procedure is completed, the quality of the calibrated electrode will be displayed; if the quality of the probe results 25% or less, carry out a new calibration. - Page 24 TECHNOPOOL Dosing systems for swimming pools ENGLISH When the system acquires the calibration value, two parameters regarding the measure are displayed: ▪ the current value (0.00÷20.00 mA). ▪ the measured hydrogen peroxide value (0.0÷500.0 ppm). Furthermore, the value detected by the DPD4 reference instrument can be associated with the value measured by the system using the arrow keys in the HP set menu.
-
Page 25: Advanced Programming
TECHNOPOOL Dosing systems for swimming pools ENGLISH 5.0 ADVANCED PROGRAMMING ONFIGURATION OF THE SETTINGS Stabiliz. Time When the system is powered or after an alarm occurred, it waits a stabilisation time before it starts dosing (probes need some minutes to stabilise the readings). -
Page 26: Restore The Default Parameters
TECHNOPOOL Dosing systems for swimming pools ENGLISH ESTORE THE DEFAULT PARAMETERS The restoration of the factory parameters is enabled (refer to appendix 1). The system asks if you are sure to proceed. Press keys ▼▲ to select the two options and Enter to confirm. ... -
Page 27: Alarm Signal
TECHNOPOOL Dosing systems for swimming pools ENGLISH CI dosing alarm (only for technopool3 pH/ClJ) This is a dosing alarm and if the CI pump doses the product and there is no variation in CI (2.5% of the value set in ppm CI Max) during the set time, the system signals the alarm and stops dosing. -
Page 28: Return To The After-Sales Service
TECHNOPOOL Dosing systems for swimming pools ENGLISH 9.0 RETURN TO THE AFTER-SALES SERVICE The material must be sent back in its packaging with all its original protection devices before the guarantee period is completed. The system must be clean and the chemical product removed from the tubes. The measure electrode must be placed in its original packaging and protected with the cap full of water. -
Page 29: Appendix 1 - Default Parameters
TECHNOPOOL Dosing systems for swimming pools ENGLISH 11.0 APPENDIX 1 – Default parameters Parameter Default value Language English First Product Quantity 175 ml First Product Quantity at the maximum temperature 400 ml 35 ˚C First Product Maximum Temperature First Product Frequency 1 day First Product Hour h 13.00... -
Page 30: Appendix 2 - Technopool Range
TECHNOPOOL Dosing systems for swimming pools ENGLISH 12.0 APPENDIX 2 – TECHNOPOOL RANGE The range of technopool3 product family is the following: Technopool3 Time/pH/Time It is a system with three peristaltic pumps controlled in the following way: ▪ P1: pump controlled by timer 1. ▪... -
Page 31: Appendix 3 - Free Chlorine Measure Cell (Cl)
TECHNOPOOL Dosing systems for swimming pools ENGLISH 13.0 APPENDIX 3 – FREE CHLORINE MEASURE CELL (CL) • Operating temperature: 0 to 45° C. • Water conductivity: > 10 μ S/cm. • Maximum working pressure: 0.5 bar. • Output signal: 4÷20 mA current proportional to the ppm reading. •... - Page 32 TECHNOPOOL Dosing systems for swimming pools ENGLISH Procedure to fill the electrolyte only for ADELCLJ15 ▪ ATTENTION: If the membrane holder cap (11) is removed when the ventilation hole (14) is not open, the membrane is ruined!!! ▪ Move the transparent ring (10) that covers the ventilation hole (14) downward (above the marking) with a small screwdriver in order to open the hole.
-
Page 33: Appendix 4 - Hydrogen Peroxide Measure Cell (Hp)
TECHNOPOOL Dosing systems for swimming pools ENGLISH 14.0 APPENDIX 4 – HYDROGEN PEROXIDE MEASURE CELL (HP) ▪ Operating temperature: from 1 to 45° C. ▪ Maximum working pressure: 1 bar. ▪ Output signal: 4÷20 mA current proportional to the ppm reading. ▪... - Page 34 TECHNOPOOL ROCEDURE TO CLEAN AND FILL THE ELECTROLYTE Step #1: loosen the membrane cap ▪ ATTENTION: if the membrane cap is removed when the ventilation hole is not open, the membrane is ruined by the vacuum created in the electrolyte chamber!!! ▪...
-
Page 35: Esploso / Exploded View / Explose / Dibujo
TECHNOPOOL PH-RX / TECHNOPOOL 3 ESPLOSO / EXPLODED VIEW / EXPLOSE / DIBUJO ADSP7000570 rev. 2.0 06/08/2021 35/37... - Page 36 TECHNOPOOL PH-RX / TECHNOPOOL 3 ADSP7000570 rev. 2.0 06/08/2021 36/37...
- Page 37 For other languages please visit: TECHNOPOOL PH-RX TECHNOPOOL 3 ADSP7000570 rev. 2.0 06/08/2021 37/37...
