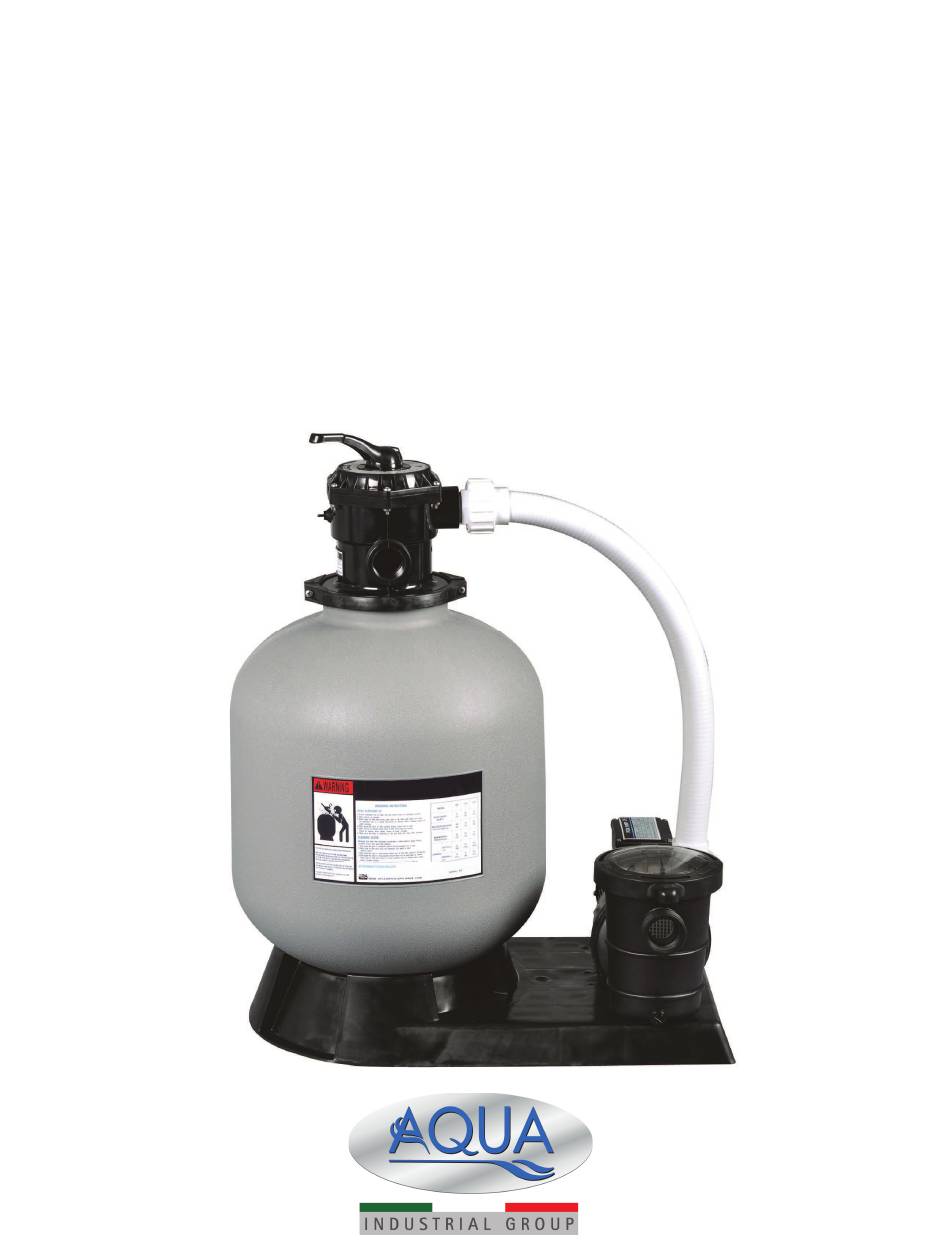

- Page 1 Sand filter system instr uction...
- Page 2 SAFETY INFORMATION The sand filters are designed to work with water at temperature>than 0! and <than 45!.The filter should never be operated outside of these temperatures or damage may occur. The installation should be carried out in accordance to the safety instructions of swimming pools and the specific instructions for each facility The user should make sure that the installation is carried out by qualified authorized persons and that these persons have first carefully read the following instructions.
- Page 3 Raised point Check the air release hose are fixed well on the body of lateral holder, and another end of the air release hose must be out of the sand. DO NOT embedding the air release hose in the sand. To eliminate stress on the laterals, fill the filter vessel with enough water to provide a cushioning effect when the filter sand is poured in.
- Page 4 Depress top mount valve handle and rotate to BACKWASH position. Prime and start pump according to pump instructions. NOTE: ALL SUCTION AND DISCHARGE VALVES MUST BE OPENING WHEN STARTING THE SYSTEM. FAILURE TO DO SO COULD CAUSE SEVERE PERSONAL INJURY. MAKE SURE THE FILTER VESSEL ARE FULL FILL THE WATER BEFORE START UP THE PUMP.
- Page 5 SPECIFICATIONS MEDIA REQUIRED Model No.: Flow rate MAX. FILTER PRESURE AREA TYPE TYPE FILTERSAND 72027 1.25 0.12 72028 0.19 72029 0.26 72228 1.25 0.12 72229 0.19 72230 11.4 0.26 72041 1.25 0.12 0.45-0.56mm 72042 0.19 "0.018-0.022in 72043 0.26 72241 1.25 0.12...
- Page 6 Hose adaptor 65021005000 Hose clamp 65749002011 1 1/2 (38mm)hose for 72041/72241 Adaptor for 647201802001 72027/72028/72029/72228/72229/72230/72042/72043/72242/72243 647202772 PVC hose for 72027/72228 647202871 PVC hose for 72028/72229 647202971 PVC hose for 72029/72230 647204271 PVC hose for 72042/72242 647204371 PVC hose for 72043/72243 72515 0.35HP Pump (230V-50HZ) for 72041...
- Page 7 72715 0.35HP Pump (115V-60HZ) for 72241 72527 0.5HP Pump (230V-50HZ) for 72027 72528 0.75HP Pump (230V-50HZ) for 72028 72529 1.0HP Pump (230V-50HZ) for 72029 72728 0.75HP SPL Pump (115V-60HZ) for 72228 72729 1.0HP SPL Pump (115V-60HZ) for 72229 72730 1.5HP SPL Pump (115V-60HZ) for 72230 72542 0.75HP Pump (230V-50HZ) for 72042...
- Page 8 Adaptor f or 72058/72059/72060 /72258/72259/72260/ 647 201802001 720 62/72063/72064 /72262/722 63/72264 647 205871 P V C hos e f or 72027/72228 647 205971 P V C hos e f or 72028/72229 647 202971 P V C hos e f or 72029/72230...
