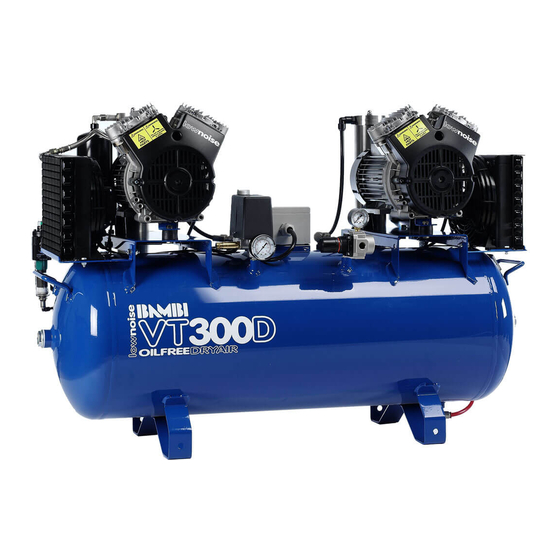

Oil-Free Range Operators Handbook
VT, VTS & VTH models
Covering Models:-
VT75 / VT150 / VT200 / VT250 / VT300 / VT400
VT75D / VT150D / VT200D / VT250D / VT300D / VT400D
VTS75 / VTS150 / VTS200 / VTS250
VTS75D / VTS150D / VTS200D / VTS250D
VTH75 / VTH150 / VTH200
VTH75D / VTH150D / VTH200D
BAMBI AIR LTD
152 Thimble Mill Lane
Heartlands
Birmingham
B7 5HT
Tel: 0121 322 2299
Fax: 0121 322 2297
Email: sales@bambi-air.co.uk
www.bambi-air.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bambi VT

Summary of Contents for Bambi VT

  • Page 1 Oil-Free Range Operators Handbook VT, VTS & VTH models Covering Models:- VT75 / VT150 / VT200 / VT250 / VT300 / VT400 VT75D / VT150D / VT200D / VT250D / VT300D / VT400D VTS75 / VTS150 / VTS200 / VTS250...
  • Page 2 Bambi reserves the right to modify the contents of this operating booklet without notice and the information is in no way binding on the company.

  • Page 3: Safety Precautions

    1) Safety Precautions 2) Siting The Compressor What you must do: What you must do: • Read these instructions before using • Provide adequate protection from the your air compressor. weather. • Ensure the compressor has been • Site the compressor level in both installed, electrically connected planes.
  • Page 4 3) Unpacking Instructions for: VTS75 / VTS150 / VTS200/ VTS250 3.1) Fitting Mounting Castors Before using the compressor you must remove the external packaging and fit the castors supplied as they also provide essential clearance for the lower cooling fan exhaust.

  • Page 5: Operation

    4) Operation Refer to exploded parts diagrams and illustrations when reading this section. Airline should be fitted to the regulator outlet. Note ! For VTS Models Ensure the transit packing has been removed as described in the previous section. Failure to do so will cause damage and invalidate your warranty 4.1) Starting &...

  • Page 6: Routine Maintenance

    5) Routine Maintenance Refer to preventative maintenance section for frequency. 5.1) Draining the Air Receiver Drain condensate from air receiver at a pressure of no more than 2 Bar. Slowly open the red coloured drain tap provided to allow water to flow out – see fig 5. Fig.
  • Page 7 To re-set follow the procedure below- Models: VT[H]75/75D, VT[H]150/150D, VT[H]200/200D, VT250/250D Switch off at the pressure switch [see Fig. 2]. Allow 50 minutes for the motor to cool down then switch back on at the pressure switch.

  • Page 8: Preventative Maintenance

    8) Removing Housing Cover (VTS Models Only) For routine maintenance it may be necessary to remove the top cover. Adhere to the following procedure: Models: VTS 75/75D, 150/150D, 200/200D Disconnect from the mains power supply and release all the air from the compressor and the air system.

  • Page 9: Technical Specification

    Technical Specification VT 0.75Hp Pump Specification Motor kW / Hp 0.55 / 0.75 Voltage 220/240 Frequency Hz Amps Displacement l/min VT 1.5Hp Pump Specification Motor kW / Hp 1.1 / 1.5 Voltage [Single phase - 3 phase] 220/240 - 380/415...
  • Page 10 VT75 Ref No. Description Part no. Rubber foot BPB0601 Pressure switch BPB0550 Inspection plug BPB0243 40mm line pressure gauge BPB0657 Inspection plug seal BPB0502 Pressure regulator BPB0510 24 litre tank BPB0260 1/4 x 1/4 adaptor BPB1078 30mm rubber mounting BPB1296 1/4 on-off tap BPB1079 Solenoid c/w cable...
  • Page 11 VTH75 Ref No. Description Part no. Rubber foot BPB0601 Red nylon drain tube BPB0284 Inspection plug BPB0243 50mm tank pressure gauge BPB1081 Inspection plug seal BPB0502 Pressure switch BPB0550 24 litre tank BPB0473 40mm line pressure gauge BPB1077 Non-return valve BPB0656 Pressure regulator BPB0510...
  • Page 12 VT75D 3/8 Adaptor BPB0283 Ref No. Ref No. Description Description Part no. Part No. 3/8 x 10mm tube swivel elbow BPB0277 Condensate diffuser 1/4BSP Condensate Diffuser BPB0588 BPB1348 3/8 Adaptor 50mm tank pressure gauge BPB0658 BPB0283 Pressure switch BPB0550 1/8 x 6mm push tube fitting 1/4BSPF x 10mm Tube connnector BPB1347 BPB0154 50mm tank pressure gauge...
  • Page 13 VTH75D Ref No. Description Part No. 1/4 Drain valve tap BPB0895 Ref No. Description Part no. 30mm mounting rubber BPB1296 1/4BSP Condensate Diffuser BPB1348 Condensate diffuser BPB0588 1/4 Drain valve tap Red nylon drain tube BPB0895 BPB0284 1/4BSPF x 10mm Tube connnector BPB1347 1/4 x 10mm Tube swivel elbow BPB0276...
  • Page 14 VT150 / VT200 Ref No. Description Part no. 50mm tank pressure gauge BPB0658 Rubber foot BPB0601 Pressure switch BPB0550 Inspection plug BPB0243 40mm line pressure gauge BPB0657 Inspection plug seal BPB0502 Pressure regulator BPB0510 50 litre tank BPB0261 1/4 adaptor BPB1078 30mm Rubber mounting BPB1296...
  • Page 15 VTH150 / VTH200 Ref No. Description Part no. Rubber foot BPB0601 Drain tube BPB0284 Inspection plug BPB0243 50mm tank pressure gauge BPB1081 Inspection plug seal BPB0502 Pressure switch BPB0550 50 litre tank BPB0474 40mm line pressure gauge BPB1077 Non return valve BPB0656 Pressure regulator BPB0510...
  • Page 16 VT150D / VT200D Ref No. Description Part no. 3/8 M adaptor BPB0283 50mm Tank pressure gauge BPB0658 Ref No. Description Part No. Condensate diffuser BPB0588 50mm Tank pressure gauge BPB0658 Pressure switch BPB0550 1/4BSP Condensate Diffuser BPB1348 1/8 x 6mm Push fitting BPB0154 Pressure switch BPB0550...
  • Page 17 VTH150D / VTH200D Ref No. Description Part no. 1/4 Drain tap BPB0895 1/4 Drain tap BPB0895 Ref No. Description Part No. Condensate diffuser BPB0588 Drain tube BPB0284 Drain tube BPB0284 1/4BSP Condensate Diffuser BPB1348 1/8 x 6mm Push fitting BPB0154 1/4 x 10mm Elbow BPB0276 1/4BSPF x 10mm Tube connnector...
  • Page 18 VTS75 / 150 / 200 1/4 x 10mm Elbow BPB0276 Ref No. Description Part no. Reducing bush BPB0255 On/Off switch APT626 Cabinet lid BPB0763 1/4 x 6mm Tube swivel elbow BPB0042 6mm tube Y connector BPB0279 On/Off valve BPB1079 3/8 x 6mm Tube fitting BPB0756 1/4 10mm Stud elbow BPB0820...
  • Page 19 41/41a...
  • Page 20 VTS75D / 150D / 200D Ref No. Description Part no. 3/8 Non-return valve BPB0822 On/off switch APT626 3/8 Plated elbow BPB0282 Cabinet lid BPB0763 Safety valve BPB1084 Delivery pipe BPB0728 Pressure switch BPB0550 3/8 Bulkhead connector BPB0749 Delivery pipe BPB0508 Air filter - Centrifugal - Coalescing BPB1359 1/4 Tee piece...
  • Page 21 43/43a 42/42a...
  • Page 22 VT250 Ref No. Description Part no. 1/4 x 1/4 Adaptor BPB1078 M8 Hex full nut BPB0161 3/8 x 3/8 Adaptor BPB0283 Crankcase mounting bracket BPB0517 On/Off valve BPB1079 20mm Rubber mount BPB0273 Regulator BPB0510 M8 Flanged nut BPB0130 Pressure gauge BPB0657 2.0hp Motor mounting bracket BPB0516...
  • Page 23 VT250D Ref No. Description Part No. Delivery pipe BPB0858 3/8 Elbow BPB0614 Air filter BPB1359 3/8 x 3/8 Adaptor CP0713 6mm od x 4mm id Black Nylon Tube BPB0203 Delivery pipe BPB0357 Air filter element BPB1367 Solenoid valve / cable assembly BPB0545 10mm Push fit elbow 10mm M/F BPB1345...
  • Page 24 VTS250 1/8 x 6mm Elbow BPB0278 Ref No. Description Part no. Delivery pipe BPB0508 Top panel BPB0354 3/8 x 10mm Tube elbow BPB0593 3/8 x 10mm Tube elbow BPB0277 3/8 Elbow BPB0282 3/8 Bulkhead connector BPB0749 Non-return valve BPB0656 Safety valve BPB1084 1/4 x 6mm Tube elbow BPB0042...
  • Page 26 VTS250D 3/8 Bulkhead connector BPB0749 Ref No. Description Part no. 3/8 Elbow BPB0629 Top panel BPB0354 Cooling fan BPB0727 Twin tower dryer BPB0836 Relief valve: 10bar BPB1084 Back panel BPB0350 Extension piece BPB0150 Cabinet RH panel BPB0352 Cabinet centre panel BPB0353 59ltr vessel BPB0230...
  • Page 28 VT300 / VT400 Ref No. Description Part no. Drain valve BPB0281 Inspection plug seal BPB0502 Solenoid c/w cable BPB0545 Inspection plug BPB0243 1/8 x 6mm Push fitting BPB0154 100 Litre tank BPB0262 Crankcase mounting bracket [VT300] BPB0347 Rubber foot BPB0601 Crankcase mounting bracket [VT400] BPB0517 3/8 Adaptor BPB0283...
  • Page 29 VT300D / VT400D Air filter - Centrifugal - Coalescing Coalescing filter - auto drain BPB1336 BPB1359 Element for BPB1359 BPB1367 Ref No. Description Part No. Coalescing filter - auto drain BPB1336 Ref No. Description Part no. VT300D / VT400D Air filter - Centrifugal - Coalescing BPB1359 1/4 x 3/8 Adaptor BPB0591...
  • Page 30 Motor / Pump Parts: VT[H]75 / VT[H]75D / VT[H]150 / VT[H]150D / VT300/VT300D Ref No. Description Part no. Cylinder head BPB0681 Ref No. Description Part No. Cylinder head BPB0681 Intake filter BPB0682 3/8 Elbow BPB0614 3/8 Elbow BPB0614 Intake filter...
  • Page 31 Motor / Pump Parts: VT[H]200 / VT[H]200D / VT400 / VT400D Ref No. Description Part no. Fan ring BPB0705 Ref No. Description Part No. Fan ring BPB0705 Elbow BPB0614 Fan cover fixing BPB0706 Elbow BPB0614 Fan cover fixing BPB0706 3/8BSP M/M Equal adaptor...
  • Page 32 Motor / Pump Parts: VT250 / VT250D / VTS250 / VTS250D Ref No. Description Part no. VT250 Inner fan cover BPB0987 Ref No. Description Part No. VT250 Inner fan cover BPB0987 Outlet connector BPB0614 Piston seal BPB0623 Outlet connector BPB0614 Piston seal BPB0623 Outlet connector...

  • Page 33: Wiring Diagrams - Single Phase

    Wiring Diagrams - SINGLE PHASE VT[H]75 / VT[H]150 / VT[H]200 / VT[H]75D / VT[H]150D / VT[H] 200D / VT250 VT250D DO NOT ALTER!! KKEY: - Live - Neutral - Earth VT300/400 1 - Supply VT300D/400D 2 - Solenoid 3 - Earth...
  • Page 34 Wiring Diagrams - SINGLE PHASE - VTS VTS75 150 200 Earth case 1 - Thermal fan switch 4 - Thermal trip 10 - Compressor KKEY: 2 - Pressure switch 5,6,7 & 8 Connection blocks 11 - Cooling fan - Live 3 - Exhaust fan 9 - Solenoid 12 - Power in...
  • Page 35 Wiring Diagrams - SINGLE PHASE - VTS cont’d VTS250 / 250D Earth to case Connector 1 - Power in 5,6,7,8,14 & 15 Connection blocks 12 - Thermal fan switch NOTE! The cooling fans 2 - Pressure switch 9 - Solenoid 13 - Timer box remain live even with 3 - Cooling fans...

  • Page 36: Pressure Switch

    Wiring Diagrams - THREE PHASE VT[H]150 / VT[H]200 / VT[H]150D / VT[H]200D VT 250& VT250D MOTOR PRESSURE SWITCH SUPPLY Connector block SOLENOID KKEY: AFTER COOLER FAN - Live (Dryer models only) - Neutral - Earth VT300/400/300D/400D Overload set to 10 amps...

  • Page 37: Service Record

    SERVICE RECORD Date installed____________________________ Date Maintenance work Signature / Company SERVICE KITS BPVT 1 Service Kit covers models: VT75 / VT150 / VT250 (2 kits) VT300 (2 kits) – including H/D/S variants BPVT2 Service Kit covers models: VT200 and VT400 (2 kits) - including H/D/S variants BPB0655 required to change the Coalescing Filter Element BPDSK Service Exchange Dryer...
  • Page 38 Duty Cycle Time: Full Flow @50% Performance: [100% pass] NOTE: To ensure the optimum performance of your Bambi dryer please note that the desiccant and filter need to be changed every two years or if the Dew Point level is no longer achieved due to degradation of the...
  • Page 39 NOTES...
  • Page 40 Declaracion de Conformidad CE - EG Verklaring van Overeenstemming EG Konformitatserklarung Declaracion de Conformidad CE - EG Verklaring van Overeenstemming Bambi Air Compressors declares that this product conforms to the European Directives listed below. Bambi Air Ltd declares that this product conforms to the European Bambi Air Compressors declare que ce produit est conforme aux directives Directives listed below.
