Bambi VT75 Operator's Handbook Manual

Oil-free range vt series vts series
Hide thumbs Also See for VT75:
Table of Contents

Advertisement

Quick Links

Oil-Free Range Operators Handbook
VT
VTS models
&
Covering Models:-

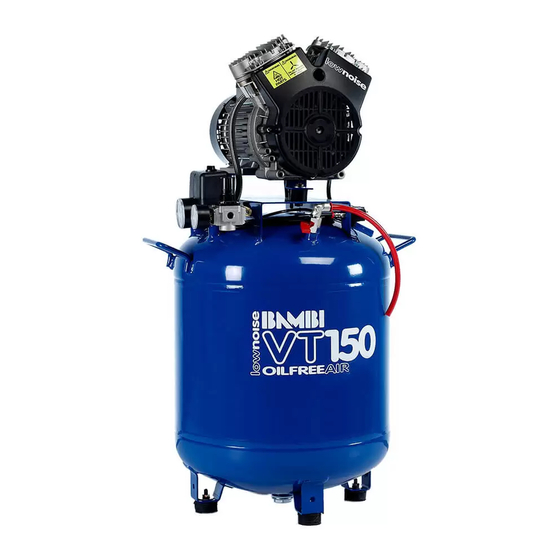

VT150
VT150D
VTS75
VTS150
VTS75D
VTS150D
BAMBI AIR COMPRESSORS LTD
152 Thimble Mill Lane
Heartlands
Birmingham
B7 5HT
Tel: 44 (0) 121 322 2299
Fax: 44 (0) 121 322 2297
Email: sales@bambi-air.co.uk
www.bambi-air.co.uk
VT200
VT200D
VTS200
VTS200D
VT300
VT400
VT300D
VT400D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT75 and is the answer not in the manual?

Questions and answers

Related Manuals for Bambi VT75

Summary of Contents for Bambi VT75

  • Page 1 VT150D VT200D VT250D VT300D VT400D VTS75 VTS150 VTS200 VTS250 VTS75D VTS150D VTS200D VTS250D BAMBI AIR COMPRESSORS LTD 152 Thimble Mill Lane Heartlands Birmingham B7 5HT Tel: 44 (0) 121 322 2299 Fax: 44 (0) 121 322 2297 Email: sales@bambi-air.co.uk www.bambi-air.co.uk...
  • Page 2 Bambi reserves the right to modify the contents of this operating booklet without notice and the information is in no way binding on the company.

  • Page 3: Electrical Connections

    1) Safety Precautions 2) Siting The Compressor What you must do: What you must do: • Read these instructions before using • Provide adequate protection from the your air compressor. weather. • Ensure the compressor has been • Site the compressor level in both installed, electrically connected planes.
  • Page 4 3) Unpacking Instructions for: VTS75 / VTS150 / VTS200/ VTS250 3.1) Fitting Mounting Castors Before using the compressor you must remove the external packaging and fit the castors supplied as they also provide essential clearance for the lower cooling fan exhaust.
  • Page 5 4) Operation Refer to exploded parts diagrams and illustrations when reading this section. Note ! For VTS Models Ensure the transit packing has been removed as described in the previous section. Failure to do so will cause damage and invalidate your warranty 4.1) Starting &...
  • Page 6 5) Routine Maintenance Refer to preventative maintenance section for frequency. 5.1) Draining the Air Receiver Drain condensate from air receiver at a pressure of no more than 2 Bar. Slowly open the red coloured drain tap provided to allow water to flow out – see fig 5. Fig.
  • Page 7 To re-set follow the procedure below- Models: VT75/75D, VT150/150D, VT200/200D, VT250/250D Switch off at the pressure switch [see Fig. 2]. Allow 50 minutes for the motor to cool down then switch back on at the pressure switch.
  • Page 8 8) Removing Housing Cover (VTS Models Only) For routine maintenance it may be necessary to remove the top cover. Adhere to the following procedure: Models: VTS 75/75D, 150/150D, 200/200D Disconnect from the mains power supply and release all the air from the compressor and the air system.
  • Page 9 Technical Specification VT 0.75Hp Pump Specification Motor Kw / Hp 0.55 / 0.75 Voltage 220/240 Frequency Hz Amps Displacement l/min VT 1.5Hp Pump Specification Motor Kw / Hp 1.1 / 1.5 Voltage [Single phase - 3 phase] 220/240 - 380/415 Frequency Hz Amps [Single phase - 3 phase] 6.8 - 2.9...
  • Page 10 VT75 Ref No. Description Part no. Red nylon drain tube BPB0284 Rubber foot BPB0601 50mm tank pressure gauge BPB0658 Inspection plug BPB0243 Pressure switch BPB0550 Inspection plug seal BPB0502 40mm line pressure gauge BPB0657 24 litre tank BPB0260 Pressure regulator...
  • Page 11 VT75D Ref No. Description Part no. Red nylon drain tube BPB0284 Condensate diffuser BPB0588 3/8 x 10mm tube swivel elbow BPB0277 1/8 x 6mm push tube fitting BPB0154 3/8 M adaptor BPB0283 Condensate bottle - complete BPB0088 50mm tank pressure gauge BPB0658 1.3m 6mm nylon tube BPB0203...
  • Page 12 VT150 / VT200 Ref No. Description Part no. 0.6m drain tube BPB0284 Rubber foot BPB0601 50mm tank pressure gauge BPB0658 Inspection plug BPB0243 Pressure switch BPB0550 Inspection plug seal BPB0502 40mm line pressure gauge BPB0657 50 litre tank BPB0261 Pressure regulator BPB0510 40mm mounting rubber BPB0272...
  • Page 13 VT150D / VT200D Ref No. Description Part no. 3/8 x 10mm Elbow [VT200D] BPB0280 Condensate diffuser BPB0588 3/8 x 10mm Elbow [VT150D] BPB0277 1/8 x 6mm Push fitting BPB0154 3/8 M adaptor BPB0283 Condensate bottle complete BPB0088 50mm Tank pressure gauge BPB0658 1.1m 6mm Nylon tube BPB0203...
  • Page 14 VTS75 / 150 / 200 M8 nut BPB0161 Ref No. Description Part no. 1/4BSP x 10mm elbow BPB0276 On/Off switch APT626 Cabinet lid BPB0763 1BSP x 1/4BSP reducing bush BPB0255 1/4BSPM x 6mm Tube swivel elbow BPB0042 On/Off valve BPB1079 6mm tube Y connector BPB0279 1/4BSPF x 10mm stud elbow...
  • Page 16 VTS75D / 150D / 200D Ref No. Description Part no. 3/8BSPF x 10mm tube connector BPB0275 On/off switch APT626 3/8BSPM non-return valve BPB0822 Cabinet lid BPB0763 3/8BSP M/F plated elbow BPB0282 165mm delivery pipe BPB0728 3/8BSP M/F plated elbow BPB0282 3/8BSP Bulkhead connector BPB0749 Safety valve...
  • Page 18 VT250 Ref No. Description Part no. 1/4BSPT x 1/4BSPMT adaptor BPB1078 M8 Hex full nut BPB0161 3/8BSP x 3/8BSP adaptor BPB0283 Crankcase mounting bracket BPB0517 On/Off valve BPB1079 20mm Rubber mount BPB0273 Pressure regulator BPB0510 M8 Flanged nut BPB0130 Pressure gauge BPB0657 2.0hp Motor mounting bracket BPB0516...
  • Page 19 VT250D Description Part no. 270mm delivery pipe BPB0858 3/8BSP M/F elbow BPB0614 Coalescing filter BPB0983 3/8BSP x 3/8BSP adaptor CP0713 3/8BSP M/F elbow BPB0282 185mm Delivery pipe BPB0357 Coalescing filter BPB0983 Coalescing filter BPB0983 Coalescing filter BPB0983 Solenoid valve / cable assembly BPB0545 1/8BSPF x 6mm tube elbow fitting BPB0278...
  • Page 20 VTS250 Cabinet LH panel BPB0351 Ref No. Description Part no. 1/8BSPF x 6mm elbow BPB0278 Top panel BPB0354 3/8BSPF x 10mm tube elbow BPB0593 400mm Delivery pipe BPB0508 3/8BSPM x 10mm tube elbow BPB0277 3/8BSP Bulkhead connector BPB0749 3/8BSP M/F elbow BPB0282 Safety valve BPB1084...
  • Page 22 VTS250D 3/8BSP Bulkhead connector BPB0749 Ref No. Description Part no. Coalescing filter: manual drain BPB0983 Top panel BPB0354 Cooling fan BPB0727 165mm Delivery pipe BPB0728 3/8BSP Bulkhead connector BPB0749 Back panel BPB0350 3/8BSP M/F elbow BPB0282 Cabinet RH panel BPB0352 Cabinet centre panel BPB0353 3/8BSP Elbow...
  • Page 24 VT300 / VT400 Ref No. Description Part no. 3/8 x 1/4 Hose tail BPB0652 Inspection plug seal BPB0502 Drain valve BPB0281 Inspection plug BPB0243 Solenoid c/w cable BPB0545 100 Litre tank BPB0262 1/8 x 6mm Push fitting BPB0154 Rubber foot BPB0601 Crankcase mounting bracket [VT300] BPB0347 3/8 M adaptor...
  • Page 25 VT300D / VT400D 1/8 x 6mm Elbow BPB0044 Ref No. Description Part no. Coalescing filter BPB0258 Aftercooler mounting bracket LH BPB0863 Coalescing filter element BPB0655 Inspection plug BPB0243 1/4 x 3/8 Adaptor BPB0591 Inspection plug seal BPB0502 Dryer mounting clamp BPB0503 Rubber foot BPB0601...
  • Page 26 Motor / Pump Parts: VT75 / VT75D / VT150 / VT150D / VT300/VT300D Ref No. Description Part no. Cylinder head BPB0681 Motor VT75 BPB0663 Intake filter BPB0682 Motor VT150 BPB0664 Cylinder head gasket BPB0620 3/8 Elbow BPB0614 Valve plate nut...
  • Page 27 Motor / Pump Parts: VT200 / VT200D / VT400 / VT400D Ref No. Description Part no. Fan ring BPB0705 Motor VT200 BPB0697 Fan cover fixing BPB0706 Elbow BPB0614 Cylinder head bolt BPB0680 3/8BSP M/M Equal adaptor BPB0654 Cylinder head BPB0681 Block fixing BPB0665 Intake filter...
  • Page 28 Motor / Pump Parts: VT250 / VT250D / VTS250 / VTS250D Ref No. Description Part no. VT250 Inner fan cover BPB0987 Motor VT250 BPB0995 Piston seal BPB0623 Outlet connector BPB0614 Top washer BPB0693 Outlet connector BPB0654 Top washer screw BPB0692 Block fixing BPB0665 Cylinder...
  • Page 29 Wiring Diagrams - SINGLE PHASE- VT VT75D/150D/200D/250D VT75/150/200/250 DO NOT ALTER!! KKEY: - Live - Neutral - Earth VT300/400 1 - Supply VT300D/400D 2 - Solenoid 3 - Earth 4 - Motor 5 - Pressure Switch 6 - Cooling fan...
  • Page 30 Wiring Diagrams - SINGLE PHASE - VTS VTS75 150 200 Earth case 1 - Thermal fan switch 4 - Thermal trip 10 - Compressor KKEY: 2 - Pressure switch 5,6,7 & 8 Connection blocks 11 - Cooling fan - Live 3 - Exhaust fan 9 - Solenoid 12 - Power in...
  • Page 31 Wiring Diagrams - SINGLE PHASE - VTS cont’d VTS250 / 250D Earth to case Connector 1 - Power in 5,6,7 & 8 Connection blocks 12 - Thermal fan switch NOTE! 2 - Pressure switch 9 - Solenoid 13 - Timer box The cooling fans remain live even with 3 - Cooling fans...
  • Page 32 Wiring Diagrams - THREE PHASE VT150/200/250 and 150/200/250D MOTOR PRESSURE SWITCH SUPPLY Connector block SOLENOID KKEY: AFTER COOLER FAN - Live (Dryer models only) - Neutral - Earth VT300/400/300D/400D Overload set to 10 amps DO NOT ALTER! Solenoid PRESSURE SWITCH Solenoid SUPPLY GREY...
