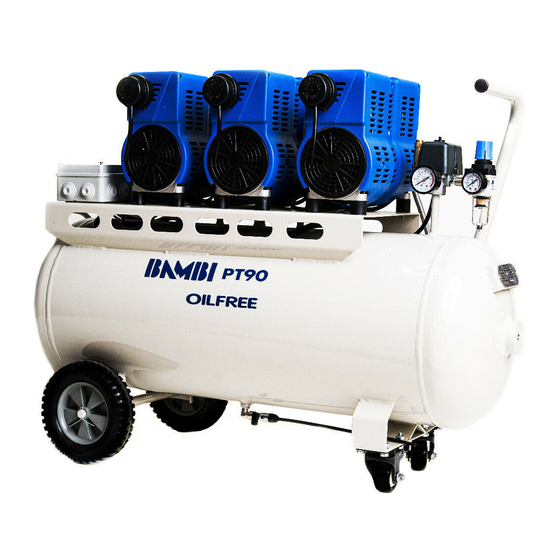

Bambi PT Series Operator's Handbook Manual
Hide thumbs
Also See for PT Series:
- Operator's handbook manual (9 pages) ,
- Operator's handbook manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bambi PT Series
Summary of Contents for Bambi PT Series
- Page 1 PT Range Operators Handbook PT models Covering Models:- PT5 / PT15 / PT24 / PT50 BAMBI AIR LTD 152 Thimble Mill Lane Heartlands Birmingham B7 5HT Tel: 0121 322 2299 Fax: 0121 322 2297 Email: sales@bambi-air.co.uk www.bambi-air.co.uk...
-
Page 2: Technical Specification
Bambi reserves the right to modify the contents of this operating booklet without notice and the information is in no way binding on the company. -
Page 3: Safety Precautions
1) Safety Precautions 2) Siting The Compressor What you must do: What you must do: • Read these instructions before using • Provide adequate protection from the your air compressor. weather. • Ensure the compressor has been • Site the compressor level in both installed, electrically connected... -
Page 4: Operation
Operation NOTE! Please ensure that the pump motor filter is screwed in before operating the compressor. Fit with intake tube pointing down Installing airline: The airline should be fitted to the Filter regulator outlet “A” Starting & Stopping Plug the compressor into an outlet socket of nominal voltage. All models: Switch the compressor on by turning the red control on top of the pressure switch to the “Auto”... -
Page 5: Routine Maintenance
Routine Maintenance Draining the Air Receiver Drain water condensate from air receiver at a pressure of no more than 2 Bar. Slowly open the drain tap provided to allow water to flow out. Close drain tap when all water has drained off. Draining the Filter/Regulator Unit Slowly open the drain screw provided to allow water to flow out. - Page 6 Ref No. Description Part no. Regulator BPB1080 Pump motor BPB1238 40mm line pressure gauge BPB1077 Pump motor filter BPB1259 Elbow M/F BPB1139 Pump motor filter element BPB1263 Foot BPB1295 Frame BPB1262 50mm tank pressure gauge BPB1081 Motor support BPB1261 Delivery pipe BPB1258 Elbow BPB1257...
- Page 7 PT 15 / 24 40mm line pressure gauge BPB1077 Ref No. Description Part no. Elbow M/F BPB1139 Pump motor BPB1238 Elbow BPB1257 Pump motor filter BPB1259 Connector BPB0810 Pump motor filter element BPB1263 50mm tank pressure gauge BPB1081 Tank [PT15] BPB0470 Delivery pipe BPB1258...
- Page 8 PT50 Ref No. Description Part no. Siphon tube BPB0028 Pump motor BPB1238 Connector BPB0152 Pump motor filter BPB1259 50mm tank pressure gauge BPB1081 Pump motor filter element BPB1263 Delivery pipe BPB1258 Tank BPB0474 Connector BPB1242 Inspection plug BPB0243 Tee piece MMM BPB1239 Inspection plug seal BPB0502...
- Page 9 PT Pump spares Ref No. Description Part no. Cylinder head seal BPB1250 Valve plate assembly BPB1251 Cylinder BPB1253 Piston ring BPB1254 Airway tube, inc. O ring seal BPB1252 Motor fan LH BPB1255 Motor fan RH BPB1264 Fan cover BPB1256 Air intake filter BPB1259...
- Page 10 Notes...
- Page 11 SERVICE RECORD Date installed____________________________ Date Maintenance work Signature / Company SERVICE KITS BPPT 1 Service Kit covers all models. PT50 requires two kits.
- Page 12 BAMBI AIR LTD 152 Thimble Mill Lane - Heartlands - Birmingham B7 5HT Tel: 0121 322 2299 - Fax: 0121 322 2297 - Email: sales@bambi-air.co.uk - www.bambi-air.co.uk EC Declaration of Conformity - Declaration de Conformite CE – EG Konformitatserklarung Declaracion de Conformidad CE - EG Verklaring van Overeenstemming Bambi Air Ltd declares that this product conforms to the European Directives listed below.
