Section 6 | Technical Diagrams and Troubleshooting

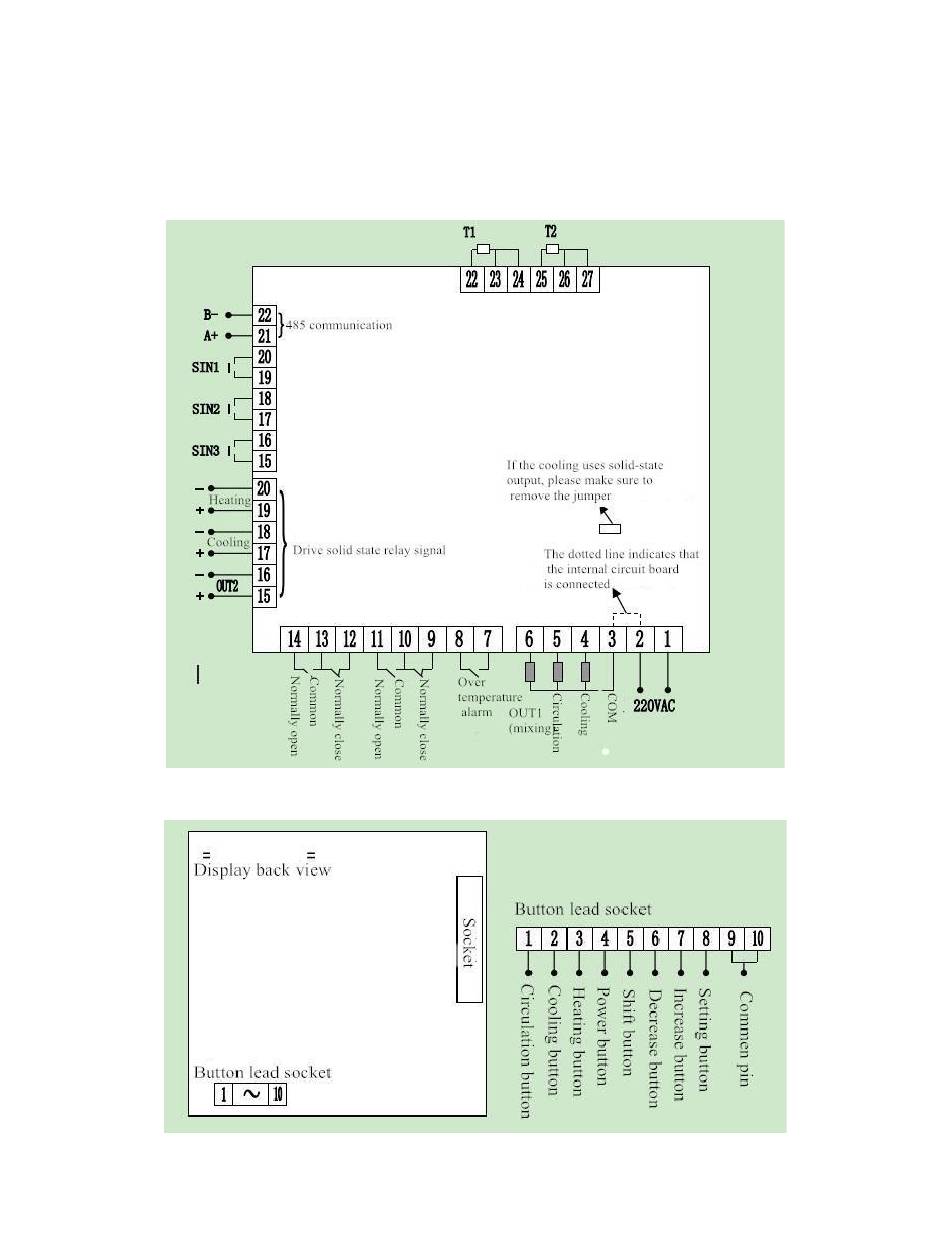

6.1 Circuit Board Diagrams
Main Board
Display Board
