Section 4 | Preparing for installation

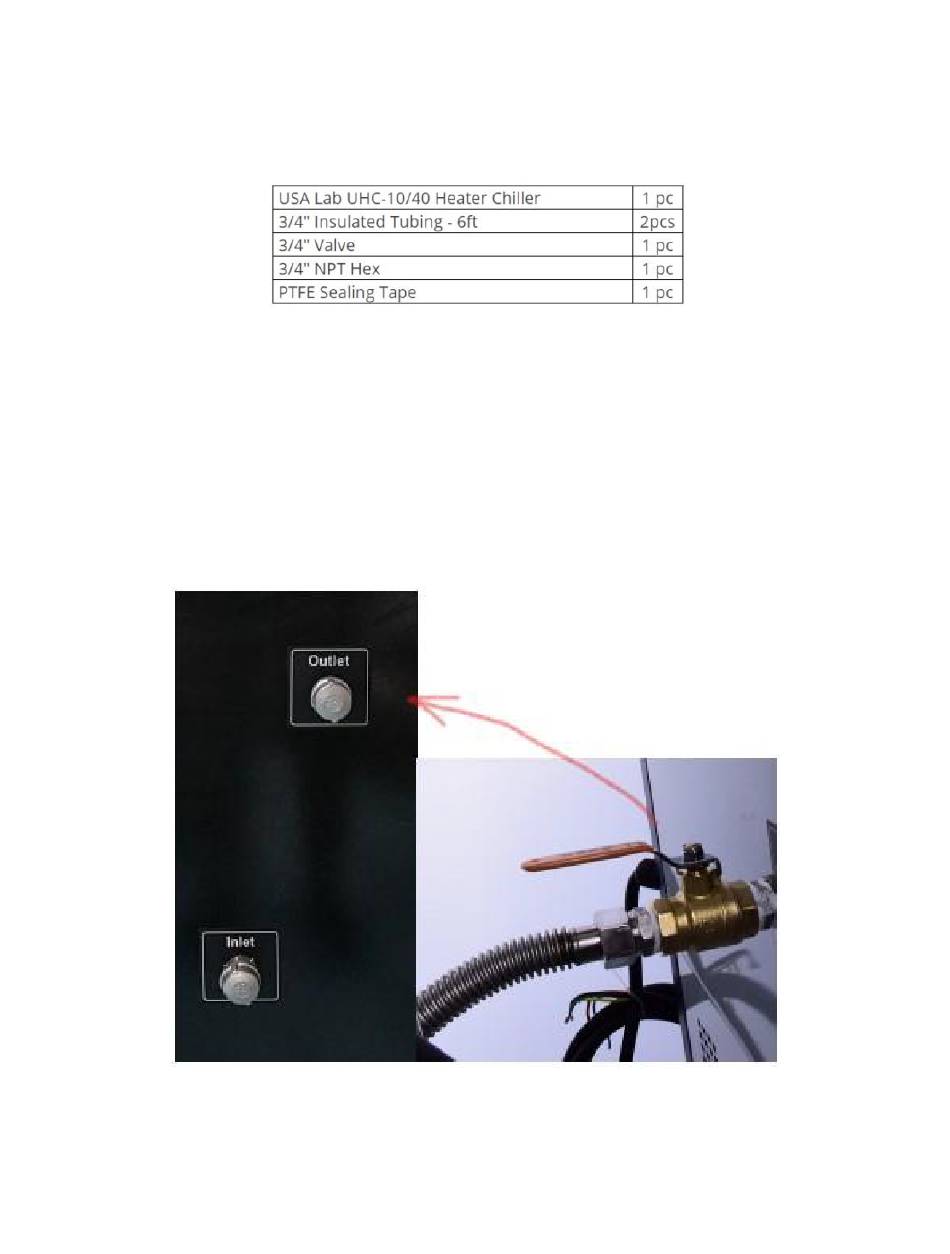

4.1 Included Items

If you are missing any items contact us.
4.2 Thermal Transfer Fluids
Recommended: High performance silicone oil (-40°C – 200°C)
Alternative: Propylene Glycol + Distilled Water | Ratio: PG 60% : DW 40% (-40°C – 110°C)
Do Not Use Automotive Anti-freeze, it contains additives that have been known to corrode heat
exchangers and remove the nickel plating.
Do Not Use Tap, De-Ionized, or Reverse Osmosis Water, as it can cause rusting of internal metal parts.

4.3 Tubing Connections

Install the ball valve onto the outlet port of the chiller. Then connect the ¾" MNPT x ¾" MNPT fitting
onto the end of the ball valve. Ensure both the outlet port and the fitting have PTFE thread tape on the
threads no less than 4 wraps. (ball valve and fitting included in the manual pouch)
13
