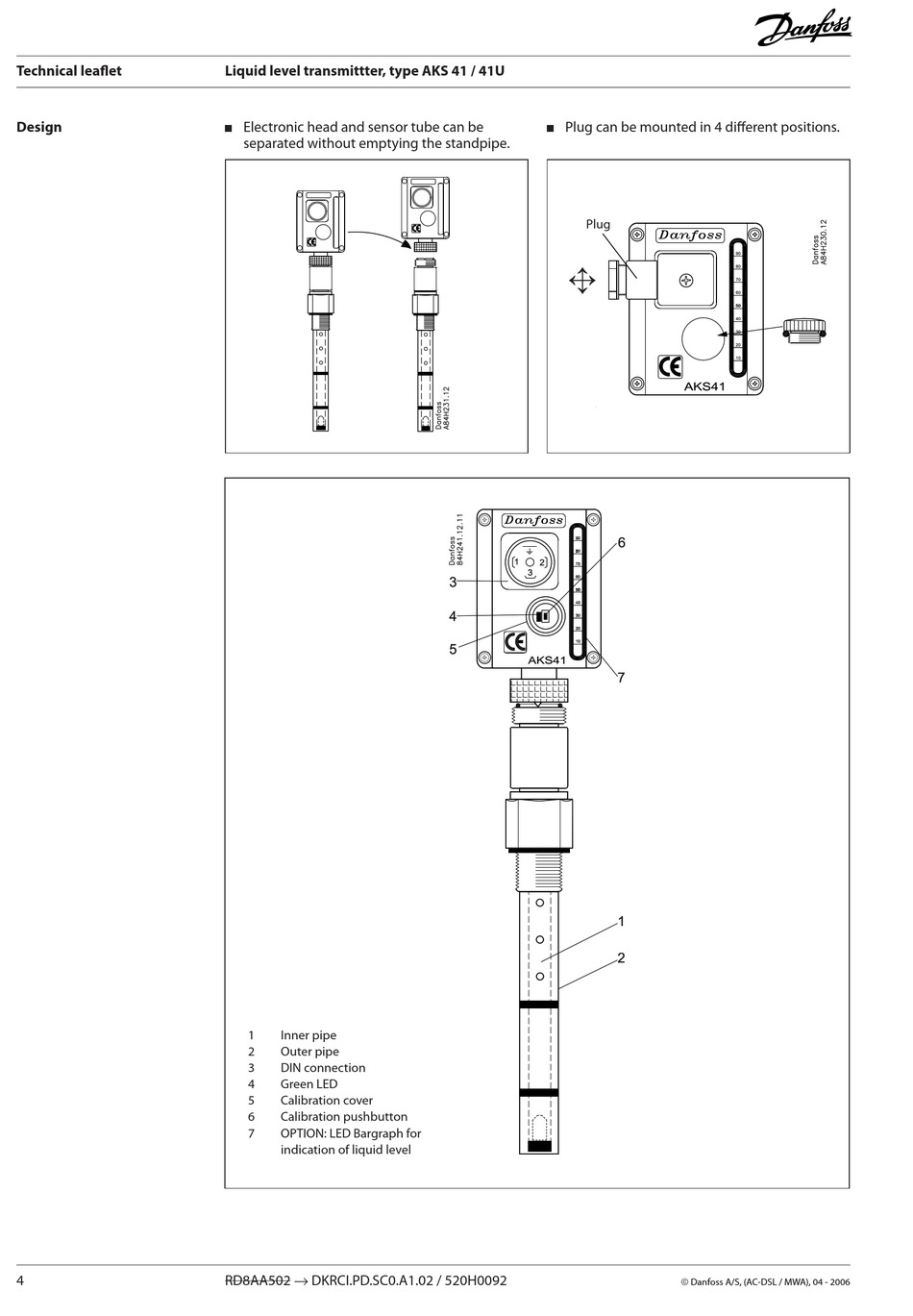

Technical leaflet
Design
4
Liquid level transmittter, type AKS 41 / 41U
Electronic head and sensor tube can be
separated without emptying the standpipe.
1
Inner pipe
Outer pipe
3
DIN connection
4
Green LED
5
Calibration cover
6
Calibration pushbutton
7
OPTION: LED Bargraph for
indication of liquid level
RD8AA50 → DKRCI.PD.SC0.A1.0 / 50H009
Plug can be mounted in 4 different positions.
Plug
Danfoss A/S, (AC-DSL / MWA), 04 - 006
